ADXL180
Offset Drift Monitoring
Cumulative offset drift is monitored during the normal
operation of the ADXL180. Offset drift monitoring occurs at
the same rate as auto-zero but runs independent of whether
auto-zero is enabled or disabled. An offset error is flagged if the
offset correction exceeds the maximum specified value. The
g-
SENSOR
TRANSMISSION PERIOD
BESSEL 10-BIT
LP FILTER ADC
DIGITAL
FILTER
FAST/SLOW

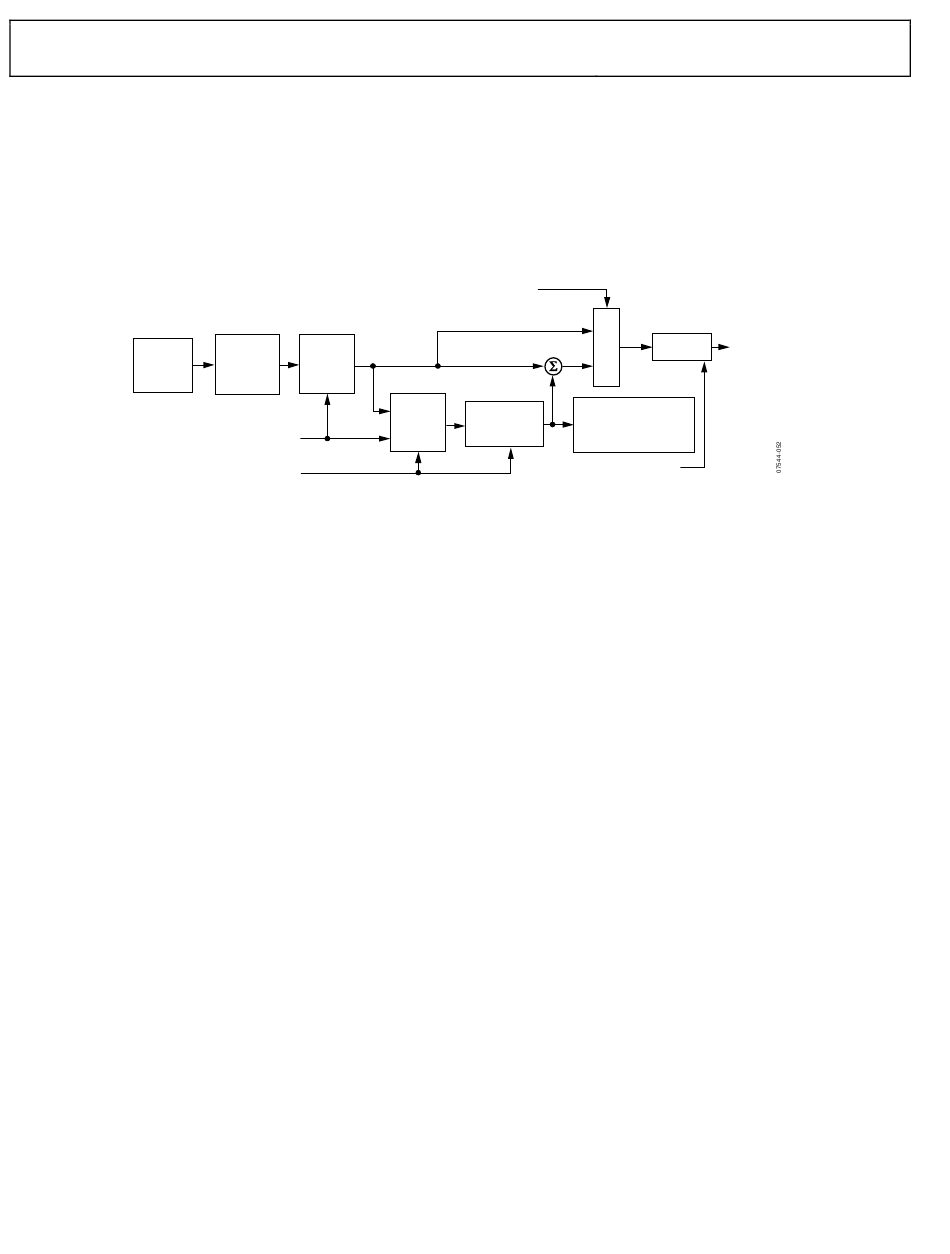

Figure 30. Auto-Zero Signal Path
appropriate error code is sent in the next data frame transmitted
to the control module (see the Offset Error/Offset Drift
Monitoring section). This message is sent continuously until
power to the ADXL180 is removed. The error status clears on
the next power-on-reset.
