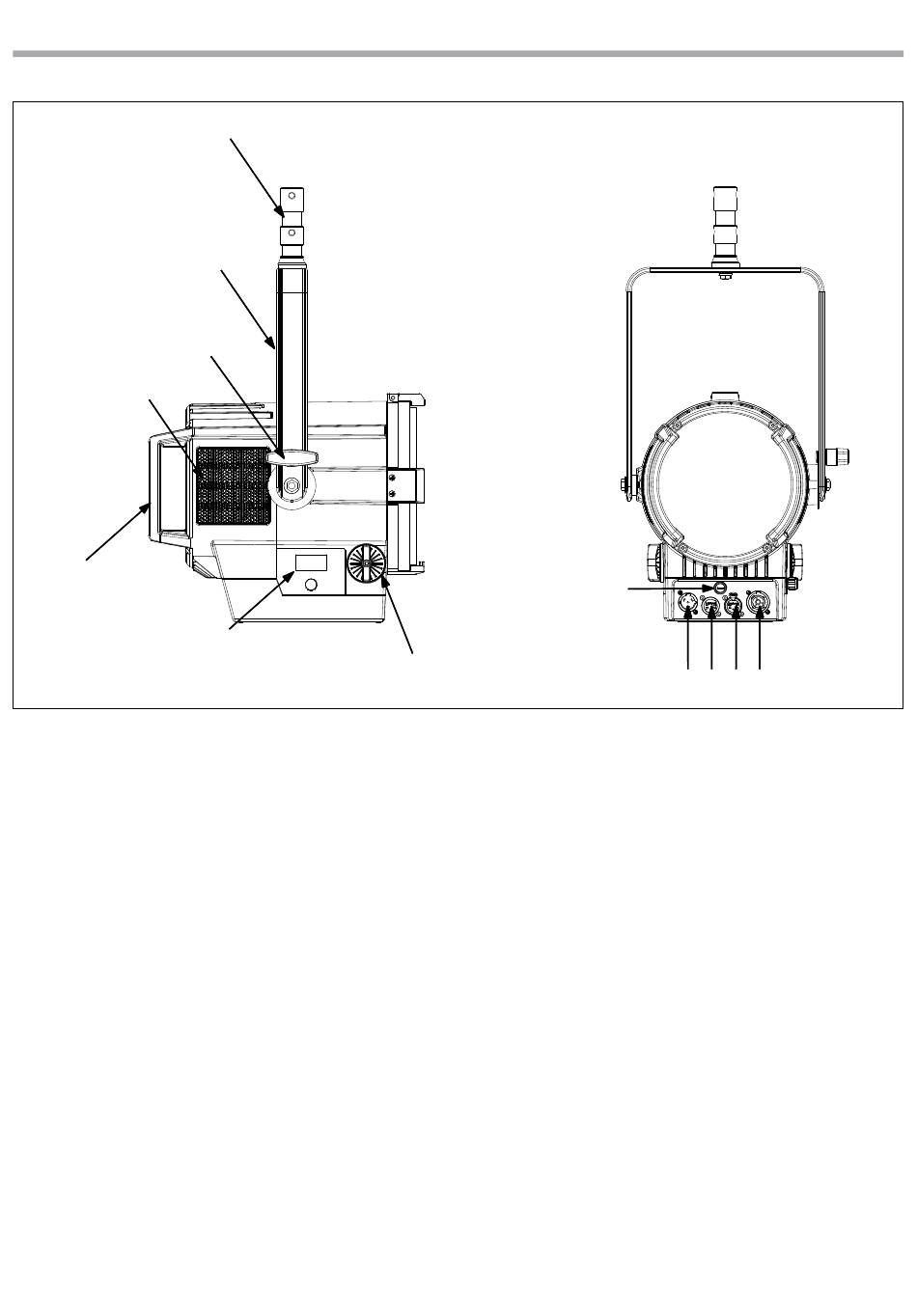

1.2 OPERATING ELEMENTS AND CONNECTIONS

1 1
5 5
1. AIR OPENING
2. LOCKING KNOB for mounting bracket
3. MOUNTING BRACKET
4. TRACK-ADAPTER(optional)
5. HANDLE
6. CONTROL PANEL with display and 1 button
used to access the control panel functions
and manage them
7. FOCUS AND ZOOM ADJUSTING SCREW to
zoom the projected image clearly
8. MAIN FUSE HOLDER: replace a burnt-out fuse
by one of the same type only
9. POWER IN (PowerCON IN): for connection to a
socket (100-240V~/50-60Hz) via the supplied
mains cable.
10. DMX IN (5-pole XLR): 1 = ground, 2 = DMX-, 3
= DMX+, 4 N/C, 5 N/C
11. DMX OUT (5-pole XLR): 1 = ground, 2 = DMX-,
3 = DMX+, 4 N/C, 5 N/C
12. POWER OUT (PowerCON OUT): power output
for connection of multiple units in series.
ECLIPSEFRESNELTU-DY
4
3
2
6
7
ECLIPSEFRESNEL
8
9 10 11 12
5
Fig.2
