Software description
This screen displays the current VBUS power: voltage and current, and calculated power.
This screen displays all source power profiles. The user scrolls the list via the joystick. In
case of standalone sink mode, he may request a dedicated power profile using the joystick
(center click on the desired profile)
This screen displays the sink profiles. This information is retrieved only in standalone sink
mode, because a dedicated command (get sink capabilities) is sent by the G0 disco
application. No actions or selection may be triggered here on a distant sink profile.
On this screen, the user may execute the displayed commands using the joystick. (center to
select). He may scroll up or down to access all possible actions.
This screen displays the current G0 Discovery demonstration version.
We remind the user that the STM32CubeMonitor USB Type-C PD tool application may be
run on a PC to get more details about the USBPD protocol messages that are exchanged.
See chapter 5.2.4.
5.2.4

STM32CubeMonitor USB Type-C PD tool with G0 Discovery kit

We recommend to always plug the micro USB cable so that the disco is powered on, and
have the possibility to see the details on the USBPD protocol exchanges.
In case of spy mode, as no action may be requested using the G0 disco, only the trace is
available.
22/30

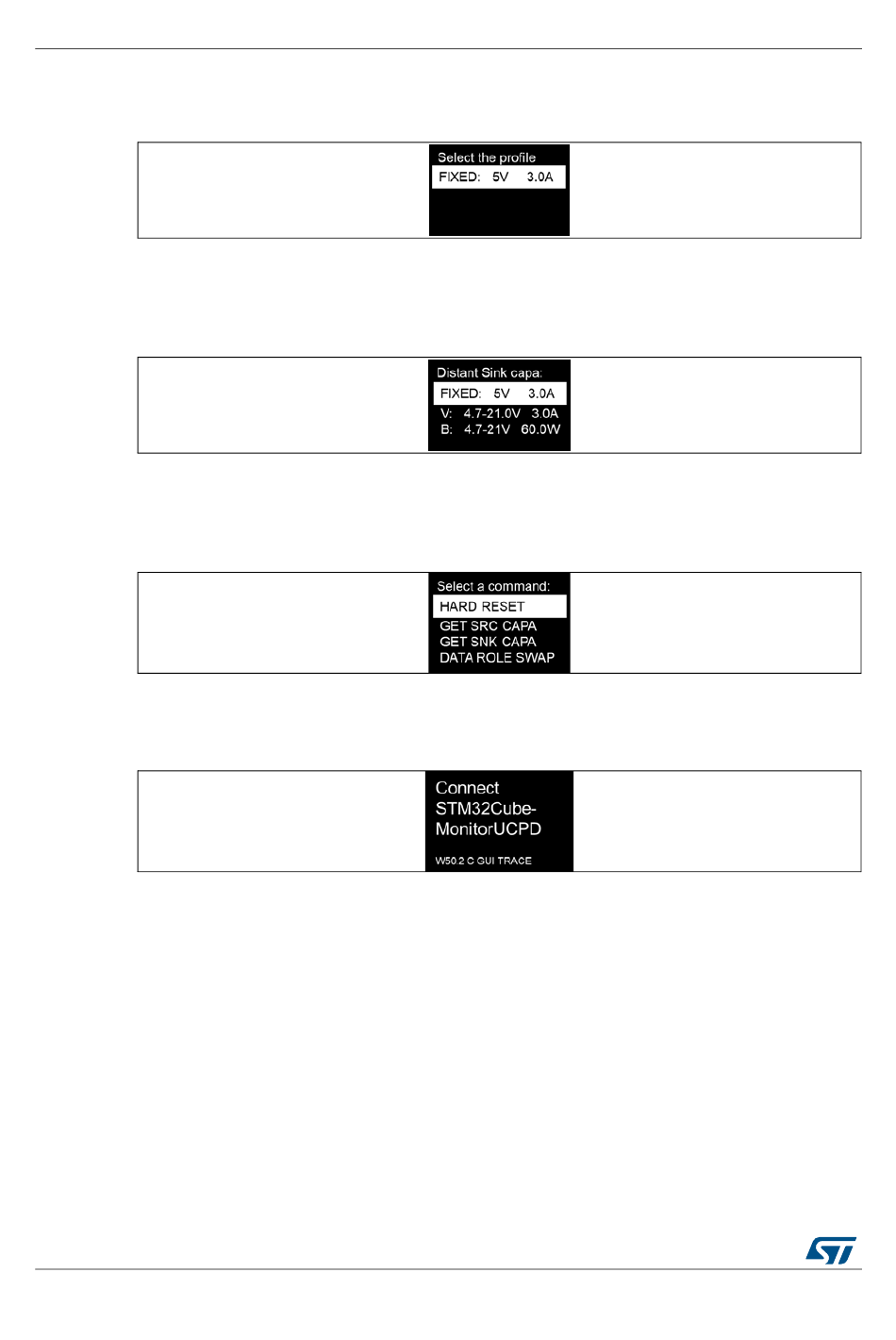

Figure 24. Source profile screen

Figure 25. Distant Sink profile screen (only standalone mode)

Figure 26. Action screen (only standalone mode)

Figure 27. Version screen
