Demonstration functional description

2 Demonstration functional description
2.1

Demo startup

2.1.1

Normal processing

If the STM32G071B-DISCO is powered from the micro USB, after a board reset, at demo
startup the welcome screen is displayed.
2.2

UCPD demonstration

2.2.1

Mode selection

Depending on the position of the switch, the analyzer may run in two modes:
2.2.2

LED indications

The mode selection is confirmed by the LED LD6:
12/30

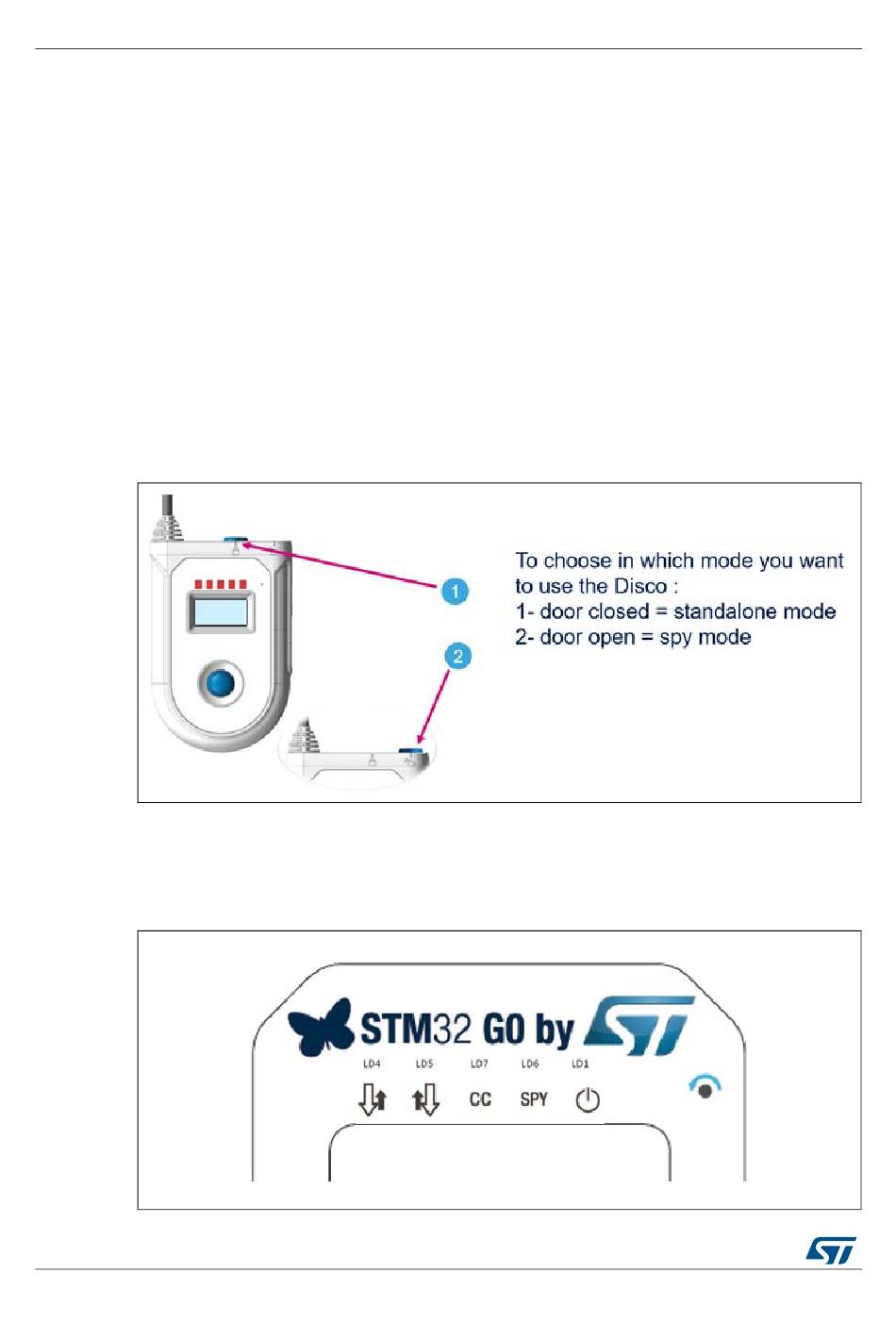

Figure 7. Mode selection

Figure 8. LED indications
