UM2546 Software description

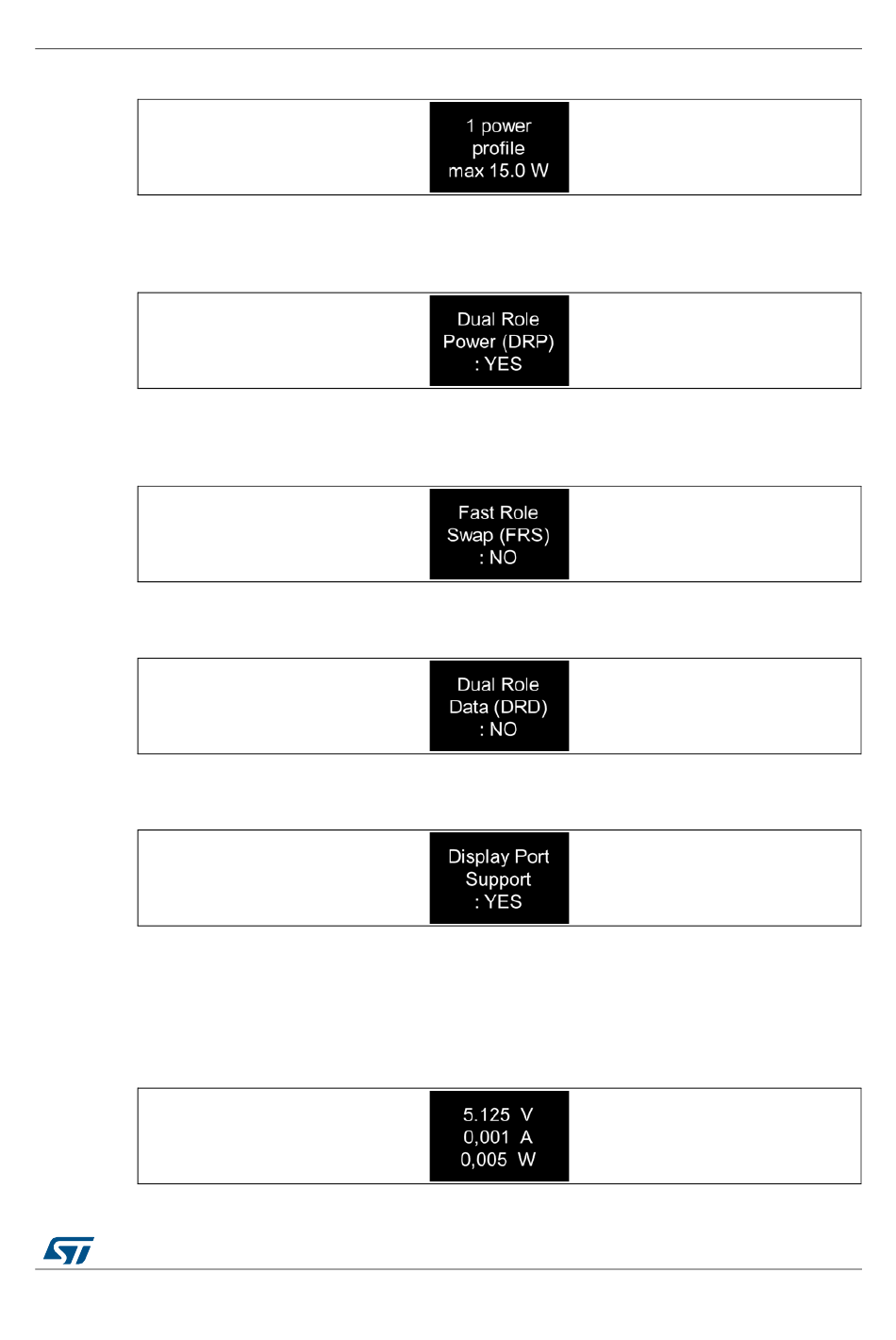

Figure 18. Power screen

When the source capabilities are seen over the CC lines, the maximum power profile is
displayed.

Figure 19. Power role screen

This screen will indicate if the power role swap is supported by the connected source
device.

Figure 20. Fast role swap screen

This screen will indicate if the connected source device supports fast role swap.

Figure 21. Data role screen

This screen will indicate if the connected source device supports data role swap.

Figure 22. Display Port screen (only standalone mode)

If the source is capable of using the super speed lines to send display port video signal, the
information is displayed. This screen also displays if Thunderbolt capability is available. This
information is gathered only in standalone sink mode, because the G0 issues a Discovery
identity message. In some case, the source may not respond to this message, and therefore
no information may be retrieved.

Figure 23. Power delivery information screen
