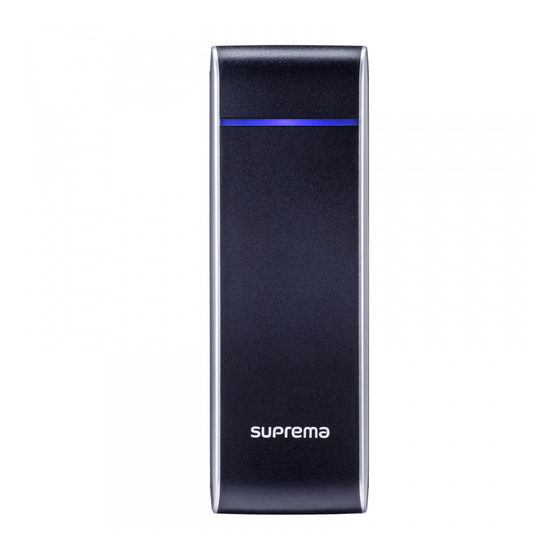

suprema Xpass Manual

suprema Xpass Manual

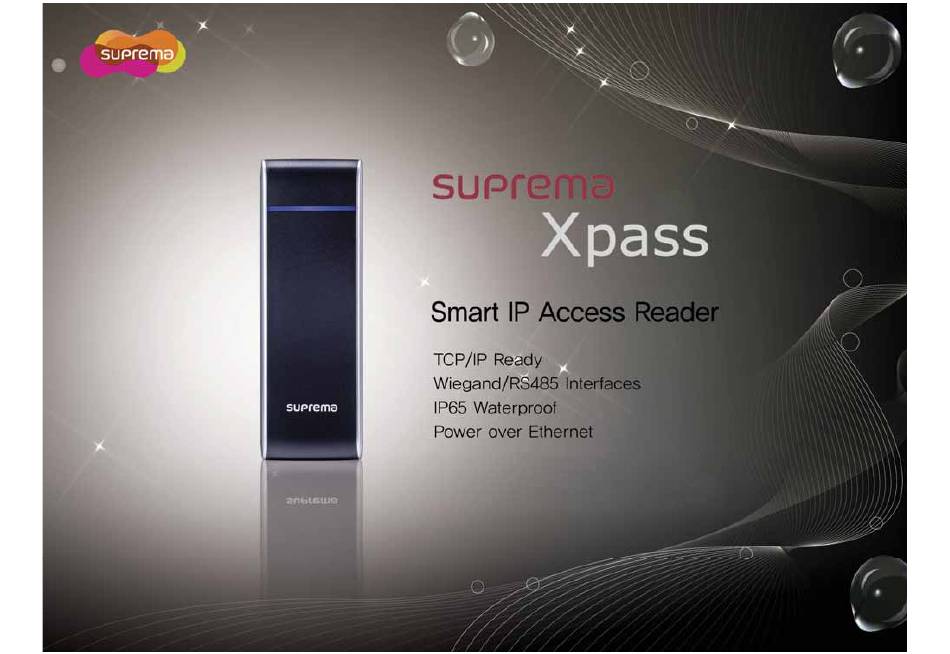

Smart ip access reader
Hide thumbs Also See for Xpass:

Advertisement

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Xpass and is the answer not in the manual?

Questions and answers

Summary of Contents for suprema Xpass

  • Page 2: Table Of Contents

    Contents Safety precautions Product components Optional accessories Names of each parts Product Dimension Cables and Connectors Power Connection LAN Connection RS485 Connection Relay Connection Digital Input Connection Wiegand Input/Output Output Installation of Wall-mount Bracket Installation Reference Specification Electrical Specification FCC Rules...
  • Page 3: Safety Precautions

    Safety precautions Do not install the device in a Do not place the device next place subject to direct sun to heating equipments. light, humidity, dust or soot. Do not place a magnet In cleaning, do not splash near the product. water on the device but wipe it out with smooth cloth or towel.
  • Page 4 Safety precautions Do not drop the device. Do not disassemble, repair or alter the device. The warranty does net apply to any product damage cause by an arbitrary installation or repair. Do not let children touch the Do not use the device for device without supervision.
  • Page 5: Product Components

    Product components Basic components Xpass bracket Extended Ethernet Cable Wall mounting screws Knife Blocks Shrinkable Tubes Software CD (2 ea) (2 ea) The components shown above may differ depending on the installation environment.
  • Page 6: Optional Accessories

    Optional accessories Secure I/O Plastic stand Extended bracket adaptor...
  • Page 7: Names Of Each Parts

    Names of each parts...
  • Page 8 LED status...
  • Page 9 ’ ’ ’...
  • Page 10: Product Dimension

    Product Dimension (unit : mm) < Front View > < Side View > < Bracket > < Extended bracket >...
  • Page 11: Cables And Connectors

    Cables and Connectors Pin Name Color 485 GND White (black string) Wiegand-GND Black 485 - Yellow (black string) Wiegand-1 White 485 + Blue (white string) Wiegand-0 Green Input-1 Brown Relay Open Gray (white string) Input-GND Gray Relay Com Green (white string) Input-0 Purple Relay Close...
  • Page 12 Cables and Connectors Cable Specification Pin Name Color RLY NC Orange (black string) Relay RLY COM Green (white string) RLY NO Gray (white string) WGD D0 Green Wiegand WGD D1 White WGD GND Black IN 0 Purple Switch IN 1 Brown IN GND Gray...
  • Page 13 LAN cable Pin Name Color Yellow Blue Orange Pink black string) black string) Brown (white string) Brown (white string) Ethernet extension cable Modular Jack (A) Connector (B) Pin Name Color Blue Orange Black Yellow Green Brown Gray...
  • Page 14: Power Connection 1

    Power Connection 1 Pin Name Color POWER IN+ POWER IN- Black (white string) Recommended power supply 10%, at least 500mA. Comply with standard IEC/EN 60950-1. To share the power with other devices, use a power supply with higher current ratings.
  • Page 15 Power Connection 2 Recommended power supply Please use the distance of LAN cable within 100m in case of POE power.
  • Page 16: Lan Connection

    LAN Connection...
  • Page 17 LAN Connection (Direct connection with PC)
  • Page 18: Rs485 Connection

    RS485 Connection for Host Communication Pin Name Color 485 GND White (black string) 485 - Yellow (black string) 485 + Blue (white string)
  • Page 19 RS485 Connection for Secure I/O Pin Name Color 485 GND White (black string) 485 - Yellow (black string) 485 + Blue (white string) Max number of devices Maximum eight(8) devices (including Master) interworks in an RS485 loop.
  • Page 20: Relay Connection

    Relay Connection – Fail safe lock Pin Name Color RLY COM Green (white string) RLY NC Orange (black string)
  • Page 21 Relay Connection – Fail secure lock Pin Name Color RLY NO Gray (white string) RLY COM Green (white string)
  • Page 22 Relay Connection - Automatic door Pin Name Color RLY NO Gray (white string) RLY COM Green (white string)
  • Page 23: Digital Input Connection

    Digital Input Connection (Alarm, Emergency S/W) Pin Name Color IN 1 Brown IN GND Gray IN 0 Purple...
  • Page 24 Digital Input Connection (RTE, Door sensor) Pin Name Color IN 1 Brown IN GND Gray IN 0 Purple...
  • Page 25: Wiegand Input/Output

    Wiegand Input/Output Wiegand Input Pin Name Color WGD GND Black WGD D1 White WGD D0 Green Wiegand Output Pin Name Color WGD GND Black WGD D1 White WGD D0 Green...
  • Page 26: Output

    Output Pin Name Color RLY COM Green (white string) RLY NC Orange (black string) PWR OUT + Light Blue PWR OUT - Black (white string) Caution : Max. 700mA is supplied using adapter for the external output. Be careful to satisfy the power capacity in use.
  • Page 27: Installation Of Wall-Mount Bracket

    Installation of Wall-mount Bracket Fix wall mount bracket on a wall using Hook Xpass on the wall mount bracket wall mounting screws Fix Xpass and wall mounting bracket using a wall mounting screw.
  • Page 28 Installation Reference 1 - Stand alone...
  • Page 29: Installation Reference

    Installation Reference 2 – Standalone (Secure)
  • Page 30 Installation Reference 3 – Network...
  • Page 31: Specification

    Specification 32 bit Micro-processor Memory 8MB FLASH + 16MB SDRAM 13.56 MHz Mifare (XPM) RF Card 125 KHz EM Prox (XPE) 125 KHz HID Prox (XPH) User Capacity 40000 user Log Capacity 50000 log Network interfaces TCP/IP, RS485 IP Rate IP 65 class Sound Multi-tone buzzer...
  • Page 32: Electrical Specification

    Electrical Specification Min. Typ. Max. Notes Power Voltage (V) 10.8 13.2 Use regulated DC power adaptor only Current (mA) Switch Input VIH (V) VIL (V) Pull-up resistance ( ) 4.7k The input ports are pulled up with 4.7k resistors TTL/Wiegand Output VOH (V) VOL (V) The outputs ports are open drain type, pulled up with 4.7k...
  • Page 33: Fcc Rules

    FCC Rules Changes or modifications not expressly approved by the manufacturer Caution responsible for compliance could void the user’s authority to operate the equipment. This device complies with part 15 of the FCC Rules. Operation is subject to the Warning following two conditions: (1) This device may not cause harmful interface, and (2) this device must accept any interface received, including interference that may cause undesired operation.
