www.supremainc.com

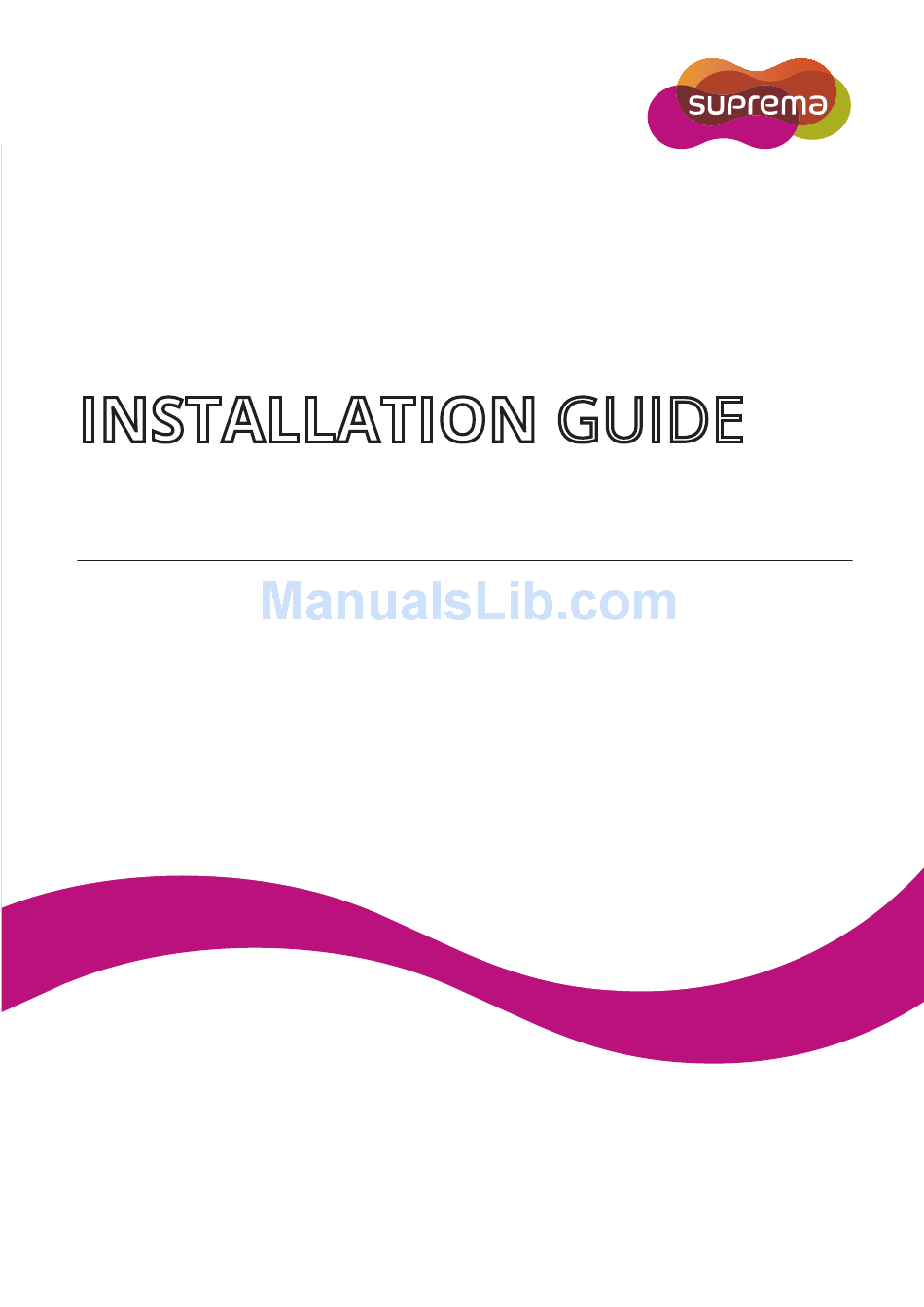

INSTALLATION GUIDE
BioEntry W
English
Version 2.10
EN 101.00.BEW V2.10A

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BioEntry W and is the answer not in the manual?

Questions and answers

Summary of Contents for suprema BioEntry W

  • Page 1 INSTALLATION GUIDE BioEntry W English Version 2.10 EN 101.00.BEW V2.10A...
  • Page 2: Table Of Contents

    Contents Safety Instructions ..................3 Getting Started ....................4 Components ..............................4 Features ................................5 Part names and features ..............................5 Cables and connectors................................. 6 How to Scan a Fingerprint.......................... 7 Choosing a finger for registration ..........................7 How to register a fingerprint ............................7 Installation ......................
  • Page 3: Safety Instructions

    If installing the product outside where the product is completely exposed, it is recommended to install the product together with the enclosure. Use a separate power supply for Secure I/O 2, electric lock and BioEntry W respectively. • If connecting and using the power supply to these devices together, the devices may malfunction.
  • Page 4: Getting Started

    Getting Started Getting Started Components Mounting screws for Mounting screws for Software CD bracket (2 pcs) product (2 pcs) Bracket Diode Adapter BioEntry W Note The components may differ depending on where the product is installed.
  • Page 5: Features

    Getting Started Features Part names and features LED lamp RF card touch area Cable LED status indicator for Net work Fingerprint reader Network reset button Name Feature • Green: Authentication success • Red: Authentication failure • Pink: Reading card or fingerprint •...
  • Page 6: Cables And Connectors

    Getting Started Cables and connectors Name Color TTL IN1 Brown TTL IN0 Purple ENET TXP White ENET TXN Orange ENET RXP Black ENET RXN Yellow PWR +VDC PWR GND Black Blue Brown Green 485 TRXN Yellow (White stripe) 485 TRXP Blue (White stripe) 485 GND Black (White stripe)
  • Page 7: How To Scan A Fingerprint

    If a finger is lifted up, not placed at the center, or only part of the finger is placed on the fingerprint reader, the finger may not register. Precautions for reading a fingerprint BioEntry W can read fingerprints regardless of the change in seasons or condition of the fingers. However, the external environment or the finger's placement can affect the recognition rate.
  • Page 8: Installation

    With the mounting screws for the bracket, mount the bracket firmly onto the surface where BioEntry W is to be installed. Note If BioEntry W should be installed onto a concrete wall, make a hole with a drill, and then insert a PVC anchor into the hole before screwing the mounting screw.
  • Page 9: Connecting To Power

    (1,500 mA) and other devices. • Use a separate power supply for Secure I/O 2, electric lock and BioEntry W respectively. If connecting and using the power supply to these devices together, the devices may malfunction.
  • Page 10: Connecting To A Network

    A normal CAT-5 cable can be used to connect to a hub. BioEntry W LAN connection (connecting directly to a PC) BioEntry W can be connected directly to a PC by using a normal type CAT-5 cable because it supports an automatic MDI/MDIX function. BioEntry W...
  • Page 11: Connecting To An Door Button/Door Sensor

    Digital input connection (Door button, Door sensor) - TTL IN1 Brown - TTL IN0 Purple 13 - 485 GND Black (White stripe) Door sensor BioEntry W Door button Digital input connection (Alarm, Emergency switch) - TTL IN1 Brown - TTL IN0 Purple 13 - 485 GND...
  • Page 12: Connecting To A Relay

    Install the diode close to the door lock device. • Use a separate power source for BioEntry W from the door lock device. Fail Secure Lock To use fail secure lock, connect N/O terminal as shown below. Normally, there is no current flowing through the relay and the door is opened when the relay is activated by a current flows.
  • Page 13: Connecting To An Automatic Door

    Automatic door Controller Door Lock 19 - RLY COM Green (White stripe) 20 - RLY NO Gray (White stripe) BioEntry W Connecting as a standalone - TTL IN1 Brown - TTL IN0 Purple 13 - 485 GND Black (White stripe)
  • Page 14: Connecting To Secure I/O 2

    Yellow (White stripe) 12 - 485 TRXP Blue (White stripe) 13 - 485 GND Black (White stripe) Input 1 Door sensor BioEntry W Input 0 Door button Secure I/O 2 Door Lock Connecting as a Wiegand device 14 - WG GND...
  • Page 15: Resetting Network Settings

    Installation Resetting Network Settings Turn the power on. Press the network reset button on the rear of device until the device restart automatically. Connect the device with default values. • TCP/IP address: 192.168.0.1 • Server mode: Not checked • RS-485: PC connection, 115200 bps Change the TCP/IP address or RS-485 information.
  • Page 16: Product Specifications

    Product Specifications Product Specifications Category Feature Specification Biometric Fingerprint IP Rating IP 65 Main RF Card 125KHz HID Prox, 13.56MHz Mifare/DESFire, 13.56MHz iCLASS SE/Felica Multi-Controller Max. User (1:1) 5,000 Max. User (1:N) 5,000 Capacity Max. Template (1:1) 10,000 Max. Template (1:N) 10,000 Max.
  • Page 17: Dimensions

    Product Specifications Dimensions (Unit: mm) Front view Side view Bracket...
  • Page 18: Fcc Compliance Information

    FCC Compliance Information FCC Compliance Information THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules.
  • Page 19: Appendix

    This document provides the information pertaining to Suprema's products. • The right of use is granted only to the products that are covered by the sales agreement and conditions guaranteed by Suprema. Any license of intellectual property that is not dealt within this document is not granted.
  • Page 20 www.supremainc.com www.supremainc.com...
