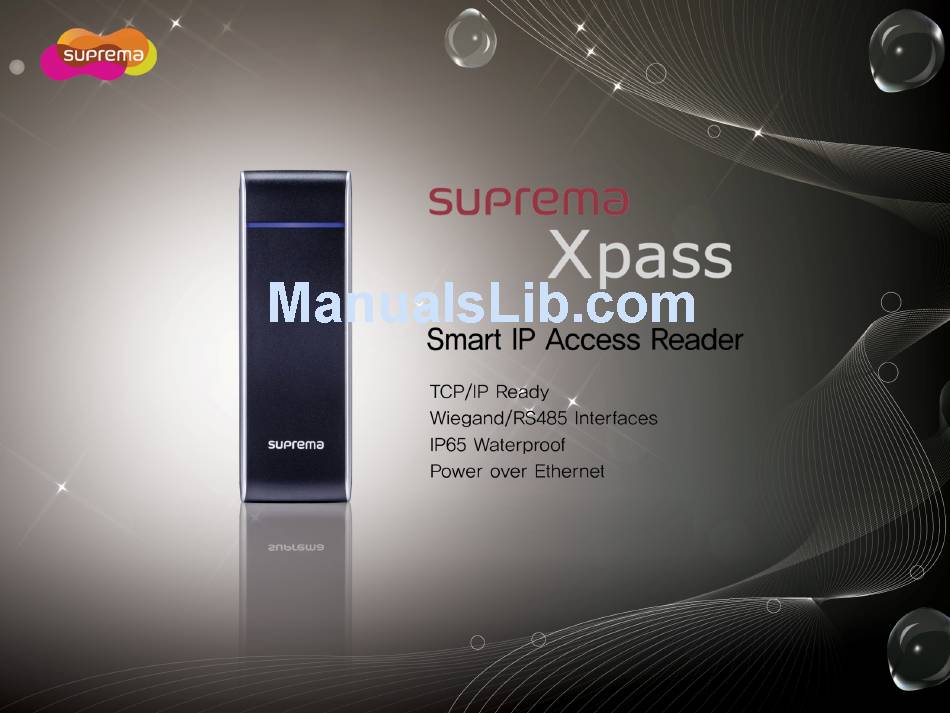

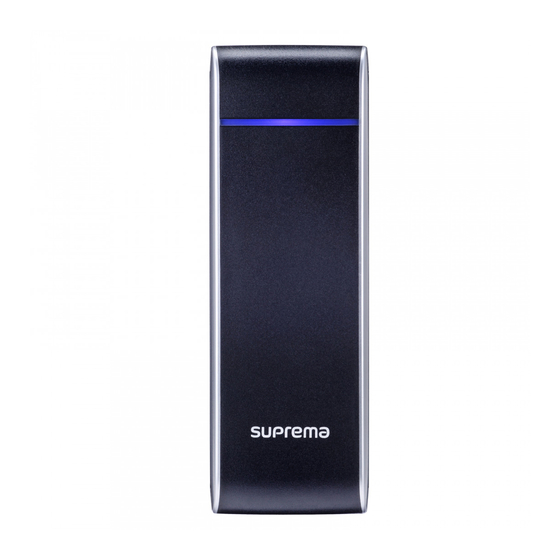

suprema Xpass Manual

Smart ip access reader, tcp/ip ready, wiegand/rs485 interfaces, ip65 waterproof, power over ethernet

Hide thumbs Also See for Xpass:

Installation manual (19 pages)

Manual (34 pages)

Manual (34 pages)

Table Of Contents

Table of Contents

Quick Links

Need help?

Do you have a question about the Xpass and is the answer not in the manual?

Questions and answers

Summary of Contents for suprema Xpass

Page 1 EN 102.00.XP V1.21...
Page 2: Table Of Contents
Contents Safety Precautions Product Components Optional Accessories Product Description Product Dimension Cables and Connectors Power Connection LAN Connection RS485 Connection Relay Connection Digital Input Connection Wiegand Input/Output External Power Output Installation of Wall-mount Bracket Installation Reference Specification Electrical Specification FCC Rules...
Page 3: Safety Precautions
Safety Precautions Do not install the device in a Do not place the device next place subject to direct sun to heating equipments. light, humidity, dust or soot. Do not place a magnet When cleaning, do not splash near the product. water on the device but wipe it out with a smooth cloth or towel.
Page 4 Safety Precautions Do not drop the device. Do not disassemble, repair or alter the device. The warranty does net apply to any product damage cause by an arbitrary installation or repair. Do not let children touch the Do not use the device for device without supervision.
Page 5: Product Components
Product Components Basic Components Xpass Bracket Extended Ethernet Cable Wall Mounting Screws Knife Blocks Shrinkable Tubes Software CD Diode (2 ea) (2 ea) (1 EA) The components shown above may differ depending on the installation environment.
Page 6: Optional Accessories
Optional Accessories Secure I/O Plastic stand Extended Bracket Adaptor...
Page 7: Product Description
Product Description...
Page 8 LED status...
Page 9 Initialization of network setting When you install the Xpass or forget the network setting’s value of Xpass in use, can initial the network setting’s value (TCP/IP address, RS-485 setting) in the switch of Xpass’s back side as follows;...
Page 10: Product Dimension
Product Dimension (unit : mm) < Front View > < Side View > < Bracket > < Extended Bracket > -10-...
Page 11: Cables And Connectors
Cables and Connectors Pin Name Full Name Color 485 GND 485 GND White (black string) WG GND Wiegand-GND Black 485 TRXN 485 - Yellow (black string) WG D1 Wiegand-1 White 485 TRXP 485 + Blue (white string) WG D0 Wiegand-0 Green TTL IN1 Input-1...
Page 12 Cables and Connectors Cable Specification Cable Pin Name Color RLY NC Orange (black string) Relay RLY COM Green (white string) RLY NO Gray (white string) WG D0 Green Wiegand WG D1 White WG GND Black TTL IN0 Purple Switch TTL IN1 Brown TTL GND Gray...
Page 13 LAN cable LAN Connector Pin Name Color ENET RXN Yellow ENET RXP Blue ENET TXN Orange ENET TXP Pink Green (black string) Green (black string) Brown (white string) Brown (white string) Ethernet extension cable Modular Jack (A) Connector (B) Pin Name Color ENET TXP Blue...
Page 14: Power Connection 1
12V ± 10%, at least 1500mA. • • Comply with standard IEC/EN 60950-1. • Use a separate power supply for Secure I/O, electric lock and Xpass respectively. If connecting and using the power supply to these devices together, the devices may malfunction. -14-...
Page 15 Please read below carefully before you install this product. This is essential steps for stable operation. make sure to turn on the power of PSE only after connect all cables related to PoE ① Connect 8port Ethernet connect of Xpass body to Ethernet expansion cable in right direction ② Connect RJ45 modular from...
Page 16: Lan Connection
LAN Connection -16-...
Page 17 LAN Connection (Direct connection with PC) -17-...
Page 18: Rs485 Connection
RS485 Connection for Host Communication Pin Name Color 485 GND White (black string) 485 TRXN Yellow (black string) 485 TRXP Blue (white string) -18-...
Page 19 RS485 Connection for Secure I/O Pin Name Color 485 GND White (black string) 485 TRXN Yellow (black string) 485 TRXP Blue (white string) Max number of devices Maximum eight(8) devices (including Master) interworks in an RS485 loop. -19-...
Page 20: Relay Connection
Make sure to install the diode near to the door lock. • Make sure to use different power supplies for the Xpass and the door lock. • Make sure to install the diode at both ends of the circuit as shown in the figure above in order to protect the relay contact from the reverse current that occurs when the door lock works.
Page 21 Make sure to install the diode near to the door lock. • Make sure to use different power supplies for the Xpass and the door lock. • Make sure to install the diode at both ends of the circuit as shown in the figure above in order to protect the relay contact from the reverse current that occurs when the door lock works.
Page 22 Relay Connection - Automatic door Pin Name Color RLY NO Gray (white string) RLY COM Green (white string) -22-...
Page 23: Digital Input Connection
Digital Input Connection (Alarm, Emergency S/W) Pin Name Color TTL IN1 Brown TTL GND Gray TTL IN0 Purple -23-...
Page 24 Digital Input Connection (RTE, Door sensor) Pin Name Color TTL IN1 Brown TTL GND Gray TTL IN0 Purple Request to Exit -24-...
Page 25: Wiegand Input/Output
Wiegand Input/Output Wiegand Input Pin Name Color WG GND Black WG D1 White WG D0 Green Wiegand Output Pin Name Color WG GND Black WG D1 White WG D0 Green -25-...
Page 26: External Power Output
Xpass connected to PoE supports the external power output. • Be careful not to disconnect the power supply to Xpass when the external power output is connected to a door lock. Disconnecting the power supply to Xpass may cause security problems.
Page 27: Installation Of Wall-Mount Bracket
Installation of Wall-mount Bracket Fix wall mount bracket on a wall using Hook Xpass on the wall mount bracket wall mounting screws Fix Xpass and wall mounting bracket using a wall mounting screw. -27-...
Page 28: Installation Reference
Installation Reference 1 - Stand alone -28-...
Page 29 Installation Reference 2 – Standalone (Secure) -29-...
Page 30 Installation Reference 3 – Network -30-...
Page 31: Specification
Specification 32 bit Micro-processor Memory 8MB FLASH + 16MB SDRAM 13.56 MHz Mifare (XPM) RF Card 125 KHz EM Prox (XPE) 125 KHz HID Prox (XPH) User Capacity 40000 user Log Capacity 50000 log Network interfaces TCP/IP, RS485 IP Rate IP 65 class Sound Multi-tone buzzer...
Page 32: Electrical Specification
Electrical Specification Min. Typ. Max. Notes Power Voltage (V) 10.8 13.2 Use regulated DC power adaptor only Current Consumption (mA) Switch Input VIH (V) 10.0 VIL (V) Pull-up resistance (Ω) 4.7k The input ports are pulled up with 4.7k resistors TTL/Wiegand Output VOH (V) VOL (V)
Page 33: Fcc Rules
FCC Rules Changes or modifications not expressly approved by the manufacturer Caution responsible for compliance could void the user’s authority to operate the equipment. This device complies with part 15 of the FCC Rules. Operation is subject to the Warning following two conditions: (1) This device may not cause harmful interface, and (2) this device must accept any interface received, including interference that may cause undesired operation.
