- Page 1 2022/01/04 10:41 How to configure CoreStation with an external wiegand device Table of Contents How to configure CoreStation with an external wiegand device ............Relay work video ..........................- http://kb.supremainc.com/knowledge/...

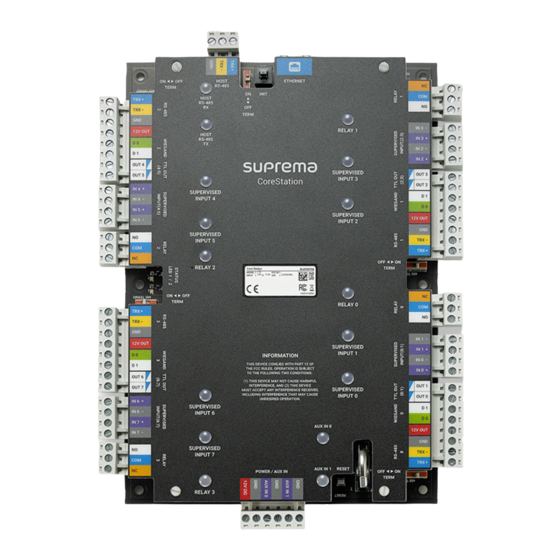

- Page 2 2022/01/04 10:41 How to configure CoreStation with an external wiegand device How to configure CoreStation with an external wiegand device *If you would like to get basic information about configuration of CoreStation, please refer to How to configure CoreStation In this article, you will be able to learn how to connect an external Wiegand device to CoreStations. And use it for certain operations such as authentication and entrance management with a door.
- Page 3 2022/01/04 10:41 How to configure CoreStation with an external wiegand device 3. When you find the correct manual for the Wiegand reader product that you use, you can also find its wiring diagram in it. Wire your Wiegand reader properly to CoreStation. 4.
- Page 4 2022/01/04 10:41 How to configure CoreStation with an external wiegand device 7. Click on added Wiegand Reader 2 and set the settings as you like. If you would like to control LED/Buzzer, you can set it to a certain output. - In this example, since Output 4 &...
- Page 5 2022/01/04 10:41 How to configure CoreStation with an external wiegand device 9. In the “Enroll Card” popup window, please set appropriate Wiegand settings according to the type of card that you will use. The device will scan the card to obtain its card ID information automatically. In our case 26-bit SIA Standard will be used as the card format.
- Page 6 11. Now let's take this a little bit further. Go to the Door menu and click on the “Add Door” button. Set its appropriate name (in this example we will call it “Suprema”). 1) Set the entry device as Wiegand Reader 2) Set Door Relay as Relay 2 3) Set Exit Button and Door Sensor to Supervised Inputs 4&5...
- Page 7 2022/01/04 10:41 How to configure CoreStation with an external wiegand device 12. Go back to devices and click on CoreStation. Scroll down and expand the Advanced tab and turn on Supervised Inputs 4&5 as we had set them up for Exit Button and Door Sensor. The resistance can stay as 2.2K Ohms, as they are default.
- Page 8 2022/01/04 10:41 How to configure CoreStation with an external wiegand device Relay work video lxio6068.mp4 From: http://kb.supremainc.com/knowledge/ Permanent link: http://kb.supremainc.com/knowledge/doku.php?id=en:how_to_configure_corestation_with_an_external_wiegand_device Last update: 2021/12/17 09:54 - http://kb.supremainc.com/knowledge/...
