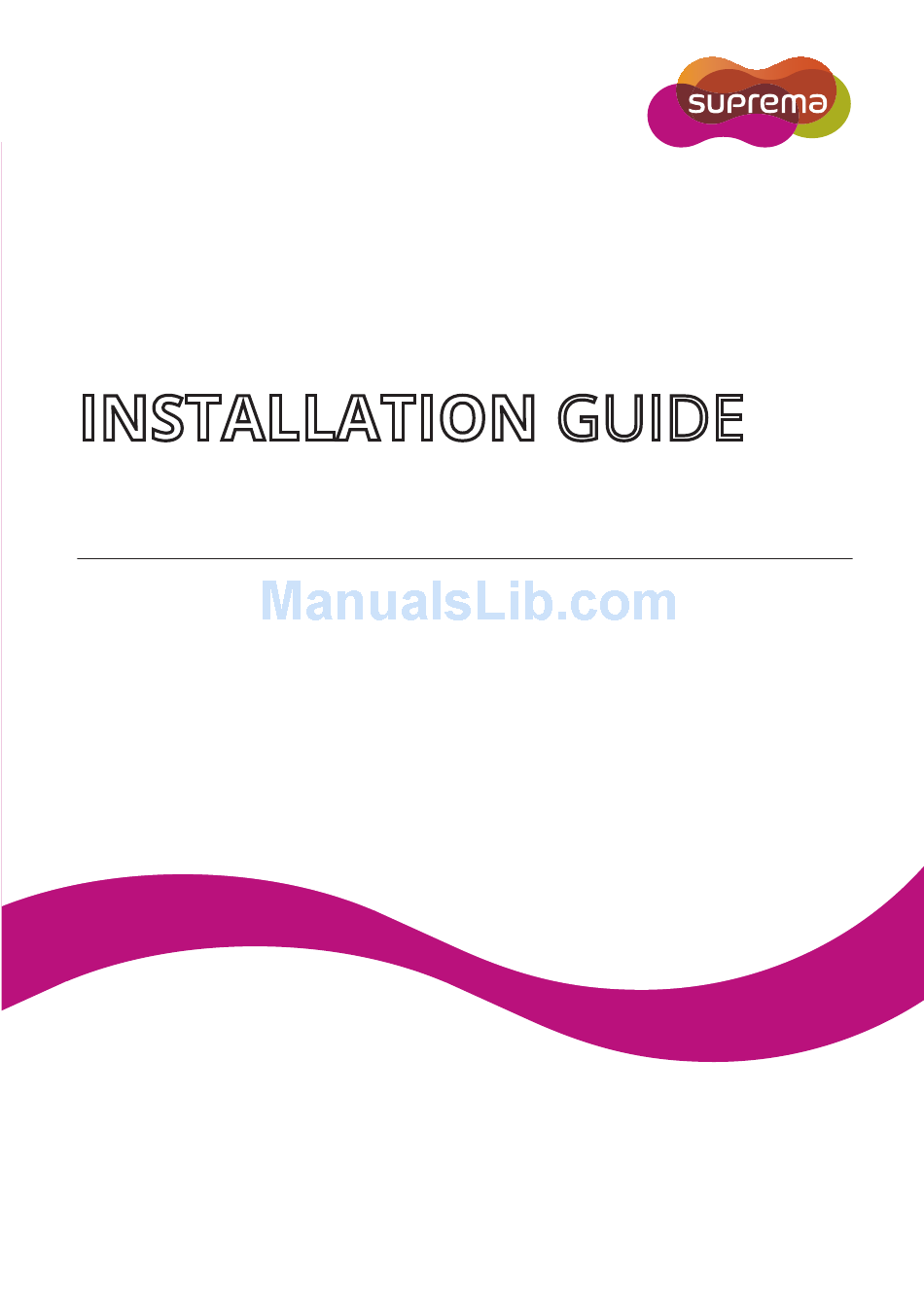

- Page 1 INSTALLATION GUIDE Xpass S2 English Version 2.2 EN 101.00.XPS2 V2.20A...
-
Page 2: Table Of Contents
Contents Safety Instructions ..................3 Getting Started ....................4 Components ..............................4 Features ................................5 Part names and features ..............................5 Cables and connectors ..............................6 Installation ......................7 Mounting the Bracket and Product ......................7 Installing the main bracket .............................. 7 Installing the extension bracket............................ -
Page 3: Safety Instructions
If installing the product outside where the product is completely exposed, it is recommended to install the product together with the enclosure. Use a separate power supply for Secure I/O 2, electric lock and Xpass S2 respectively. • If connecting and using the power supply to these devices together, the devices may malfunction. -
Page 4: Getting Started
Getting Started Getting Started Components Mounting screws for bracket PVC anchors (2 pcs) (2 pcs) Xpass S2 Diode Adapter Heat shrink tubes Main bracket Note The components may differ depending on where the product is installed. -
Page 5: Features
Getting Started Features Part names and features Reset button RF card LED status indicator touch area for Network Name Feature • Green: Authentication success • Red: Authentication failure • Pink: Processing • Blue and sky-blue alternate flashing every 2 seconds: Normal operation •... -
Page 6: Cables And Connectors
Getting Started Cables and connectors Name Color WG GND Black TTL GND Gray 485 GND White (Black stripe) WG D0 Green WG D1 White TTL IN0 Purple TTL IN1 Brown 485 TRXP Blue (White stripe) 485 TRXN Yellow (Black stripe) ENET TXN ENET TXP Black... -
Page 7: Installation
With the mounting screws for the bracket, mount the bracket firmly onto the surface where Xpass S2 is to be installed. Note If Xpass S2 should be installed onto a concrete wall, make a hole with a drill, and then insert a PVC anchor into the hole before screwing the mounting screw. -
Page 8: Installing The Extension Bracket
Mount the assembled extension bracket onto the desired place with the mounting screws for the bracket. Attach Xpass S2 onto the mounted extension bracket. Assemble Xpass S2 with the extension bracket by screwing the mounting screws on the bottom of Xpass S2. -
Page 9: Connecting To Power
(1,500 mA) and other devices. • Use a separate power supply for Secure I/O 2, electric lock and Xpass S2 respectively. If connecting and using the power supply to these devices together, the devices may malfunction. Connecting to a Network... -
Page 10: Connecting To An Door Button/Door Sensor
2 - TTL GND Gray 6 - TTL IN0 Purple 7 - TTL IN1 Brown Door sensor Xpass S2 Door button Digital input connection (Alarm, Emergency switch) 2 - TTL GND Gray 6 - TTL IN0 Purple 7 - TTL IN1... -
Page 11: Connecting To A Relay
Install the diode close to the door lock device. • Use a separate power source for Xpass S2 from the door lock device. Fail Secure Lock To use fail secure lock, connect N/O terminal as shown below. Normally, there is no current flowing through the relay and the door is opened when the relay is activated by a current flows. -
Page 12: Connecting To An Automatic Door
Gray (White stripe) 16 - RLY COM Green (White stripe) Door button Sensor Automatic door controller Door lock Xpass S2 Connecting as a standalone - TTL GND Gray - TTL IN0 Purple - TTL IN1 Brown 16 - RLY COM... -
Page 13: Connecting To Secure I/O 2
White (Black stripe) 8 - 485 TRXP Blue (White stripe) 9 - 485 TRXN Yellow (Black stripe) Input 1 Door sensor Xpass S2 Input 0 Door button Secure I/O 2 Door lock Connecting as a Wiegand device 1 - WG GND... -
Page 14: Resetting Network Settings
Installation Resetting Network Settings Turn the power on. Press and hold the reset button until you hear the buzzer. Connect the device with default values. • TCP/IP address: DHCP address assignment (If DHCP address assignment is failed, 169.254.0.1 will be set.) •... -
Page 15: Product Specifications
Product Specifications Product Specifications Product Specifications Category Feature Specification IP Rating IP65 XPS2M: 13.56MHz MIFARE, MIFARE Plus, DESFire/EV1 (CSN), FeliCa, ISO14443A, Main RF Card ISO15693 Multi-Controller Max. User (1:1) 50,000 Capacity Max. User (1:N) 50,000 Max. Text Log 100,000 TCP/IP RS-485 1ch Host or Slave (Selectable) Interface... -
Page 16: Dimensions
Product Specifications Dimensions (Unit: mm) Front view Side view Main bracket Extension bracket... -
Page 17: Fcc Compliance Information
FCC Compliance Information FCC Compliance Information THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. -
Page 18: Appendix
Designers should keep in mind that the functions or explanations denoted as "to be implemented" or "not defined" can be changed anytime. Suprema will implement or define such items in the shortest possible time, and will not accept any liability for problems incurred including compatibility issues. - Page 19 www.supremainc.com www.supremainc.com...
