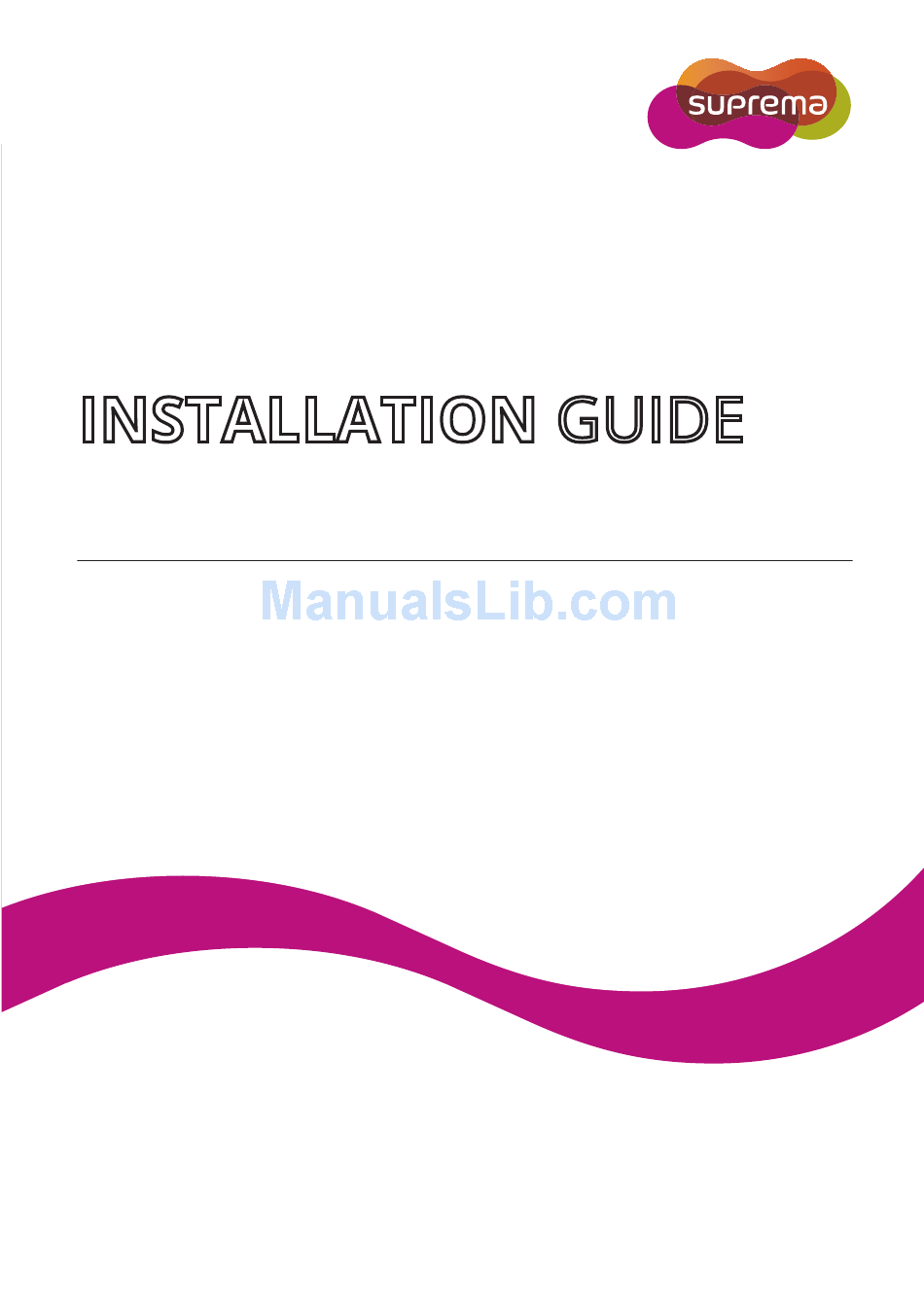

- Page 1 INSTALLATION GUIDE BioStation A2 English Version 1.00 EN 101.00.BSA2 V1.00A...
-
Page 2: Table Of Contents
Contents Safety instructions .................... 3 Introduction ...................... 5 Components ..............................5 Name and function of each part ....................... 6 Cables and connectors ..............................8 How to enroll a fingerprint ........................9 Selecting a finger for fingerprint input ........................9 Fingerprint enroll method ..............................9 Installation ..................... -
Page 3: Safety Instructions
If installing the product outside where the product is completely exposed, it is recommended to install the product together with the enclosure. Use a separate power supply for Secure I/O 2, electric lock and BioStation A2 respectively. • If connecting and using the power supply to these devices together, the devices may malfunction. - Page 4 Otherwise, a product failure may occur. BioStation A2 uses capacitive buttons. If the environment is moist from wet weather or the product surface is smeared with a lot of water, wipe off the product with a dry towel before using it.
-
Page 5: Introduction
Introduction Introduction Components PVC anchor (4 EA) Wall bracket Diode BioStation A2 (1 EA) Fixing screw Ferrite core Connection cable (4 EA) (1 EA) (2 pins 1 EA, 3 pins 2 EA, 4 pins 4 EA) 120 Ω resistor Drilling template... -
Page 6: Name And Function Of Each Part
Introduction Name and function of each part Microphone Camera LCD screen LED lamp Speaker Fingerprint authentication unit Home button RF card authentication unit Menu button Cancel button Mini USB cable slot USB memory slot Ethernet TTL input (4 pins) Relay 0 (3 pins) Relay 1 (3 pins) Wiegand input (4 pins) RS-485 (4 pins) - Page 7 Introduction RS-485 (4 pins) Connect the RS-485 cable. Relay 0, 1 (3 pins) Connect the relay cable. Power supply (2 pins) Connect the power supply cable. Ethernet Connect the Ethernet cable. Wiegand input (4 pins) Connect the Wiegand input and output cable. Wiegand output (4 pins) Connect the Wiegand input and output cable.
-
Page 8: Cables And Connectors
Introduction Cables and connectors Power supply Name Color PWR +VDC Red (white stripe) PWR GND Black (white stripe) Relay Name Color RLY NO White RLY COM Blue RLY NC Orange RS-485 Name Color 485 TRXP Blue 485 TRXN Yellow 485 GND Black SH GND Gray... -
Page 9: How To Enroll A Fingerprint
When the fingerprint recognition fails BioStation A2 can recognize a fingerprint regardless of a change of season or finger condition. However, the authentication rate may vary according to the external environment or fingerprint input method. If the fingerprint authentication cannot be done smoothly, it is recommended to take the following measures. -
Page 10: Installation
Note • If installing BioStation A2 on a concrete wall, drill holes, insert PVC anchors, and fix them with fixing screws. • Keep at least 10cm distances between the devices when install multiple devices. Otherwise, RF performance is affect to the other device, the devices may not operate normally. -
Page 11: Power Supply Connection
Red (white stripe) 2 - PWR GND Red (white stripe) BioStation A2 Note • Use a power supply adaptor of DC 12 V (± 10%) with a minimum of 1,500 mA which has obtained the approval of IEC/EN 60950-1. If you wish to connect and use another device to the power supply adaptor, you should use an adaptor with a current capacity which is the same or larger than the total power consumption required for the terminal and another device. -
Page 12: Ttl Input And Output Connection
Installation LAN connection (connecting to a PC directly) BioStation A2 has an automatic MDI/MDIX function so that it can be connected to a PC directly using a normal straight type CAT-5 cable or a cross cable. BioStation A2 TTL input and output connection... -
Page 13: Relay Connection
Take caution of the installation direction of the diode. Install the diode close to the door lock. • Use a separate power supply for BioStation A2 and the door lock. Fail Secure Lock In order to use the Fail Secure Lock, connect N/O relay as shown in the figure below There is normally no current flowing through the relay for the Fail Secure Lock. -
Page 14: Automatic Door Connection
Installation Automatic door connection 1 - RLY NO White 2 - RLY COM Blue Door button Detection sensor Automatic door control device Door lock BioStation A2... -
Page 15: Connecting As A Standalone
Black (white stripe) Note • BioStation A2 can be used as a multi-door controller with the slave devices with the RS485 cable. The slave devices are used as dummy readers and authentication is performed in the master device. • If Xpass is connected to the master device, only card authentication can be used. -
Page 16: Connecting To Secure I/O 2
Door button Note • BioStation A2 can be used as a multi-door controller with the slave devices with the RS485 cable. The slave devices are used as dummy readers and authentication is performed in the master device. • If Xpass is connected to the master device, only card authentication can be used. -
Page 17: Wiegand Connection
Cable shield (optional) RFID reader 1 - WG D0 Green 2 - WG D1 White 3 - WG GND Black BioStation A2 4 - SH GND Gray Use as a Wiegand output device Cable shield (optional) Controller 1 - WG D0 Green... -
Page 18: Product Specifications
Image dimension 272 x 320 pixels Image bit depth 8bit, 256 grayscale Resolution 500 dpi Fingerprint Template SUPREMA / ISO 19794-2 / ANSI 378 Extractor / Matcher MINEX certified and compliant Supported Max. User (1:1) 500,000 Max. User (1:N) 100,000 Max. -
Page 19: Dimensions
Product specifications Dimensions (Unit: mm) -
Page 20: Fcc Compliance Information
EU Declaration of Conformity (CE) This product is CE marked according to the provisions of the R&TTE Directive(1999/5/EC). Hereby, Suprema Inc. declares that this product is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC. This device is Class 1 radio equipment under the European Radio and Telecommunications Terminal Equipment (R&TTE) Directive (1999/5/EC). -
Page 21: Appendix
• Do not use the product of Suprema under the situations related to medical, rescue of human lives, or maintenance of life, as a person may get injured or lose his/her life due to product malfunction. If an accident occurs while a consumer is using the product under the... - Page 22 www.supremainc.com www.supremainc.com...
