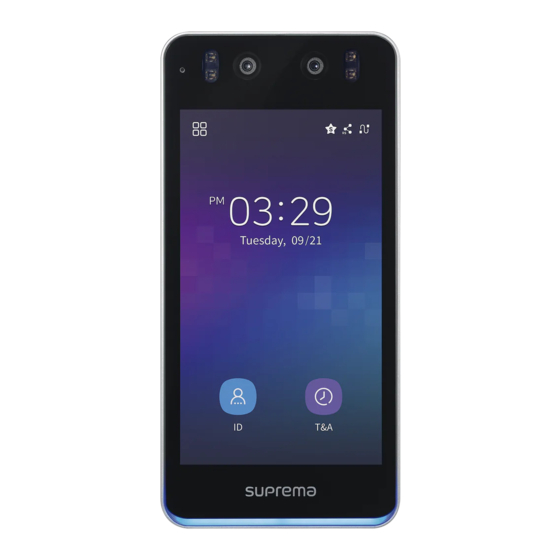

- Page 1 BioStation 3 INSTALLATION GUIDE English EN 101.00.BS3.00...
-
Page 2: Table Of Contents
CONTENTS Safety Precautions Product Specifications Symbols Dimensions Preparation Regulatory Information Components Regulatory & Licenses Part Names and Functions FCC Compliance Information Cables and Connectors EU Declaration of Conformity (CE) Facial Registration and Authentication Appendix Installation Disclaimers Mounting the Bracket and Product Copyright Notice Connecting to Power Open Source License... -
Page 3: Safety Precautions
Safety Precautions Please read this User Manual before using the product to ensure safe and correct use of the product so as to avoid personal injury or property damage. The product referred to in this manual includes all components provided with the main unit of the product. - Page 4 This may affect the RF and BLE performance of other devices and may cause malfunction. Use an IEC/EN 62368-1 compliant power adapter suited to the device’s power consumption. It is recommended to use a power adapter sold by Suprema. •...
- Page 5 Safety Precautions Caution Do not drop the product or subject it to impact or shock. • This may cause malfunction. Be careful not to interrupt power supply while firmware upgrade is in progress. • This may cause malfunction. Keep your password safe and change it periodically. •...
-
Page 6: Preparation
When assembling the product with the bracket, you can use the Bracket Fixing Screw (Star Shaped) instead of the Fixing Screws for a more secure installation. • To learn more about using this product, please visit the Suprema website (https://www.supremainc.com) and refer to the User Guide. -
Page 7: Part Names And Functions
Blue/light blue flashing: Normal operation LED Status Indicator • Blue/green flashing: No IP address received while DHCP is enabled • Blue/green flashing: Network settings initialized • Green flashing: Waiting for input • Green/white flashing: Connecting to Suprema AirFob Pass (BLE) application... -
Page 8: Cables And Connectors
Preparation Name Description Speaker Makes sounds for users to hear. Ethernet Connects the Ethernet cable. TTL Input (5-pin) Connects the TTL input cable. USB Expansion Port (4-pin) Exports a log stored on the device or connects to other accessories. Wiegand Output (4-pin) Connects the Wiegand output cable. - Page 9 Preparation TTL Input Name Color TTL IN0 TTL IN1 Yellow TTL IN2 Orange TTL GND Black SH GND Grey Wiegand Input Name Color WG D0 Green WG D1 White WG GND Black SH GND Grey Wiegand Output Name Color WG D0 Green WG D1 White...
-
Page 10: Facial Registration And Authentication
Preparation Facial Registration and Authentication Cautions regarding facial registration • When registering a face, keep a distance of 60–100 cm between the system and face. • Be careful not to change facial expression. • Do not wear a mask, hat, or eye patch. •... -
Page 11: Installation
• Adjust the position of the system so that your face is not exposed to direct sunlight during facial authentication. Mount the bracket securely using the Bracket Fixing Screw at the position where the BioStation 3 is to be installed. - Page 12 Installation • When installing BioStation 3 on a concrete wall, drill a hole, insert a PVC Anchor, and then fix it with the Fixing Screw. • Ensure there is a minimum separation distance to avoid RF interference. Wall Wall thickness Wall 300 mm...
- Page 13 Installation Mount the BioStation 3 on the fixed bracket. Wall Secure the BioStation 3 to the bracket with the BioStation 3 Fixing Screw. Wall...
-
Page 14: Connecting To Power
• When connecting power, pay attention to the distance between BioStation 3 and the power supply. The system and the power supply should be as close as possible. The system may malfunction if not properly connected. -
Page 15: Connecting To A Network
Connect to the hub using a normal CAT-5 cable. BioStation 3 LAN connection (directly to a PC) BioStation 3 supports automatic MDI/MDIX, so it can be directly connected to a PC with a crossover cable or a normal straight-type CAT-5 cable. BioStation 3 •... -
Page 16: Connecting To A Ttl Input
Installation Connecting to a TTL Input BioStation 3 Door sensor Cable shielding (optional) Exit button 1 - TTL IN0 2 - TTL IN1 Yellow 3 - TTL IN2 Orange 4 - TTL GND Black 5 - SH GND Grey Sensor... -
Page 17: Connecting To A Relay
When using such access control applications, please use a separate relay such as Suprema's Secure I/O 2, DM-20, or CoreStation installed in a safe location inside the door for lock control. -
Page 18: Fail Secure Lock
When using such access control applications, please use a separate relay such as Suprema's Secure I/O 2, DM-20, or CoreStation installed in a safe location inside the door for lock control. -
Page 19: Connecting To An Automatic Door
Installation Connecting to an Automatic Door 1 - RLY NO White 2 - RLY COM Blue Exit button Sensor Automatic door controller BioStation 3 Door lock... -
Page 20: Stand-Alone Connection
Installation Stand-Alone Connection The BioStation 3 can be directly connected to door locks, exit buttons, door sensors, etc. without connecting to a separate I/O device. TTL Connection 1 - TTL IN0 2 - TTL IN1 Yellow 3 - TTL IN2... - Page 21 If the fingerprint scanner is the master device, BioStation 3 cannot be added as a slave device. • If BioStation 3 is the master device and BioStation 3 is connected as a slave device, only one BioStation 3 can be added as a slave device.
-
Page 22: Connecting To Secure I/O 2
Connecting to Secure I/O 2 You can connect Secure I/O 2 (I/O device) to BioStation 3 via RS-485. Even if BioStation 3 and Secure I/O 2 are disconnected, or BioStation 3 is powered off due to external factors, security can be ensured. -
Page 23: Wiegand Connection
2 - WG D1 White 3 - WG GND Black 4 - SH GND Grey RFID reader BioStation 3 Used as a Wiegand output device 1 - WG D0 Green 2 - WG D1 White 3 - WG GND Black... -
Page 24: Product Specifications
Product Specifications Category Feature Specifications Biometric Face • BS3-DB: 125kHz EM & 13.56MHz MIFARE, MIFARE Plus, DESFire EV1/ EV2*, FeliCa RF card • BS3-APWB: 125kHz EM, HID Prox & 13.56MHz MIFARE, MIFARE Plus, Credentials DESFire EV1/EV2*, FeliCa, iCLASS SE/SR/Seos RF detection distance** EM/HID iCLASS/MIFARE: 30 mm, HID Prox/DESFire: 25 mm, FeliCa: 15 mm Mobile... - Page 25 Product Specifications Category Feature Specifications Ethernet Supported (10/100/1000 Mbps, automatic MDI/MDI-X) • BS3-DB: Not supported Wi-Fi • BS3-APWB: Supported (802.11 b/ g/ n) RS-485 1 ch Host / Slave (Selectable) Wiegand 1 ch Input, 1 ch Output TTL Input 3 ch Inputs Interfaces Relay 1 Relay...
-
Page 26: Dimensions
Product Specifications Dimensions (Unit: mm) 72.9 82.5 23.4... -
Page 27: Regulatory Information
Regulatory Information Regulatory & Licenses Licenses, Regulatory Information, certifications, and compliance marks specific to BioStation 3 are available from the device. • CE / FCC / IC / KC / UKCA / RCM Press and authenticate with the Admin level credential. -
Page 28: Eu Declaration Of Conformity (Ce)
This product is CE marked according to the provisions of the Radio Equipment Directive (RED) 2014/53/EU. Hereby, Suprema Inc. declares that this product is in compliance with the essential requirements and other relevant provisions of Radio Equipment Directive (RED) 2014/53/EU. -
Page 29: Appendix
• or warranty sticker of the hardware is changed or removed; 2) used in a way other than those permitted by Suprema; 3) changed, modified, or repaired by a party other than Suprema or a party authorized by Suprema; or 4) operated or maintained in an inadequate environment. -
Page 30: Gnu General Public License
Appendix GNU General Public License Version 3, 29 June 2007 Copyright © 2007 Free Software Foundation, Inc. <http://fsf.org/> Everyone is permitted to copy and distribute verbatim copies of this license document, but changing it is not allowed. Preamble The GNU General Public License is a free, copyleft license for software and other kinds of works. The licenses for most software and other practical works are designed to take away your freedom to share and change the works. - Page 31 Appendix TERMS AND CONDITIONS 0. Definitions. “This License” refers to version 3 of the GNU General Public License. “Copyright” also means copyright-like laws that apply to other kinds of works, such as semiconductor masks. “The Program” refers to any copyrightable work licensed under this License. Each licensee is addressed as “you”. “Licensees”...
- Page 32 Appendix 2. Basic Permissions. All rights granted under this License are granted for the term of copyright on the Program, and are irrevocable provided the stated conditions are met. This License explicitly affirms your unlimited permission to run the unmodified Program. The output from running a covered work is covered by this License only if the output, given its content, constitutes a covered work.
- Page 33 Appendix 6. Conveying Non-Source Forms. You may convey a covered work in object code form under the terms of sections 4 and 5, provided that you also convey the machine-readable Corresponding Source under the terms of this License, in one of these ways: a) Convey the object code in, or embodied in, a physical product (including a physical distribution medium), accompanied by the Corresponding Source fixed on a durable physical medium customarily used for software interchange.
- Page 34 Appendix 7. Additional Terms. “Additional permissions” are terms that supplement the terms of this License by making exceptions from one or more of its conditions. Additional permissions that are applicable to the entire Program shall be treated as though they were included in this License, to the extent that they are valid under applicable law.
- Page 35 Appendix 9. Acceptance Not Required for Having Copies. You are not required to accept this License in order to receive or run a copy of the Program. Ancillary propagation of a covered work occurring solely as a consequence of using peer-to-peer transmission to receive a copy likewise does not require acceptance.
- Page 36 Appendix A patent license is “discriminatory” if it does not include within the scope of its coverage, prohibits the exercise of, or is conditioned on the non-exercise of one or more of the rights that are specifically granted under this License. You may not convey a covered work if you are a party to an arrangement with a third party that is in the business of distributing software, under which you make payment to the third party based on the extent of your activity of conveying the work, and under which the third party grants, to any of the parties who would receive the covered work from you, a...
-
Page 37: Gnu Lesser General Public License
Appendix 17. Interpretation of Sections 15 and 16. If the disclaimer of warranty and limitation of liability provided above cannot be given local legal effect according to their terms, reviewing courts shall apply local law that most closely approximates an absolute waiver of all civil liability in connection with the Program, unless a warranty or assumption of liability accompanies a copy of the Program in return for a fee. - Page 38 Appendix b) Accompany the object code with a copy of the GNU GPL and this license document. 4. Combined Works. You may convey a Combined Work under terms of your choice that, taken together, effectively do not restrict modification of the portions of the Library contained in the Combined Work and reverse engineering for debugging such modifications, if you also do each of the following: a) Give prominent notice with each copy of the Combined Work that the Library is used in it and that the Library and its use are covered by this License.
-
Page 39: Openssl License
Appendix OpenSSL License Copyright (c) 1998-2017 The OpenSSL Project. All rights reserved. Redistribution and use in source and binary forms, with or without modification, are permitted provided that the following conditions are met: 1. Redistributions of source code must retain the above copyright notice, this list of conditions and the following disclaimer. -
Page 40: Original Ssleay License
Appendix Original SSLeay License Copyright (C) 1995-1998 Eric Young (eay@cryptsoft.com) All rights reserved. This package is an SSL implementation written by Eric Young (eay@cryptsoft.com). The implementation was written so as to conform with Netscapes SSL. This library is free for commercial and non-commercial use as long as the following conditions are adhered to. The following conditions apply to all code found in this distribution, be it the RC4, RSA, lhash, DES, etc., code;... - Page 41 QR code. https://supremainc.com/en/about/global-office.asp © 2022 Suprema Inc. Suprema and identifying product names and numbers herein are registered trade marks of Suprema, Inc. All non-Suprema brands and product names are trademarks or registered trademarks of their respective companies.
