POWERING UP
Using Default Settings
1. Connect a suitable 24VDC supply (complying with European
Standard EN 54-4) to pins 1 and 2 on terminal block T1 (See
Table 2)
2. Check the voltage at the connector. Make sure it is within the
required voltage range.
3. If the voltage is within the specified range, connect the power
connector to the unit.
4. Close and secure the housing door; verify the fan starts up and air
flows out of the exhaust port. The unit takes 1-3 minutes to initialise
and stabilise in normal mode.

EXTERNAL RESET

The default setting for the configurable external input is Device Reset
(terminal block T8). A momentary short circuit connection between
these terminals will cause the FAAST LT-200 unit to perform a reset.
FRONT PANEL
The front panel will be different depending on which of the 3 FL01
models is being installed, and each is shown below.
The following information is displayed:
• Detector Status: Normal, Alarm, Fault or Isolate
• Alarm Level; Alarm, Pre-Alarm
• Particulate Levels; 1-9
• Flow Level
• Test, Reset and Disable Buttons

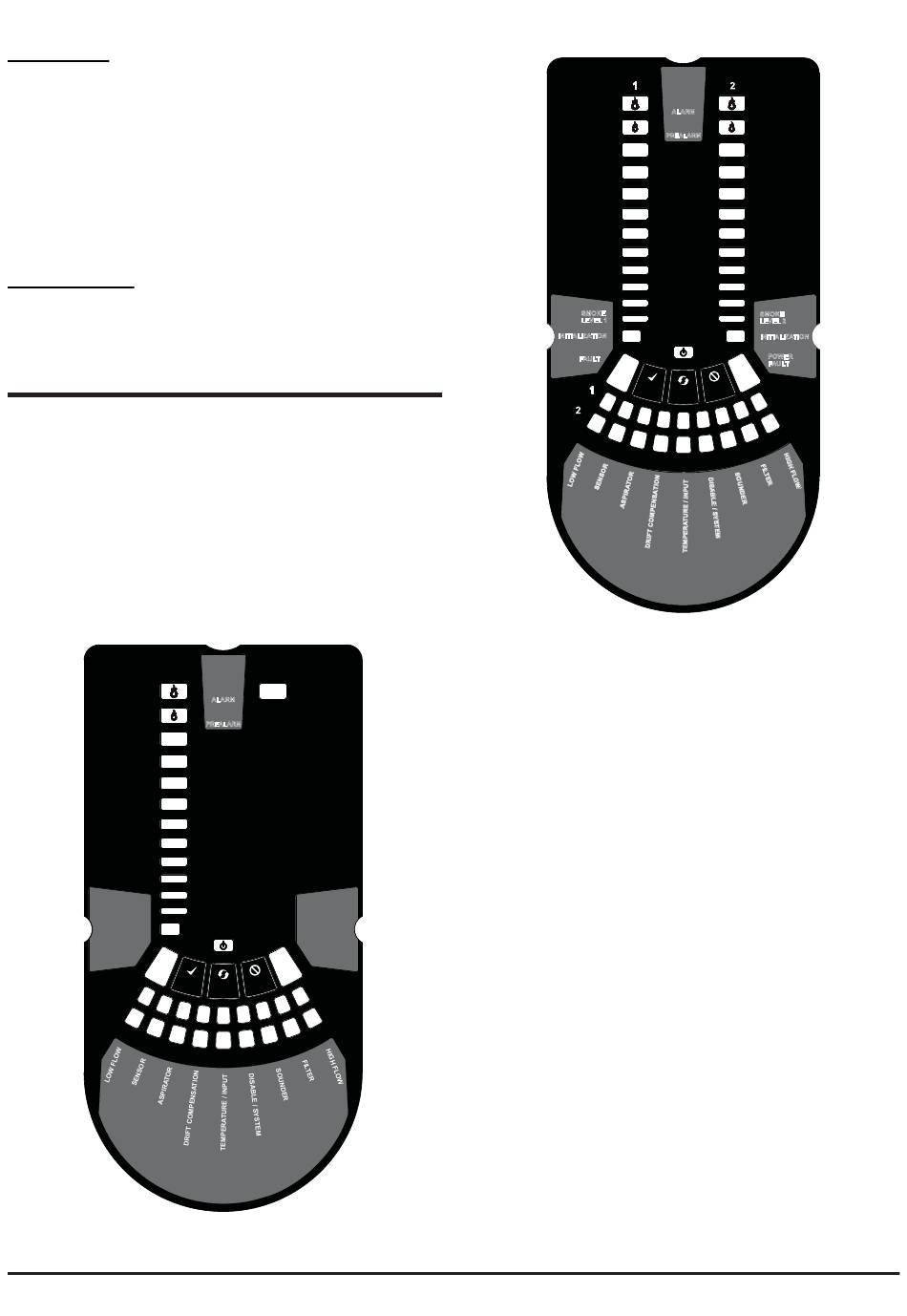

Figure 10: Front Panel Display
10
9
8
7
6
5
4
3
2
SMOKE
LEVEL 1
INITIALIZATION
FAULT
10a: FL0111E-HS / FL0112E-HS 1 Channel Detector
D200-101-01
ALARM
PREALARM
POWER
FAULT
SMOKE
LEVEL 1
INITIALIZATION
FAULT
10b: FL0122E-HS 2 Channel Detector
6
ALARM
PREALARM
10 10
9 9
8 8
7 7
6 6
5 5
4 4
3 3
2 2
SMOKE
1 1
LEVEL 2
INITIALIZATION
POWER
FAULT
I56-6574-000
