Terminal Designations - System Sensor FAAST FL0111E-HS Quick Installation Manual

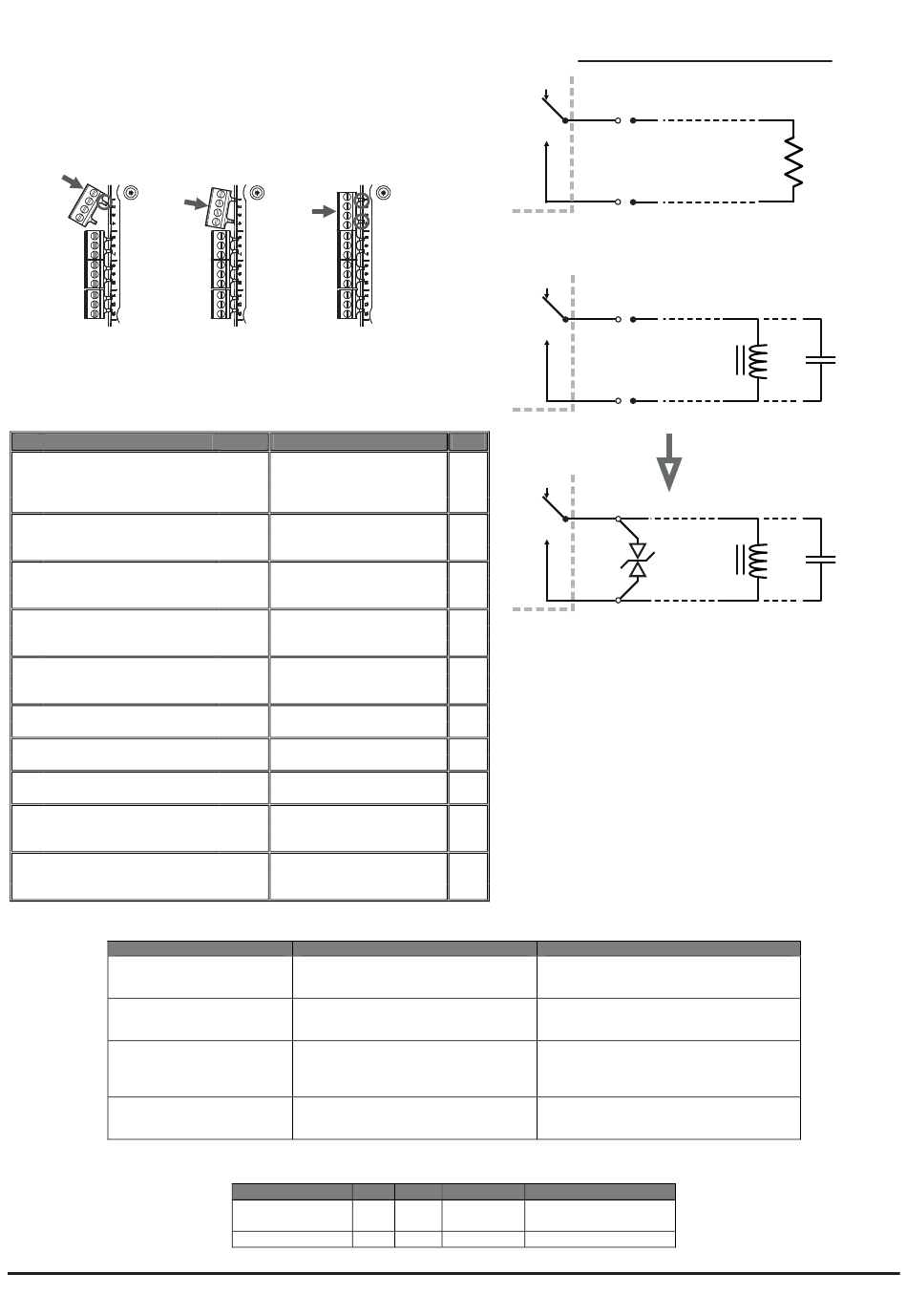

Fitting the Terminal Blocks
To insert the terminal blocks into the unit use the following method:
1 Insert a corner of the block into the slot (see a).
2 Push the length of the block into the slot until the block 'clicks' into
place, the 2 upper hooks on the block should be visible (see c).
a
Table 2: Wiring Terminal Designations
(Note - Terminals marked CH2 will only be available on 2 channel
models)
No. Function
1 Ext Power In +
2 Ext Power In -
3 Aux Power In +
4 Aux Power In -
5 NC Alarm Relay
6 C Alarm Relay
7 NO Alarm Relay
8 NC Alarm Relay
9 C Alarm Relay
10 NO Alarm Relay
11 NC Fault Relay
12 C Fault Relay
13 NO Fault Relay
14 NC Fault Relay (AUX)
15 C Fault Relay (AUX)
16 NO Fault Relay (AUX)
17 Sounder Output 1 -
18 Sounder Output 1 +
19 Sounder Output 2 -
20 Sounder Output 2 +
21 Configurable Input +
22 Configurable Input -
23 NC Pre-Alarm Relay
24 C Pre-Alarm Relay
25 NO Pre-Alarm Relay
26 NC Pre-Alarm Relay
27 C Pre-Alarm Relay
28 NO Pre-Alarm Relay
RELAY
ALARM 1 or 2
PRE-ALARM 1 or 2
FAULT 1 or 2
SOUNDER 1 or 2
D200-101-01
b c
Primary PSU
Primary PSU
Not used in default
Not used in default
CH1
CH1
CH1
CH2
CH2
CH2
CH1
CH1
CH1
CH2
CH2
CH2
47 k-ohm EOL Resistor
47 k-ohm EOL Resistor
(Reset)
Default is active = short circuit
(Reset) (unsupervised)
CH1
CH1
CH1
CH2
CH2
CH2
ACTION:
Set ON when ALARM CONDITION is met
on a channel
Set ON when PRE-ALARM CONDITION
is met on channel.
When FAULT CONDITION on Ch1 or Ch2
or a common FAULT occurs. Fault is also
indicated when in SERVICE mode and
when the unit is unpowered.
Set ON when a channel is in ALARM /
PRE-ALARM. Sounder 1 corresponds to
Ch1 and Sounder 2 corresponds to Ch2
Table 3a: Relay Electrical Specification
SPECIFICATION MIN
Contact Rating
Life Time 10 5
FAAST LT
FAAST LT
T1 FAAST LT
T2
T3
T4
T5
T6
T7
T8
T9
T10
Table 3: Relays
NOTES
Default condition = Level 1. Alarm state is
latched as default. A manual RESET is
necessary to deactivate LED and relay.
Default condition = Level 1. NOTE: When
Pre-ALARM = ALARM = Level 1, Pre-ALARM
will actually respond at 70% of Level 1.
Fault state is not latched (default)
Default condition = set on in ALARM.
MAX UNITS COMMENTS
2 A 30 VDC resistive load
0.5 A 30 VAC resistive load
Operations
5
WARNING: Switching Inductive Loads
~
1N6284CA
P
R
r
L C
P
L C
I56-6574-000
