INSTALLATION
AND

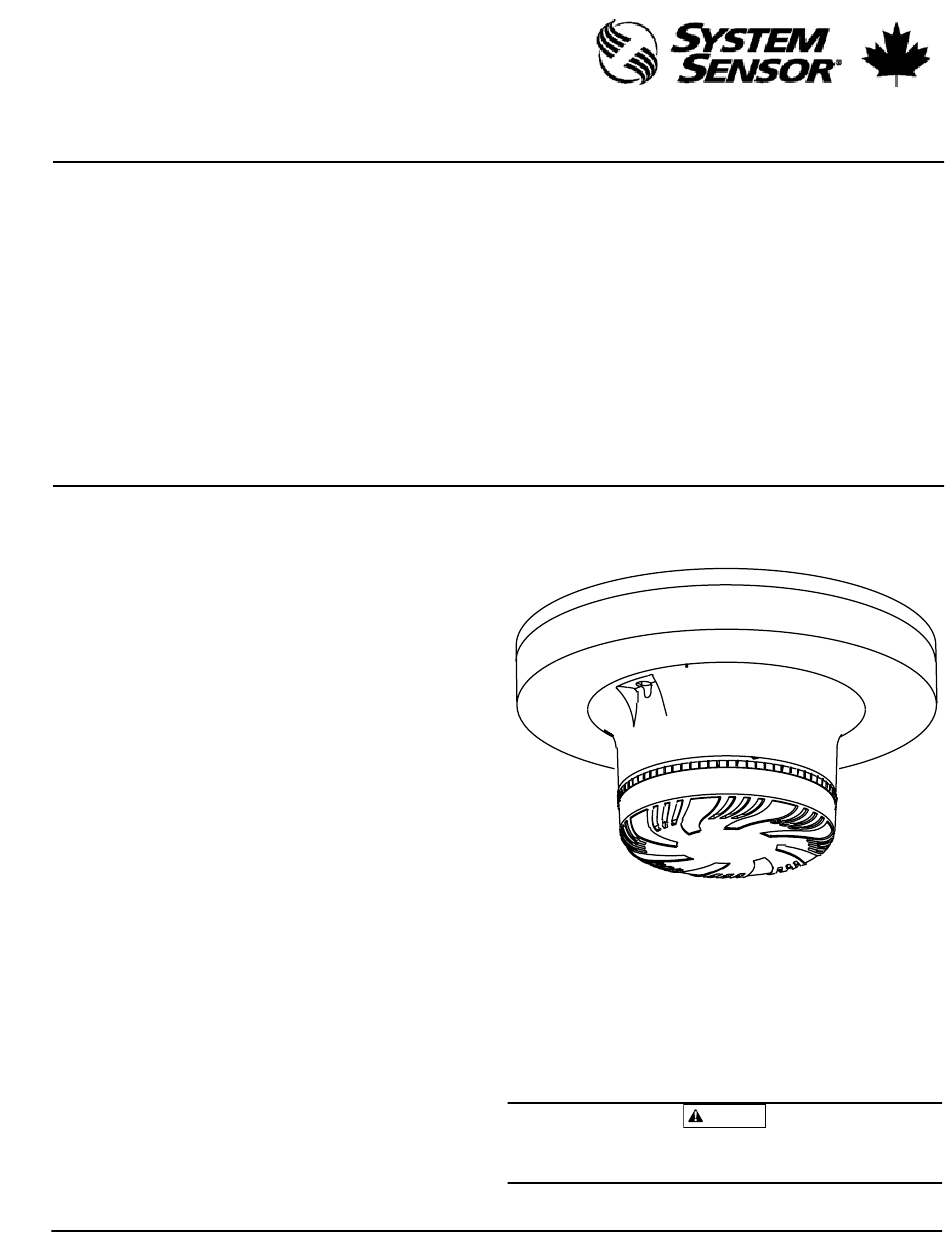

FTX-P1A Filtrex ® Intelligent
Photoelectronic Smoke Detector
Specifications
Operating Voltage Range:
Detector Current:
Auxiliary Power Supply Voltage:
Auxilary Power Supply Current –
Peak:
Average:
Operating Humidity Range:
Operating Temperature Range:
Height:
Diameter:
Weight:
Compatibility:
Mounting Base:
Before Installing
This detector must be installed in compliance with the con-
trol panel system installation manual. The installation must
meet the requirements of the Authority Having Jurisdiction
(AHJ). Detectors offer maximum performance when
installed in compliance with the CAN/ULC-S524.
General Description
Filtrex® uses a small air intake fan and a high density
replaceable filter. Air and smoke are drawn into a photo-
electric sensing chamber while airborne particulate and
water mist are removed. The addressable-analog detector
transmits an analog representation of smoke density over
a communication line to a control panel. Rotary-decade
switches are provided for setting the sensor's address.
Two LEDs on the sensor are controlled by the panel to
indicate sensor status.
Filtrex smoke detector is intended for use in normal
environmental conditions, where dust and other air-
borne particulate are present at elevated levels. These
elevated levels tend to cause false alarms and high
maintenance in standard detectors. Filtrex provides a
protective enclosure for a photoelectric smoke detec-
tor chamber and allows smoke detection in areas that
tended to use exclusively heat detection.
Filtrex requires compatible addressable communica-
tions to function properly. Connect this detector to
listed-compatible control panels only.
D200-72-00
MAINTENANCE
INSTRUCTIONS
15 to 32 VDC
230 µA @ 24 VDC (without communication)
285 µA @ 24 VDC (one communication every 5 sec. with LED enabled)
15 to 30 VDC filtered; Ripple voltage may not drop below 15 volts.
123 mA max.
27 mA max.
10% to 93% Relative
0° to 50°C (32° to 122°F)
2.8 inches (43 mm)
6.1 inches (155 mm) installed in B501B-FTXA
7.3 oz. (207 g)
Backwards compatible with 200 and 500 series products' protocol
Requires B501B-FTXA
6581 Kitimat Rd., Unit #6, Mississauga, Ontario, L5N 3T5
Humidity, noncondensing
Spacing
System Sensor recommends spacing detectors in com-
pliance with CAN/ULC-S524. In low air flow applications
with smooth ceilings, space detectors 30 feet apart. For
specific information regarding sensor spacing, placement,
and special applications, refer to CAN/ULC-S524 or the
System Sensor Guide For Proper Use of System Smoke
Detectors, available from System Sensor (P/N I56-407-
XX).
Filtrex is not designed to operate in explosive
environments.
1
1-800-SENSOR2, FAX: 905-812-0771
www.systemsensor.ca
WARNING
I56-1883-000
Advertisement
Related Manuals for System Sensor Filtrex FTX-P1A
Summary of Contents for System Sensor Filtrex FTX-P1A
- Page 1 INSTALLATION MAINTENANCE INSTRUCTIONS FTX-P1A Filtrex ® Intelligent 6581 Kitimat Rd., Unit #6, Mississauga, Ontario, L5N 3T5 Photoelectronic Smoke Detector 1-800-SENSOR2, FAX: 905-812-0771 www.systemsensor.ca Specifications Operating Voltage Range: 15 to 32 VDC Detector Current: 230 µA @ 24 VDC (without communication) 285 µA @ 24 VDC (one communication every 5 sec. with LED enabled) Auxiliary Power Supply Voltage: 15 to 30 VDC filtered; Ripple voltage may not drop below 15 volts. Auxilary Power Supply Current – Peak: 123 mA max. Average: 27 mA max. Operating Humidity Range: 10% to 93% Relative Humidity, noncondensing Operating Temperature Range: 0° to 50°C (32° to 122°F) Height: 2.8 inches (43 mm) Diameter: 6.1 inches (155 mm) installed in B501B-FTXA Weight: 7.3 oz. (207 g) Compatibility: Backwards compatible with 200 and 500 series products’ protocol Mounting Base: Requires B501B-FTXA Before Installing This detector must be installed in compliance with the con-...
- Page 2 Figure 1. Wiring diagram: – AUX. POWER SUPPLY – Wiring Instructions Testing All wiring must be installed in compliance with the Before testing, notify the proper authorities that the system Canadian Electrical Code, applicable local codes, and any is undergoing maintenance, and will temporarily be out of special requirements of the Authority Having Jurisdiction. service. Disable the system to prevent unwanted alarms. Proper wire gauges should be used. The installation wires should be color-coded to limit wiring mistakes and ease All detectors must be tested after installation and periodi- system troubleshooting. Improper connections will prevent cally thereafter. Testing methods must satisfy the Authority...
- Page 3 A detector that fails any of these tests should be retested. Figure 2. Rotary decade address switches: If the detector still fails any test, have its filter replaced (see instructions below) and retested. Finally, if the detec- tor continues to fail after replacing the filter, it must be returned for repair or replacement. When testing is complete, restore the system to normal operation and notify the proper authorities that the system is back in operation.
- Page 4 If a clogged filter was the cause of the trouble condition, Figure 5: Installing Filtrex detector into base: normal detector operation should resume automatically within five minutes. If the trouble condition persists, the detector must be returned for repair or replacement. Installing Filtrex Into Base 1. Align the detector at a right angle to the base, with the five wires and connector adjacent to the connector receptacle as shown in Figure 5.
