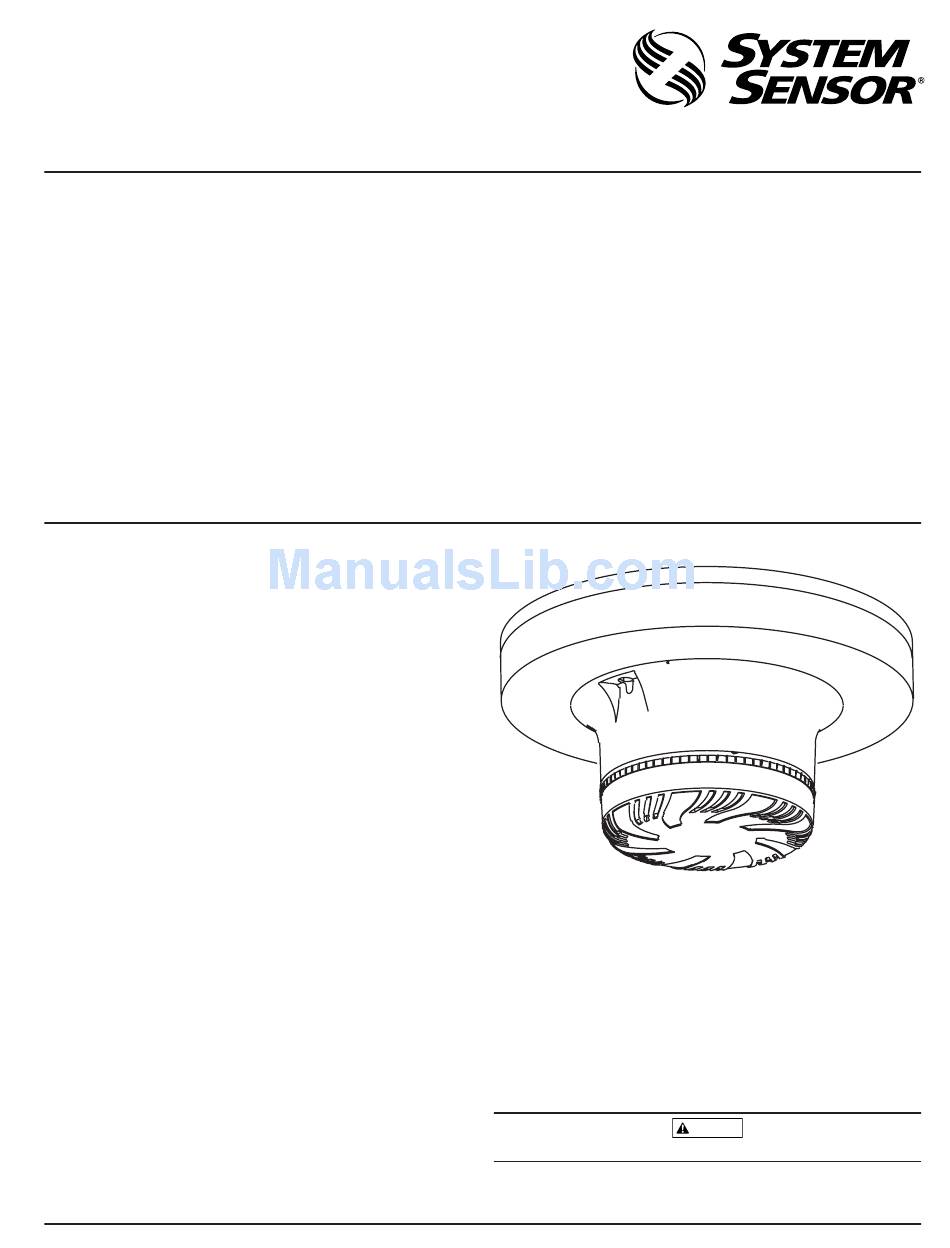

INSTALLATION AND MAINTENANCE INSTRUCTIONS
FTX-P1 Filtrex
®
Photoelectronic Smoke Detector
Specifications
Operating Voltage Range:
Detector Current:
Auxiliary Power Supply Voltage:
Auxiliary Power Supply Current:
Peak:
Average:
Operating Humidity Range:
Operating Temperature Range:
Height:
Diameter:
Weight:
Compatibility:
Mounting Base:
Before Installing
This detector must be installed in compliance with the con-
trol panel system installation manual. The installation must
meet the requirements of the Authority Having Jurisdic-
tion (AHJ). Detectors offer maximum performance when
installed in compliance with the National Fire Protection
Association (NFPA); see NFPA 72.
General Description
Filtrex® uses a small air intake fan and a high density re-
placeable filter. Air and smoke are drawn into a photoelec-
tric sensing chamber while airborne particulate and water
mist are removed. The addressable-analog detector transmits
an analog representation of smoke density over a commu-
nication line to a control panel. Rotary-decade switches are
provided for setting the sensor's address. Two LEDs on the
sensor are controlled by the panel to indicate sensor status.
Filtrex smoke detector is intended for use in normal en-
vironmental conditions, where dust and other airborne
particulate are present at elevated levels. These elevated
levels tend to cause false alarms and high maintenance
in standard detectors. Filtrex provides a protective en-
closure for a photoelectric smoke detector chamber and
allows smoke detection in areas that tended to use exclu-
sively heat detection.
Filtrex requires compatible addressable communications
to function properly. Connect this detector to listed-com-
patible control panels only.
D200-72-00
Intelligent
15 to 32 VDC
250 µA @ 24 VDC (without communication)
360 µA @ 24 VDC (one communication every 99 communications with LED enabled)
15 to 30 VDC filtered; Ripple voltage may not drop below 15 volts.
123 mA max.
27 mA max.
10% to 93% Relative Humidity, noncondensing
0°C to 50°C (32°F to 122°F)
2.8 inches (43 mm)
6.1 inches (155 mm) installed in B501B-FTX
4.0 inches (102 mm) installed in B524FTXE
7.3 oz. (207 g)
Backwards compatible with 200 and 500 series products' protocol
Requires B501B-FTX (U.S.), B524FTXE (Europe)
Spacing
System Sensor recommends spacing detectors in com-
pliance with NFPA 72. In low air flow applications with
smooth ceilings, space detectors 30 feet apart. For specific
information regarding sensor spacing, placement, and spe-
cial applications, refer to NFPA 72 or the System Sensor
Guide For Proper Use of System Smoke Detectors, available
from System Sensor (P/N I56-407-XX).
Filtrex is not designed to operate in explosive environments.
1
3825 Ohio Avenue, St. Charles, Illinois 60174
1-800-SENSOR2, FAX: 630-377-6495
www.systemsensor.com
WARNING
I56-1184-008R
C0193-00
