FIBARO ROLLER SHUTTER 3 Operating Manual

Hide thumbs Also See for ROLLER SHUTTER 3:
Table of Contents

Advertisement

Quick Links

CONTENTS
#9: Resetting to factory defaults

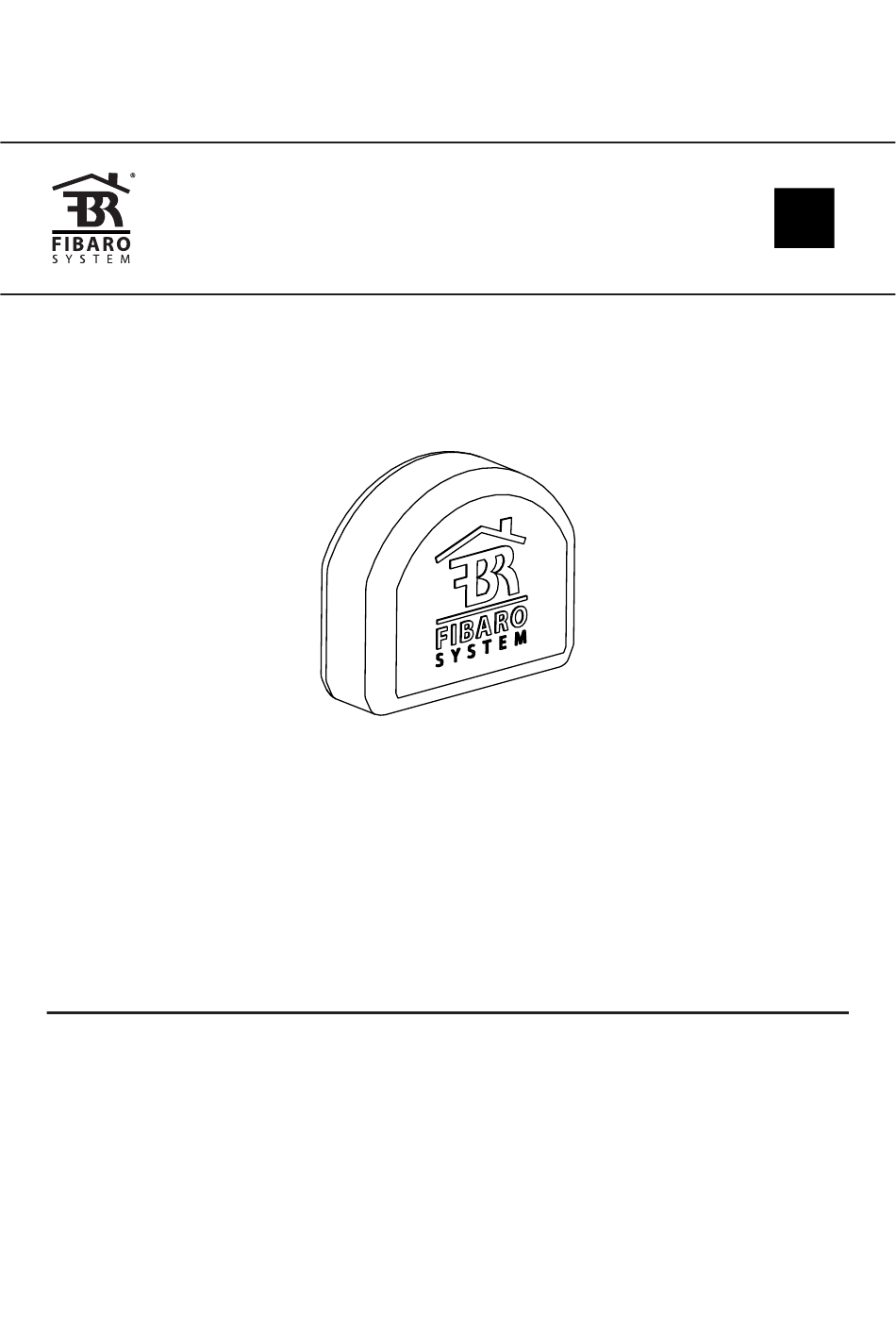

O P E R A T I N G
M A N U A L
FIBARO
ROLLER SHUTTER 3
FGR-223
3
4
8
9
10
13
14
15
16
EN
v1.0
17
18
19
20
21
24
32
33

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ROLLER SHUTTER 3 and is the answer not in the manual?

Questions and answers

Related Manuals for FIBARO ROLLER SHUTTER 3

Summary of Contents for FIBARO ROLLER SHUTTER 3

  • Page 1: Table Of Contents

    O P E R A T I N G M A N U A L FIBARO ROLLER SHUTTER 3 FGR-223 CONTENTS v1.0 #1: Description and features #10: Power and energy consumption #2: Installation #11: Associations #3: Adding the device #12: Z-Wave range test...
  • Page 2 Fibar Group S.A. will not be held responsible for any loss or damage resulting from not following the instructions of operating manual. Danger of electrocution! FIBARO Roller Shutter 3 is designed to operate in electrical home installation. Faulty connection or use may result in fire or elec- tric shock.

  • Page 3: 1: Description And Features

    #1: Description and features FIBARO Roller Shutter 3 is a device designed to control roller blinds, awnings, venetian blinds, gates and other single phase, Ac powered devices. Roller Shutter 3 allows precise positioning of roller blinds or venetian blind lamellas. The device is equipped with power and energy monitoring.

  • Page 4: 2: Installation

    #2: Installation Connecting the Roller Shutter 3 in a manner inconsistent with this manual may cause risk to health, life or material damage. • connect only in accordance with one of the diagrams, • Do not connect Dc powered motors, the device is dedicated to operate Ac powered electric motors, •...
  • Page 5 Installation with standard blinds: 1. Switch off the mains voltage (disable the fuse). 2. Open the wall switch box. 3. connect with the following the diagram: S1 S2 Roller Shutter 3 Wiring diagram - standard blinds 4. Verify if the device is connected correctly. 5.
  • Page 6 Installation with blinds with built-in driver: 1. Switch off the mains voltage (disable the fuse). 2. Open the wall switch box. 3. connect with the following the diagram: S1 S2 Roller Shutter 3 Wiring diagram - blinds with built-in driver 4.
  • Page 7 Installation with gate motors: • Installation of the gate driver may be performed only by certified professionals. • The motor must be equipped with the appropriate limit switches. • It is recommended to connect a nc (normally closed) contact of an IR barrier to S2 terminal.

  • Page 8: 3: Adding The Device

    #3: Adding the device Adding (Inclusion) - Z-Wave device learning mode, allowing to add the device to existing Z-Wave network. To add the device to the Z-Wave network manually: NOTE 1. Power the device. In case of problems 2. Identify the S1 switch. with adding using the S1 switch, use B-but- 3.

  • Page 9: 4: Removing The Device

    #4: Removing the device Removing (Exclusion) - Z-Wave device learning mode, allowing to NOTE remove the device from existing Z-Wave network. In case of problems Removing the device restores all the default parameters of the de- with removing using vice, but does not reset power metering data. the S1 switch, use B-button instead (lo- cated on the housing).

  • Page 10: 5: Positioning Calibration

    #5: Positioning calibration Calibration is a process during which a device learns the position of NOTE the limit switches and a motor characteristic. If you notice the cali- calibration is mandatory in order for the device to correctly recognize bration process fail a roller blind position.
  • Page 11 Calibration using parameter 1. Make sure: • the device is supplied, • the device added to the Z-Wave network, • parameter 151 is set to 1 or 2. 2. Set the parameter 150 value to 2 3. The device will perform the calibration process, completing full cycle –...
  • Page 12 Roller blind with built-in driver positioning 1. Make sure: • the device is supplied, • momentary switch is connected to S1 and S2 terminals, • the device added to the Z-Wave network, • parameter 151 is set to 5 or 6. 2.

  • Page 13: 6: Operating Roller Blinds

    #6: Operating roller blinds The device allows for connecting switch to the S1 and S2 terminals. NOTE These may be momentary (recommended) or toggle switches. Momentary switch Switch buttons are responsible for managing the blind’s movement. After releasing Description: switch a spring auto- matically pushes back –...

  • Page 14: 7: Operating Gate Motors

    #7: Operating gate motors The device allows to operate gate motors. NOTE Gate motor should be connected to Q1 and Q2 terminals according Momentary switch to installation diagram. After releasing switch a spring auto- When operating gates a momentary switch may be connected to S1 matically pushes back terminal.

  • Page 15: 8: Menu

    #8: Menu Menu allows to perform Z-Wave network actions. In order to use the menu: 1. Switch off the mains voltage (disable the fuse). 2. Remove the device from the wall switch box. 3. Switch on the mains voltage. 4. Press and hold the B-button to enter the menu. 5.
  • Page 16 #9: Resetting to factory defaults Resetting the device to factory defaults: NOTE Reset procedure allows to restore the device back to its factory set- Resetting the device is tings, which means all information about the Z-Wave controller and not the recommend- user configuration will be deleted.

  • Page 17: 10: Power And Energy Consumption

    #10: Power and energy consumption The device allows for the active power and energy consumption mon- NOTE itoring. Data is sent to the main Z-Wave controller. Power measurement Measuring is carried out by the most advanced micro-controller tech- contain mains nology, assuring maximum accuracy and precision (+/- 1% for loads voltage fluctuations...

  • Page 18: 11: Associations

    #11: Associations Association (linking devices) - direct control of other devices within the Z-Wave system network e.g. Dimmer, Relay Switch, Roller Shutter or scene (may be controlled only through a Z-Wave controller). The device provides the association of 3 groups: 1st association group –...

  • Page 19: 12: Z-Wave Range Test

    #12: Z-Wave range test The device has a built in Z-Wave network main controller’s CAUTION range tester. To make Z-Wave range test possible, the de- vice must be added Follow the below instructions to test the main controller’s range: to the Z-Wave control- ler.

  • Page 20: 13: Activating Scenes

    #13: Activating scenes The device can activate scenes in the Z-Wave controller by sending scene ID and attribute of a specific action using central Scene com- mand class. By default scenes are not activated, set parameters 40 and 41 to ena- ble scene activation for selected actions.

  • Page 21: 14: Z-Wave Specification

    #14: Z-Wave specification Endpoint 1: Generic Device class: GEnERIc_TyPE_SWITch_MulTIlEVEl Specific Device class: SPEcIFIc_TyPE_clASS_B_MOTOR_cOnTROl Description: represents switch connected to the S1 terminal. Endpoint 2: Generic Device class: GEnERIc_TyPE_SWITch_MulTIlEVEl Specific Device class: SPEcIFIc_TyPE_clASS_B_MOTOR_cOnTROl Description: represents switch connected to the S2 terminal. Switch Multilevel Command Class values refers to: •...
  • Page 22 Multichannel Command Class: command class Version Secure Endpoint 1 ZWAVEPluS_InFO [0x5E] SWITch_MulTIlEVEl [0x26] ASSOcIATIOn [0x85] MulTI_chAnnEl_ASSOcIATIOn [0x8E] ASSOcIATIOn_GRP_InFO [0x59] SEcuRITy [0x98] SEcuRITy_2 [0x9F] SuPERVISIOn [0x6c] METER [0x32] nOTIFIcATIOn [0x71] APPlIcATIOn_STATuS [0x22] Endpoint 2 ZWAVEPluS_InFO [0x5E] SWITch_MulTIlEVEl [0x26] ASSOcIATIOn [0x85] MulTI_chAnnEl_ASSOcIATIOn [0x8E] ASSOcIATIOn_GRP_InFO [0x59] SEcuRITy [0x98] SEcuRITy_2 [0x9F]...
  • Page 23 Protection CC: Protection command class allows to prevent local or remote control of the device. Type of protection State Description Unprotected - The device is not pro- local tected, and may be operated normally via S1 or S2 No operation possible – S1 and S2 local cannot change relay state, any other functionality is available (menu)

  • Page 24: 15: Advanced Parameters

    #15: Advanced parameters FIBARO Roller Shutter 3 allows to customize its operation to user’s needs. The settings are available in the FIBARO interface as simple options that may be chosen by selecting the appropriate box. In order to configure the module (using the home center controller): 1.
  • Page 25 ALARM CONFIGURATION 30. Alarm configuration - 1st slot NOTE This parameter determines to which alarm frames and how the device Alarm with lower should react. The parameters consist of 4 bytes, three most significant number has the high- bytes are set according to the official Z-Wave protocol specification. er priority, thus first alarm will override Available settings: 1B [MSB] - notification Type...
  • Page 26 32. Alarm configuration - 3rd slot (Smoke) This parameter determines to which alarm frames and how the device should react. The parameters consist of 4 bytes, three most significant bytes are set according to the official Z-Wave protocol specification. Available settings: 1B [MSB] - notification Type 2B - notification Status 3B - Event/State Parameters 4B [lSB] - action:...
  • Page 27 34. Alarm configuration - 5th slot (Heat) This parameter determines to which alarm frames and how the device should react. The parameters consist of 4 bytes, three most significant bytes are set according to the official Z-Wave protocol specification. Available settings: 1B [MSB] - notification Type 2B - notification Status 3B - Event/State Parameters 4B [lSB] - action:...
  • Page 28 POWER AND ENERGY REPORTING CONFIGURATION 60. Measuring power consumed by the device itself This parameter determines whether the power metering should in- clude the amount of active power consumed by the device itself. Available settings: 0 - function inactive 1 - function active Default setting: Parameter size: 1 [byte]...
  • Page 29 ROLLER SHUTTER OPERATION CONFIGURATION 150. Force calibration By setting this parameter to 2 the device enters the calibration mode. The parameter relevant only if the device is set to work in positioning mode (parameter 151 set to 1, 2 or 4). Available settings: 0 - device is not calibrated 1 - device is calibrated 2 - force device calibration...
  • Page 30 153. Set slats back to previous position NOTE For Venetian blinds (parameter 151 set to 2) the parameter determines If parameter 20 is set slats positioning in various situations. to 1 (toggle switch), change value of pa- The parameter is irrelevant for other modes. rameter 153 to 0 for Available settings: 0 –...
  • Page 31 157. Time of down movement This parameter determines time needed for roller blinds to reach the bottom. For modes with positioning value is set automatically during calibra- tion, otherwise it must be set manually. Available settings: 1-90000 (0.01 - 900.00s, every 0.01s) - move- ment time Default setting: 6000 (60s)

  • Page 32: 16: Specifications

    #16: Specifications Power supply: 100-240V~ 50/60 hz Rated load current: 4.2A for lamps and resistive loads 1.7A for motors with compensated power factor (inductive loads) Supported motor type: single-phase Ac motors Required limit switches: electronic or mechanic Power consumption: up to 0.8W Operating temperature: 0-35°c Operating humidity:...

  • Page 33: 17: Regulations

    All information, including, but not limited to, information regarding the features, functionality, and/or other product specification are subject to change without notice. Fibaro reserves all rights to revise or upda- te its products, software, or documentation without any obligation to notify any individual or entity.
  • Page 34 Directive 2014/53/Eu. The full text of the Eu declaration of conformity is available at the following internet address: www.manuals.fibaro.com WEEE Directive Compliance Device labelled with this symbol should not be disposed with other household wastes.
