Roller Shutter 3
SKU: FIBEFGR-223
Quickstart
This is a secure Roller Shutter for Europe. To run this device please connect it to your mains
power supply. To add this device to your network execute the following action:
Quickly, triple click the S1 switch.
Important safety information
Please read this manual carefully. Failure to follow the recommendations in this manual may be
dangerous or may violate the law. The manufacturer, importer, distributor and seller shall not be
liable for any loss or damage resulting from failure to comply with the instructions in this manual
or any other material. Use this equipment only for its intended purpose. Follow the disposal
instructions. Do not dispose of electronic equipment or batteries in a fire or near open heat
sources.
What is Z-Wave?
Z-Wave is the international wireless protocol for communication in the Smart Home. This device
is suited for use in the region mentioned in the Quickstart section.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Roller Shutter 3 and is the answer not in the manual?

Questions and answers

Related Manuals for FIBARO Roller Shutter 3

Summary of Contents for FIBARO Roller Shutter 3

  • Page 1 Fibaro Roller Shutter 3 SKU: FIBEFGR-223 Quickstart This is a secure Roller Shutter for Europe. To run this device please connect it to your mains power supply. To add this device to your network execute the following action: Quickly, triple click the S1 switch.

  • Page 2: Product Description

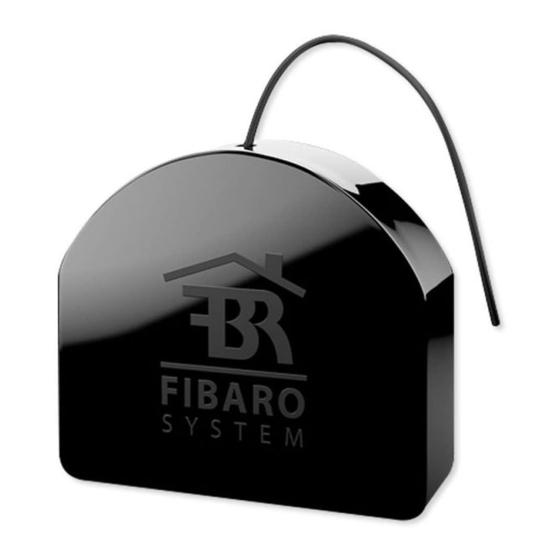

    For more information about Z-Wave technology, devices, white papers etc. please refer to www.z-wave.info. Product Description FIBARO Roller Shutter 3 is a device designed to control roller blinds, awnings, venetian blinds, gates and other single phase, AC powered devices. Roller Shutter 3 allows precise positioning of roller blinds or venetian blind lamellas.

  • Page 3: Installation

    2. Wait for the LED indicator to glow yellow. 3. Quickly release and click the B-button again. 4. After few seconds the device will be restarted, which is signalled with the red LED indicator color. Safety Warning for Mains Powered Devices ATTENTION: only authorized technicians under consideration of the country-specific installation guidelines/norms may do works with mains power.
  • Page 4 L – terminal for live lead N – terminal for neutral lead B – service button (used to add/remove the device and navigate the menu) Installation of blinds with built-in driver Installation of gate motors  Installation of the gate driver may be performed only by certified professionals. ...
  • Page 5 Calibration Calibration is a process during which a device learns the position of the limit switches and a motor characteristic. Calibration is mandatory in order for the device to correctly recognize a roller blind position. The procedure consists of an automatic, full movement between the limit switches (up, down, and up again).
  • Page 6 the device added to the Z-Wave network, parameter 151 is set to 1 or 2. 2. Press and hold UP or DOWN switch for at least 3 seconds 3. Press and hold the same switch again for at least 3 seconds. 4.
  • Page 7 blinds are calibrated. 2. By default, time of transition between extreme positions is set to 150 (1.5 seconds) in parameter 152. 3. Turn slats between extreme positions by holding UP or DOWN switch: If after full cycle a blind starts moving up or down – decrease the value of parameter 152, If after full cycle the slats do not reach end positions –...

  • Page 8: Product Usage

    Exclusion Quickly, triple click the S1 switch. Product Usage Range test To make Z-Wave range test possible, the device must be added to the Z-Wave controller. Testing may stress the network, so it is recommended to perform the test only in special cases. The device has a built in Z-Wave network main controller’...

  • Page 9: Quick Troubleshooting

    Visual indicator pulsing violet – the device does communicate at the maximum distance of the Z-Wave network. If connection proves successful it will be confirmed with a yellow glow. It’ s not recommended to use the device at the range limit. Visual indicator glowing red –...

  • Page 10: Configuration Parameters

    Group Number Maximum Nodes Description Lifeline Roller Shutter Slats position control Configuration Parameters Z-Wave products are supposed to work out of the box after inclusion, however certain configuration can adapt the function better to user needs or unlock further enhanced features. IMPORTANT: Controllers may only allow configuring signed values.
  • Page 11 This parameter allows reversing the operation of Q1 and Q2 without changing the wiring (in case of invalid motor connection) to ensure proper operation. Size: 1 Byte, Default Value: 0 Setting Description default (Q1 – 1st channel, Q2 – 2nd channel) reversed (Q1 –...
  • Page 12 For a setting of this parameter, please refer to the manufacturer‘ s manual. Size: 4 Byte, Default Value: Setting Description Parameter 35: Alarm configuration - 5th slot (Heat) This parameter determines to which alarm frames and how the device should react. The parameters consist of 4 bytes, three most significant bytes are set according to the official Z- Wave protocol specification.
  • Page 13 Setting Description function inactive function active Parameter 61: Power reports - on change This parameter determines the minimum change in consumed power that will result in sending new power report to the main controller. For loads under 50W, the parameter is not relevant and reports are sent every 5W change. Power reports are sent no often than every 30 seconds.
  • Page 14 periodic reports are disabled 30 - 32400 report interval in seconds Parameter 150: Force calibration By setting this parameter to 2 the device enters the calibration mode. The parameter relevant only if the device is set to work in positioning mode (parameter 151 set to 1, 2 or 4). Size: 1 Byte, Default Value: 0 Setting Description...
  • Page 15 The parameter is irrelevant for other modes. Size: 1 Byte, Default Value: 1 Setting Description slats return to previously set position only in case of the main controller operation. slats return to previously set position in case of the main controller operation, momentary switch operation, or when the limit switch is reached.

  • Page 16: Technical Data

    This parameter determines time needed for roller blinds to reach the bottom. For modes with positioning value is set automatically during calibration, otherwise, it must be set manually. Size: 4 Byte, Default Value: 6000 Setting Description 1 - 90000 (0.01 – 900.00s, every 0.01s) – movement time Technical Data Dimensions 42.50 x 38.25 x 20.30 mm...

  • Page 17: Explanation Of Z-Wave Specific Terms

     Protection  Firmware Update Md  Association  Version  Multi Channel Association  Security  Transport Service  Security 2 Controlled Command Classes  Transport Service  Security 2 Explanation of Z-Wave specific terms Controller — is a Z-Wave device with capabilities to manage the network. Controllers ...
