Bridge Plates BP-12/BP-13

43

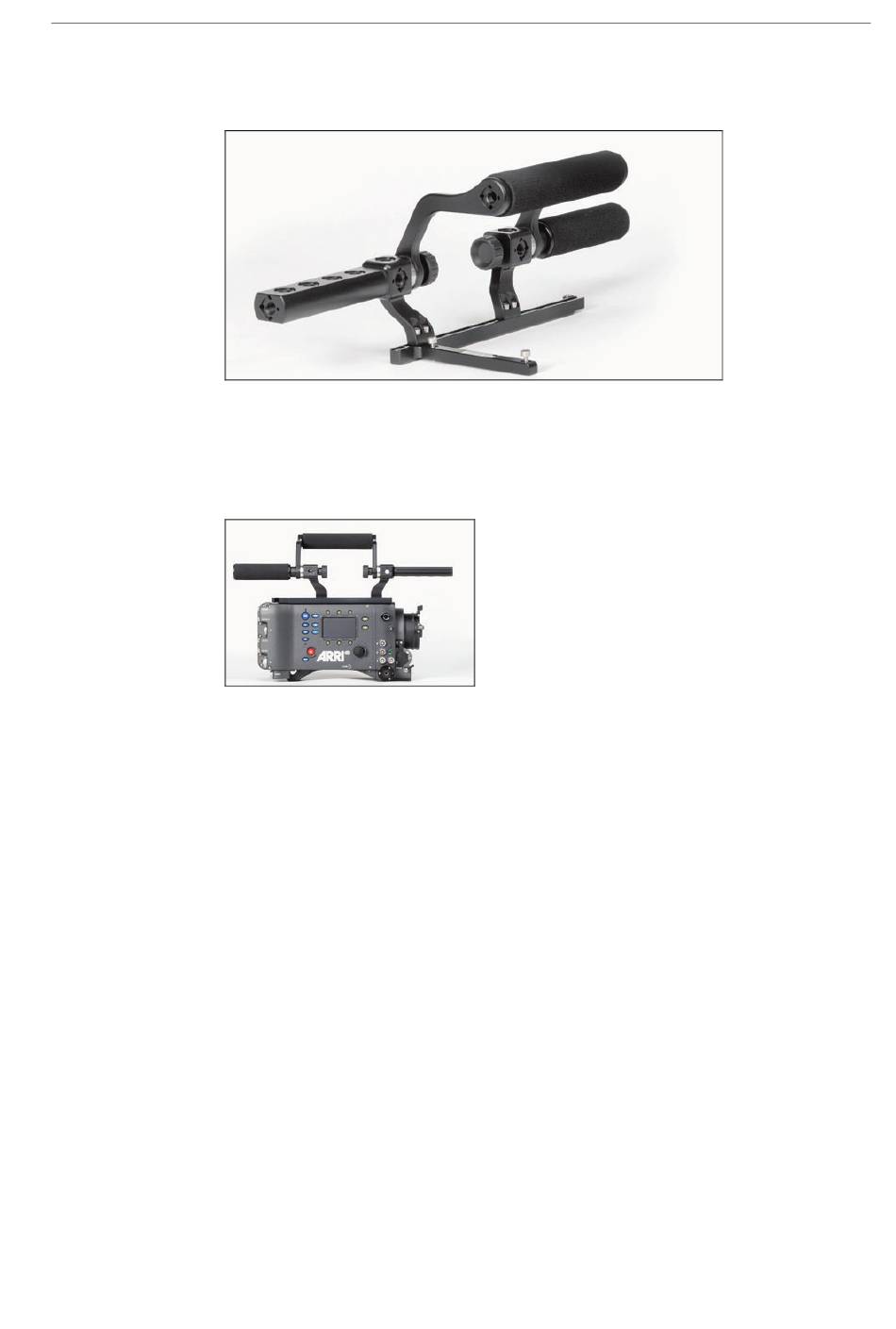

Figure 24: SCH-1
Figure 25: Camera with SCH-1, side view
8.6 Bridge Plates BP-12/BP-13
The bridge plate BP-12 for 19 mm studio rods has been specifically
developed for ALEXA. It mounts directly to the camera body using two
3/8"/16 screws and ensures that support rods, matte boxes and follow
focus units are positioned properly in regards to the optical center of
the camera, just like all other ARRI cameras.
