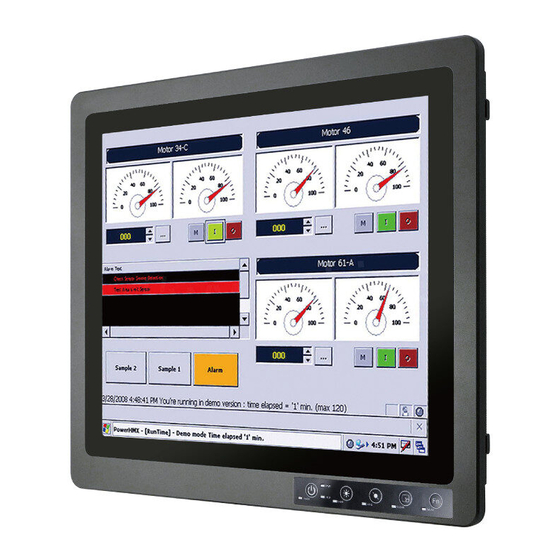

Winmate R19L100-67FTP User Manual

Winmate R19L100-67FTP User Manual

19 inch g-win full ip67 display

Advertisement

Quick Links

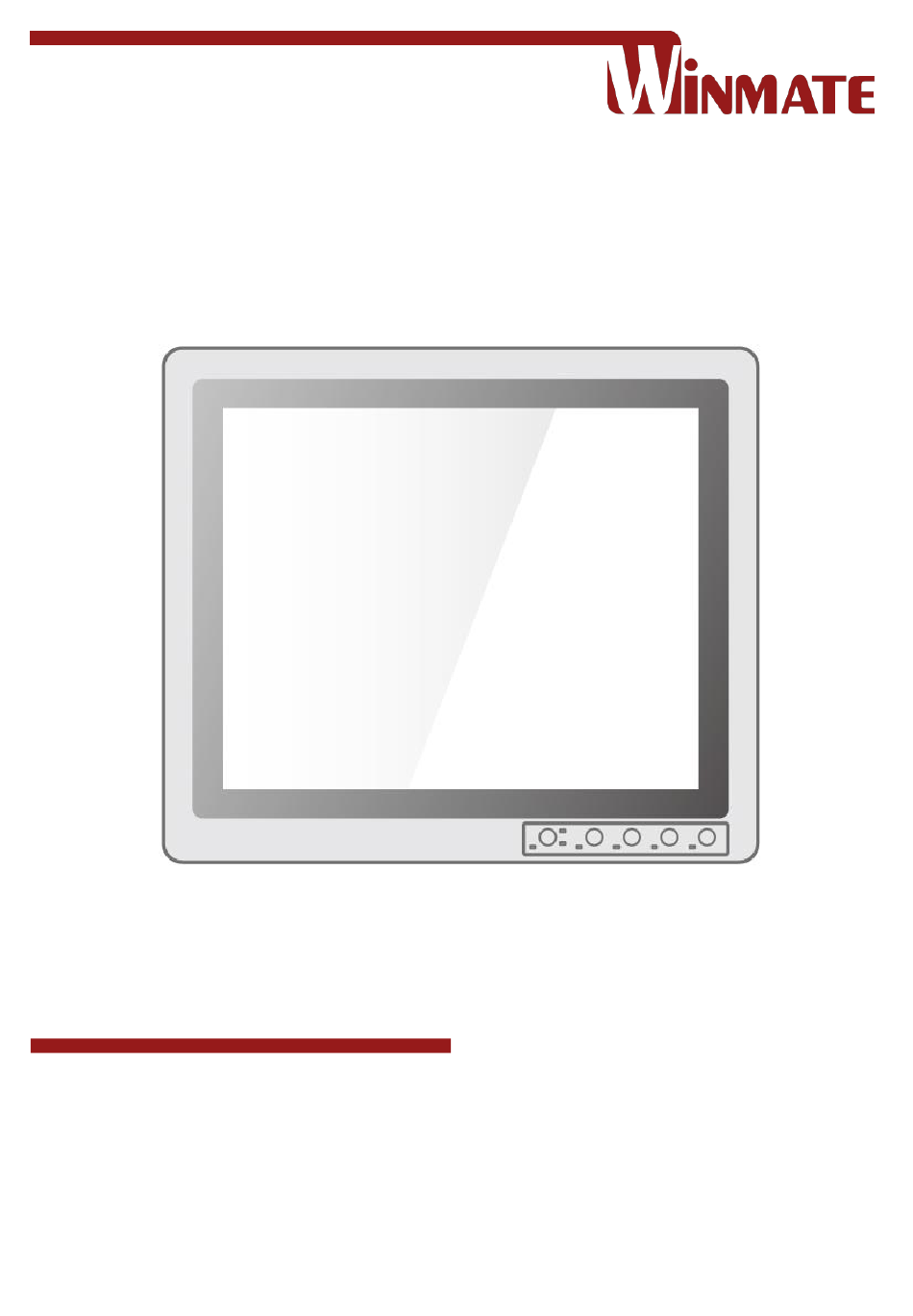

19" G-WIN Full IP67 Display
R19L100-67FTP
User Manual
Version 1.0
Document Part Number: 91521110103X
Please read this instructions before operating the device and retain them for future reference.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the R19L100-67FTP and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Winmate R19L100-67FTP

  • Page 1 19” G-WIN Full IP67 Display R19L100-67FTP User Manual Version 1.0 Document Part Number: 91521110103X Please read this instructions before operating the device and retain them for future reference.
  • Page 2: Table Of Contents

    Contents Preface ........................... 3 About This User Manual ..................... 6 Chapter 1: Introduction ....................7 1.1 About G-WIN IP67 Display ................... 8 1.2 Product Features ....................8 1.3 Package Overview ....................8 1.4 Description of Parts ....................9 1.6 Physical Buttons ....................10 1.7 LED Indicators ....................
  • Page 3: Preface

    Preface Preface Copyright Notice No part of this document may be reproduced, copied, translated, or transmitted in any form or by any means, electronic or mechanical, for any purpose, without the prior written permission of the original manufacturer. Trademark Acknowledgement Brand and product names are trademarks or registered trademarks of their respective owners.
  • Page 4 Advisory Conventions Four types of advisories are used throughout the user manual to provide helpful information or to alert you to the potential for hardware damage or personal injury. These are Notes, Important, Cautions, and Warnings. The following is an example of each type of advisory. Note: A note is used to emphasize helpful information Important:...
  • Page 5 Preface Safety Information Warning!/ Avertissement! Always completely disconnect the power cord from your chassis whenever you work with the hardware. Do not make connections while the power is on. Sensitive electronic components can be damaged by sudden power surges. Only experienced electronics personnel should open the PC chassis. Toujours débrancher le cordon d’alimentation du chassis lorsque vous travaillez sur celui-ci.
  • Page 6: About This User Manual

    About This User Manual This User Manual provides information about using the Winmate® G-WN Military Display. The documentation set provides information for specific user needs, and includes:  G-WIN IP67 Display User Manual – contains detailed description on how to use the display, its components and features.
  • Page 7: Chapter 1: Introduction

    Chapter 1: Introduction Chapter 1: Introduction This chapter gives you product overview, describes features and hardware specification. You will find all accessories that come with the display device in the packing list. Mechanical dimensions and drawings included in this chapter. Please read this instructions before operating the device and retain them for future reference.
  • Page 8: About G-Win Ip67 Display

    ® Congratulations on purchasing Winmate G-WIN IP67 Display. Winmate 19" IP67 Display is designed to meet IP67/NEMA 6 with dust water resistant protection and anti-corrosion feature, the display could fulfill even the highest demands of all-day field use and fit into a wide variety of applications, such as avionics military, marine etc.
  • Page 9: Description Of Parts

    Chapter 1: Introduction 1.4 Description of Parts This section describes physical appearance of the G-WIN IP67 Display. All dimensions shown in mm. R19L100-67FTP Item Description Power Input - Military grade lockable power connector ❶ (MS27467T9F98S) that accept 9-36V DC power input.
  • Page 10: Physical Buttons

    1.6 Physical Buttons Physical buttons are located in front or on the rear side of the Display. Physical Buttons Icon Function Decrease the value / Select up Increase the value / Select down Power switch Exit / Auto adjustment Enter / Call main OSD menu 1.7 LED Indicators LED indicators are located on the OSD control panel the rear side of the display.
  • Page 11: Chapter 2: Installation

    Chapter 2: Installation Chapter 2: Installation This chapter provides hardware installation instructions and mounting guide for all available mounting options. Pay attention to cautions and warning to avoid any damages...
  • Page 12: Cable Mounting Considerations

    2.1 Cable Mounting Considerations For a nice look and safe installation, make sure cables are neatly hidden behind the display. Warning!/ Avertissement! Observe all local installation requirements for connection cable type and protection level. Suivre tous les règlements locaux d’installations, de câblage et niveaux de protection.
  • Page 13 Chapter 2: Installation Connecting to Power Source Connect a power cable to military power connector located on the back side of the display. Connect open wires to the source of power. Warning!/ Avertissement! Serious injury due to shock is possible if unit is wired incorrectly or connected to voltage exceeding the input voltage range.
  • Page 14: Mounting Guide

    2.3 Mounting Guide 19 G-WIN IP67 Display supports panel mount and compatible with VESA mount solution. Follow the instruction below to complete mounting. 2.3.1 Panel Mount Follow instructions below to mount 19” G-WIN IP67 Display into the wall. Cutout Dimensions Installation Instruction...
  • Page 15: Vesa Mount

    3. Carefully mount the device to the fixture (for ex. wall). 4. When the installation is complete, plug the power cord into a grounded AC outlet. Turn on the power. *Notice that VESA stand and mounting kit are not provided by Winmate.
  • Page 16: Connecting Peripherals

    2.4 Connecting Peripherals This Display comes with VGA/ HDMI interface located on the bottom panel. For a nice look and safe installation, make sure cables are neatly hidden behind the device. Caution/ Attention Observe all local installation requirements for connection cable type and protection level.
  • Page 17: Connector Description

    Chapter 2: Installation Connecting display to external PC via HDMI: 2.5 Connector Description The panel control port is designed for monitors that work with a VGA/ HDMI video sources. Due to the possible deviations between these signal sources, you may have to make adjustments to the monitor settings from the OSD menu when switching between these sources.
  • Page 18: Power Connector

    2.5.1 Power Connector The display has M25 type connectors. Use power cable to connect display to the source of power. The display support 9-36V DC power input. 2.5.2 USB Cable for Touch The display may have optional M25 type USB connector for touch based on your order. Use USB cable to connect touch.
  • Page 19: Vga Cable

    Chapter 2: Installation 2.5.4 VGA Cable The display has M25 type VGA connector. Use VGA cable to connect the display to other external devices.
  • Page 20: Hdmi Cable

    2.5.5 HDMI Cable The display has M25 type HDMI connector. Use HDMI cable to connect the display to other external devices.
  • Page 21: Chapter 3: Operating The Device

    Chapter 3: Operating the Device Chapter 3: Operating the Device In this chapter you will find instructions on how to operate the display.
  • Page 22: Turning On/ Off The System

    3.1 Turning On/ Off the System To turn on the system: 1. Connect VGA cable to the connector of your device. 2. Connect the other side of VGA cable to external computer. 3. Turn on the external computer. 4. The device will boot automatically when powered on. To turn on the system: 1.
  • Page 23: On-Screen Display Menu Navigation

    Chapter 3: Operating the Device 3.3 On-Screen Display Menu Navigation OSD Icon Sub-menu Settings Note BRIGHTNESS slider bar Default 50 Use to adjust the screen’s brightness. Range 0 to 100. CONTRAST slider bar Default 50 Use to adjust the screen’s contrast. Range 0 to 100. SHARPNESS slider bar Adjusts the crispness of the image.
  • Page 24 OSD Icon Sub-menu Settings Note OSD TURN OFF slider bar Turns off the OSD after a period of inactivity. The preset choices are 0-60 seconds. OSD POSITION H/ V slider bar Determines the location where the OSD appears on the screen. OSD TRANSPARENCY OFF/ TYPE1/ TYPE2 Set the transparency level of OSD.
  • Page 25: Appendix

    Appendix Appendix This chapter contains additional product information, including troubleshooting guide and frequency table...
  • Page 26: Appendix A: Hardware Specifications

    Appendix A: Hardware Specifications Model Name R19L100-67FTP Display Size/ Type 19-inch Resolution 1280 x 1024 Brightness 400 nits, optional 1000 nits Contrast Ratio 1000:1 (typ.) Viewing Angle -85~85 (H);-80~80 (V) Max Colors 16.7M Recommended 1280 x 1024 @ 60Hz~75Hz Resolution...
  • Page 27: Appendix C: Frequency Table

    Appendix Appendix C: Frequency Table The choice of supported modes depends on the monitor native resolution. Refer to the table below for more information about available input signals. Signal name Vertical Frequency (Hz) ✔ ✔ ✔ ✔ 640 x 480 ✔...
  • Page 28: Appendix D: Military Grade Compliance

    Appendix D: Military Grade Compliance This section includes description of military grade compliance. Military Grade EMC Compliance EMC (MIL-STD 461E/F Compliance) EMC Test Spec Type of Test Frequency Range Requirement 30Hz ~ 1kHz :110 dB 1k- CE101 Conducted Emissions 30Hz ~10kHz 10k:110-90 dB 10kHz ~ 500KHz: 100-66dB, CE102...
  • Page 29: Appendix E: Remote Control Commands

    Appendix Appendix E: Remote Control Commands Remote Set Control Command Function Length Command index Value Checksum(*1) 1 Auto 0x05 0x40 0x01 0=Auto 0xBA=Auto 2 Recall 0x05 0x40 0x02 0=Recall 0xB9=Recall 3 White Balance 0x05 0x40 0x03 0=White Balance 0xB8=White Balance 0=VGA 0xB7=VGA 2=CVBS 1...
  • Page 30 Remote Get Control Command Command(Tx) Acknowledgement(Rx) Checksum Checksum Function Length Command index Length index Value (*1) (*1) 0=VGA 0xF8=VGA 2=CVBS 1 0xF6=CVBS 1 Main Input 0x04 0x30 0x04 0xC8 0x04 0x04 12=CBVS2 0xE6=CVBS 2 Source 7=HDMI 0xF1=HDMI 9=SDI 0xEF=SDI 0xEC=0 ~ Brightness 0x04 0x30...
  • Page 31: Appendix F: Maintenance

    Appendix Appendix F: Maintenance This equipment is extremely rugged and does not require a lot of maintenance. Remember that electrical equipment should be handled with care and used accordingly to its specifications. Cleaning the Display Screen  Wipe the screen with a clean, soft, lint-free cloth. This removes dust and other particles. Do not use acetone, ethyl alcohol, toluene, ethyl acid or methyl chloride to clear the panel.
  • Page 32 Winmate Inc. 9F, No.111-6, Shing-De Rd., San-Chung District, New Taipei City 24158, Taiwan, R.O.C www.winmate.com Copyright © Winmate Inc. All rights reserved.
