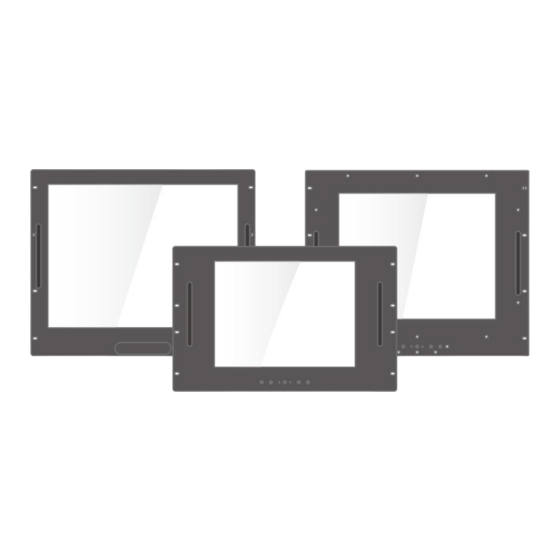

Rack mount display 15~20.1”

Advertisement

Quick Links

For more information on this
and other Winmate products,
please visit our website at:
www.winmate.com
Document Part Number: 91521110101Y
Please read this instructions before operating the device and retain them for future reference.
Rack Mount Display
User Manual
15~20.1"
V1.0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the R15L100-RKA1 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Winmate R15L100-RKA1

  • Page 1 Rack Mount Display 15~20.1” User Manual V1.0 For more information on this and other Winmate products, please visit our website at: www.winmate.com Document Part Number: 91521110101Y Please read this instructions before operating the device and retain them for future reference.
  • Page 2: Table Of Contents

    USER MANUAL CONTENTS CONTENTS PREFACE ........................- 3 - ABOUT THIS USER MANUAL .................. - 8 - CHAPTER 1: INTRODUCTION ................- 10 - 1.1 Product Features ................... - 10 - 1.2 Package Contents ..................- 11 - 1.3 Product Overview ................... - 12 - 1.4 OSD Control Panel ..................
  • Page 3: Preface

    USER MANUAL PREFACE PREFACE Copyright Notice No part of this document may be reproduced, copied, translated, or transmitted in any form or by any means, electronic or mechanical, for any purpose, without the prior written permission of the original manufacturer. Trademark Acknowledgement Brand and product names are trademarks or registered trademarks of their respective owners.
  • Page 4 USER MANUAL PREFACE Warranty Our warranty guarantees that each of its products will be free from material and workmanship defects for a period of one year from the invoice date. If the customer discovers a defect, we will, at his/her option, repair or replace the defective product at no charge to the customer, provide it is returned during the warranty period of one year, with transportation charges prepaid.
  • Page 5 USER MANUAL PREFACE Advisory Conventions Four types of advisories are used throughout the user manual to provide helpful information or to alert you to the potential for hardware damage or personal injury. These are Notes, Important, Cautions, and Warnings. The following is an example of each type of advisory. NOTE: A note is used to emphasize helpful information IMPORTANT:...
  • Page 6 USER MANUAL PREFACE Safety Information WARNING! / AVERTISSEMENT! Always completely disconnect the power cord from your chassis whenever you work with the hardware. Do not make connections while the power is on. Sensitive electronic components can be damaged by sudden power surges. Only experienced electronics personnel should open the PC chassis.
  • Page 7 USER MANUAL PREFACE Safety Precautions For your safety carefully read all the safety instructions before using the device. Keep this user manual for future reference.  Always disconnect this equipment from any AC outlet before cleaning. Do not use liquid or spray detergents for cleaning. Use a damp cloth. ...
  • Page 8: About This User Manual

    ABOUT THIS MANUAL ABOUT THIS USER MANUAL This User Manual provides information about using the Winmate® Rack Mount Display. The documentation set provides information for specific user needs, and includes:  Rack Mount Display User Manual – contains detailed description on how to use the display, its components and features.
  • Page 9: Chapter 1: Introduction

    USER MANUAL CHAPTER 1 INTRODUCTION INTRODUCTION This chapter gives you product overview, describes features and hardware specification. You will find all accessories that come with the display device in the packing list. Mechanical dimensions and drawings included in this chapter. - 9 -...
  • Page 10: Product Features

    VESA mounting with integrated bracket design for KIOSK applications. The Winmate Rack Mount Display is a microprocessor-controlled to work with 15~20.1” TFT LCD panel. It is designed to meet the demanding performance requirements of today’s business and industrial applications.
  • Page 11: Package Contents

    Male) 94E0190190P3 9B0000000418 **Notice: Screw bolts provided by Winmate only to be used to screw the display onto a console from the rear side. If you prefer your own bolts, please make sure to use M4 and 30mm in length.
  • Page 12: Product Overview

    USER MANUAL CHAPTER 1 INTRODUCTION 1.3 Product Overview This section describes physical appearance of the Rack Mount Display. NOTE: Notice that standard input terminals include VGA and HDMI. Your device may be equipped with DVI, S-Video or Composite input terminals based on your order. Notice that input and output connectors vary by product size and specifications.
  • Page 13 CHAPTER 1 INTRODUCTION Refer to the table below for a unit dimensions. Dimensions VESA Model Name (W x H x D, mm) (W x H, mm) R15L100-RKA1 482x310x58.8 75 x 75 R15L600-RMC3 482x310x56.8 75 x 75 R17L500-RKM1 482x399x64 100 x 100, 75 x75...
  • Page 14: Osd Control Panel

    USER MANUAL CHAPTER 1 INTRODUCTION 1.4 OSD Control Panel 1.4.1 Control Buttons OSD control panel varies by product specifications. Type A Icon Function Decrease the value / Select up Increase the value / Select down Power switch Select left Select right / Call main OSD menu 1.4.2 LED Indicators LED indicators are located on the OSD control panel the rear side of the display.
  • Page 15: Chapter 2: Installation

    USER MANUAL CHAPTER 2 INSTALLATION INSTALLATION This chapter provides hardware installation instructions and mounting guide for all available mounting options. Pay attention to cautions and warning to avoid any damages. - 15 -...
  • Page 16: Wiring Requirements

    USER MANUAL CHAPTER 2 INSTALLATION CHAPTER 2: INSTALLATION This chapter provides hardware installation instructions and mounting guide for all available mounting options. Pay attention to cautions and warning to avoid any damages 2.1 Wiring Requirements The following common safety precautions should be observed before installing any electronic device: ...
  • Page 17: Mounting Guide

    The Rack Mount Display comes with clamp mounts that enable you to install the unit onto a wall (where space has been cut out to accommodate the rest of the hardware). Winmate provides VESA and Wall Mount Kits by request.
  • Page 18: Vesa Mounting

    Rack Mount Display comes with VESA Mount holes for mounting. Installation Instruction: 1. Screw VESA bracket to the fixture (ex. swing arm) with four VESA screws. 2. Place the device on VESA bracket. Notice that VESA stand and mounting kit are not provided by Winmate. - 18 -...
  • Page 19: Cable Mounting Considerations

    USER MANUAL CHAPTER 2 INSTALLATION 2.2 Cable Mounting Considerations For a nice look and safe installation, make sure cables are neatly hidden behind the device. CAUTION/ ATTENTION Observe all local installation requirements for connection cable type and protection level. Suivre tous les règlements locaux d’installations, de câblage et niveaux de protection.
  • Page 20: Connecting Peripherals

    USER MANUAL CHAPTER 2 INSTALLATION 2.4 Connecting Peripherals The panel control port is designed for monitors that work with a variety of compatible video sources. Due to the possible deviations between these signal sources, you may have to make adjustments to the monitor settings from the OSD menu when switching between these sources.
  • Page 21: Hdmi Connector

    USER MANUAL CHAPTER 2 INSTALLATION 2.4.2 HDMI Connector Plug HDMI signal cable to the HDMI connector on the rear side of PC system, and plug the other end to the monitor. Pin Assignment and signal names for HDMI connector Pin № Pin №...
  • Page 22: S-Video

    USER MANUAL CHAPTER 2 INSTALLATION 2.4.4 S-Video Notice that S-Video is an optional connector and may not be present in your device. Use Mini-DIN connector to connect S-Video to the display. Pin Assignment and signal names for S-Video connector Pin № Pin №...
  • Page 23 USER MANUAL CHAPTER 3 OPERATING THE DEVICE OPERATING THE DEVICE This chapter provides detailed information on how to operate the display. - 23 -...
  • Page 24: Chapter 3: Operating The Device

    USER MANUAL CHAPTER 3 OPERATING THE DEVICE CHAPTER 3: OPERATING THE DEVICE In this chapter you will find instructions on how to operate the display. 3.1 Turning on the System To turn on the system: 1. Connect the power adapter cable to the DC IN of the display. 2.
  • Page 25: Osd Menu Navigation

    USER MANUAL CHAPTER 3 OPERATING THE DEVICE 3.2 OSD Menu Navigation BRIGHTNESS BRICONTRAST CONTRAST Only support VGA mode POSITION H position V position Only support VGA mode Auto Adjustment IMAGE Clock Phase White Balance USER 9300K COLOR 6500K ADC RIGHTNESS VR Brightness OPTION Volume...
  • Page 26 USER MANUAL CHAPTER 3 OPERATING THE DEVICE BRICONTRAST OSD Icon Sub-menu Settings Note BRIGHTNESS slider bar Default 50 Use to adjust the screen’s brightness. Range 0 to 100 CONTRAST slider bar Default 50 BRICONTRAST Use to adjust the screen’s contrast. Range 0 to 100 POSITION (VGA mode only) OSD Icon Sub-menu...
  • Page 27 USER MANUAL CHAPTER 3 OPERATING THE DEVICE GAMMA OSD Icon Sub-menu Settings Note Default GAMMA 0 Select and execute GAMMA0 Choose the parameter of GAMMA 0 as default setting. GAMMA 1 Select and execute GAMMA Choose the parameter of GAMMA 1 as default setting. GAMMA 2 Select and execute Choose the parameter of GAMMA 2 as default setting.
  • Page 28: Chapter 4: Troubleshooting

    USER MANUAL CHAPTER 4 TROUBLESHOOTING TROUBLESHOOTING This chapter contains troubleshooting information. Check this guide before calling for repairs. - 28 -...
  • Page 29: Troubleshooting Guide

    USER MANUAL CHAPTER 4 TROUBLESHOOTING CHAPTER 4: TROUBLESHOOTING This chapter contains troubleshooting information. Check this guide before calling for repairs. 4.1 Troubleshooting Guide If your monitor fails to operate correctly, check the following chart for possible solution before calling for repairs: Condition Check Point •...
  • Page 30: Appendix A: Frequency Table

    USER MANUAL APPENDIX A FREQUENCY TABLE FREQUENCY TABLE This section includes supported frequency range of available video inputs. Appendix - 30 -...
  • Page 31 USER MANUAL APPEDIX A FREQUENCY TABLE APPENDIX A: FREQUENCY TABLE The choice of supported modes depends on the monitor native resolution. Refer to the table below for more information about available input signals. Vertical Frequency Signal name HDMI 1.4 (Hz) ✔...
  • Page 32 Winmate Inc. 9F, No.111-6, Shing-De Rd., San-Chung District, New Taipei City 24158, Taiwan, R.O.C Tel: 886-2-8511-0288 Fax: 886-2-8511-0211 Email: sales@winmate.com.tw Official website: www.winmate.com...
