6.14 Adjusting Draper Tension

WARNING
To avoid bodily injury or death from unexpected start-up or fall of raised machine, always stop engine,
remove key, and engage safety props before going under machine for any reason.
1. Ensure the white indicator bar (A) is at the halfway point
in the window.
WARNING
Check to be sure all bystanders have cleared the area.
2. Start the engine and fully raise the header.
3. Shut down the combine and remove the key from the
ignition.
4. Engage the header safety props.
5. Ensure the draper guide (the rubber track on the
underside of the draper) is properly engaged in the
groove (A) on the drive roller.
6. Ensure the idler roller (A) is between the draper
guides (B).
214685
PERFORMING PREDELIVERY CHECKS
138

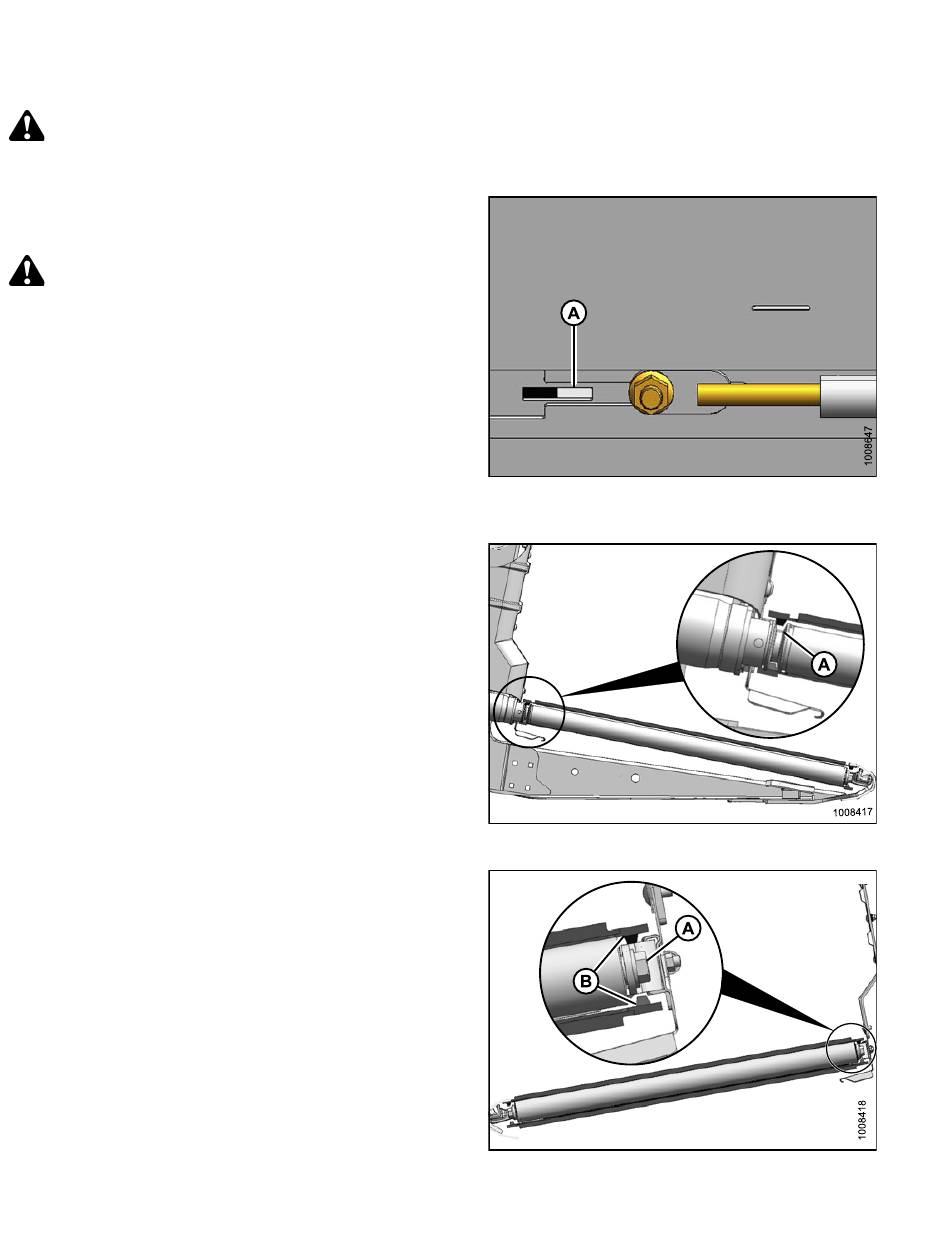

Figure 6.61: Left Side Tension Adjuster Shown –
Right Side Opposite
Figure 6.62: Drive Roller
Figure 6.63: Idler Roller
