MESH FILTERS

NOTE: prior to use, remove protective film
from the filter frame.
DUCTED AND NON-DUCTED HOODS

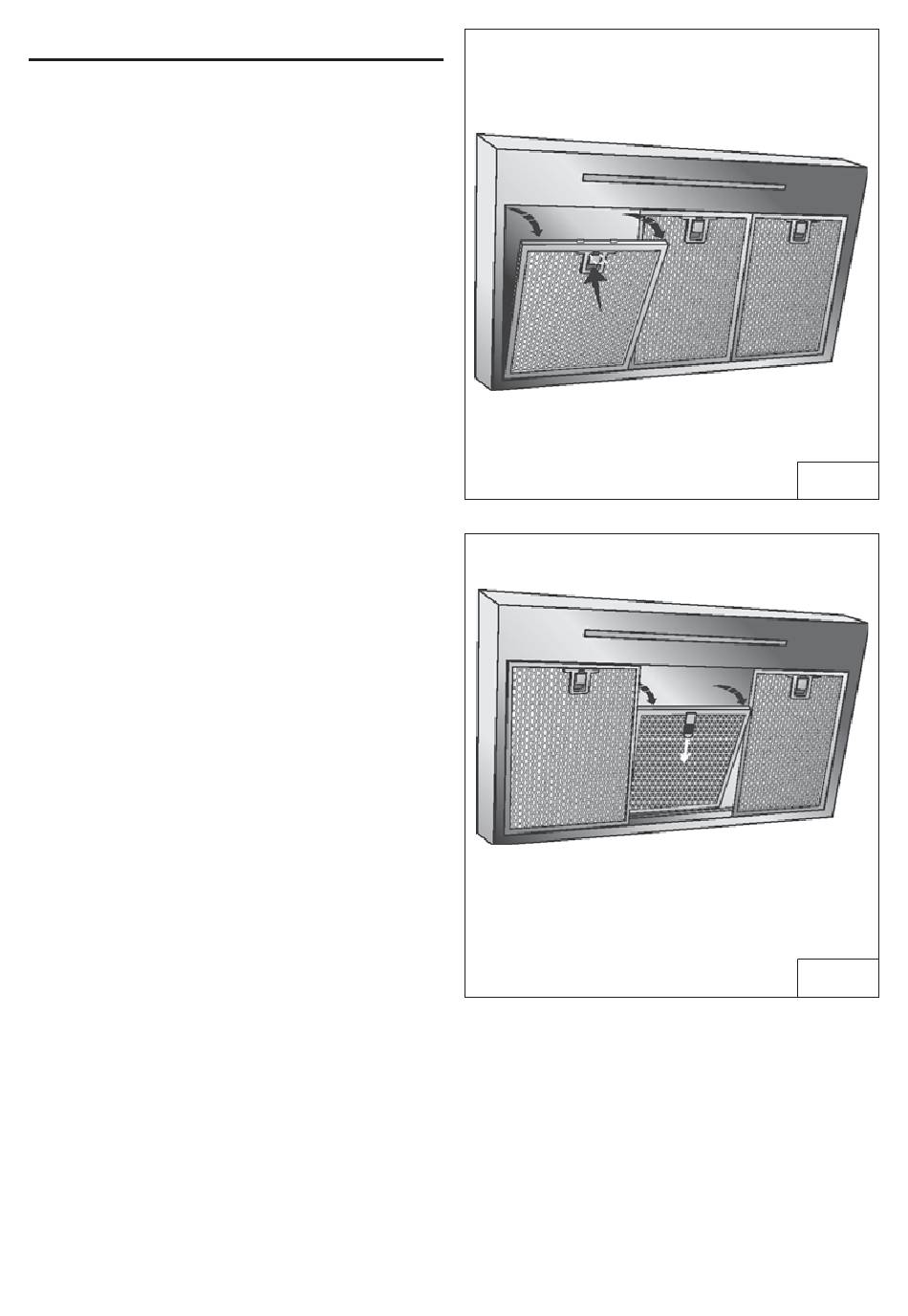

1. To remove the MESH filter, pull down on
latch tab to disengage the filter from the
hood. Tilt the filter downward and
remove (Fig.34).
2. To install the MESH filter, align rear filter
tabs with slots in the hood. Pull latch tab
down. Push filter into place and release
tab. Make sure the filter is securely
engaged after installation.
NON-DUCTED HOODS ONLY
1. To remove the CHARCOAL filter, grip and
push filter tab toward rear of hood. Pull
the filter down to disengage the rear filter
tabs (Fig.35).
2. To install the CHARCOAL filter, align filter
in rectangular opening. Push filter against
springs in rear of hood and press into
place. Make sure the filter is securely
engaged after assembly.
3. Install MESH filter after charcoal filter is
installed.
4. The charcoal filter replacement model is
ZOF-01AC.
- 27 -
FIG.34
FIG.35
