INSTALL
MOUNTING BRACKET
DUCTED AND NON-DUCTED

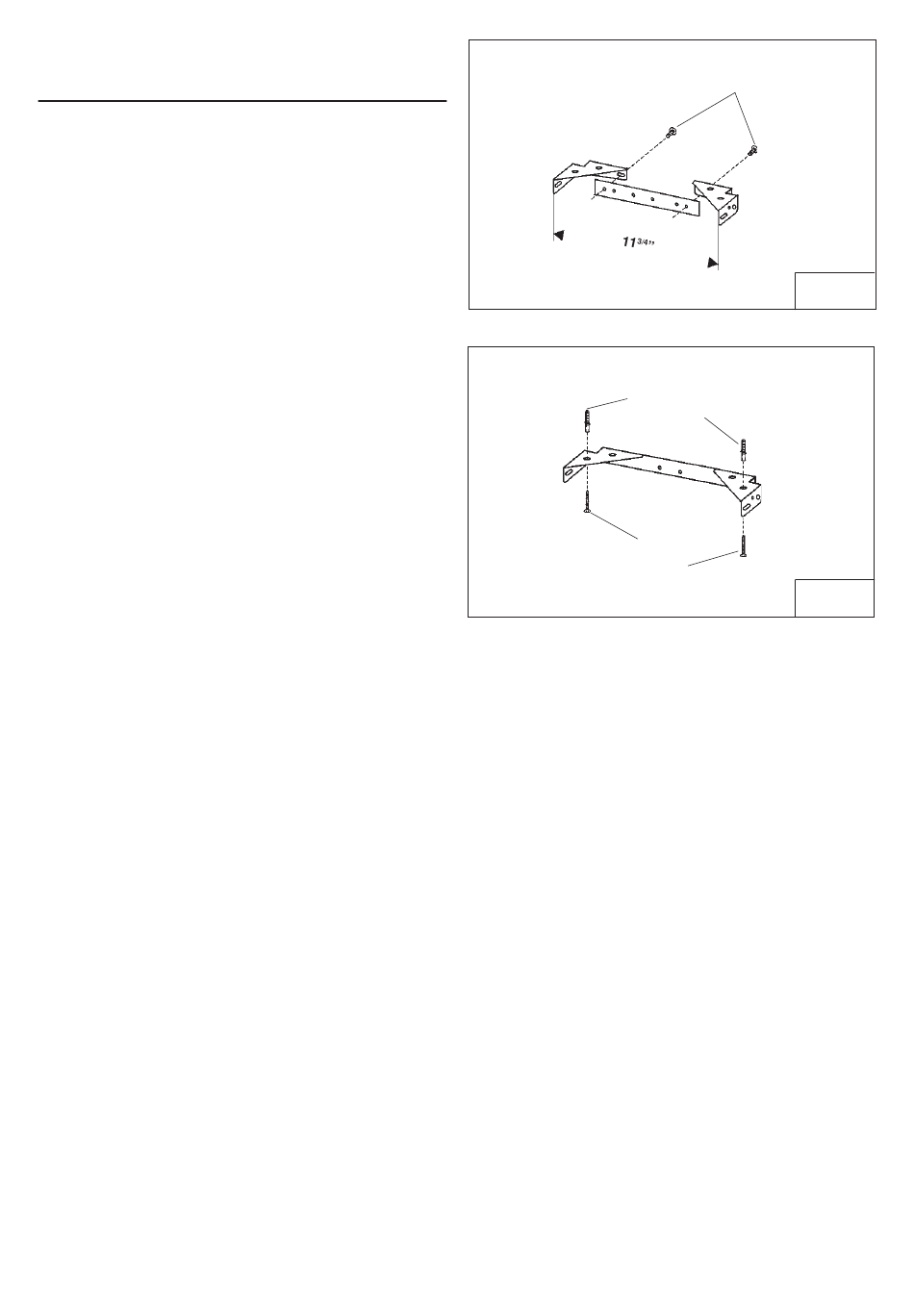

1.Assemble the duct cover mounting bracket,
adjusting outside width as shown. (Fig.24)
2.Carefully center the mounting bracket
directly over the range hood location.
3.Secure the bracket assembly to the ceiling
using (2) 4.8 x 38mm mounting screws and
drywall anchors (Fig.25). Make sure the
bracket is pushed into the corner, tight
against the wall if necessary, and centered
over the hood.
DUCT COVER
MOUNTING SCREWS
(4.8 x 38mm)
- 23 -
(2) MOUNTING SCREWS
(3.9 x 6 mm Flat Head)
FIG.24
DRYWALL
ANCHORS
FIG.25
