INSTALL THE HOOD

Remove the plastic protective film from all
exterior surfaces, duct covers and filters, prior
to final installation

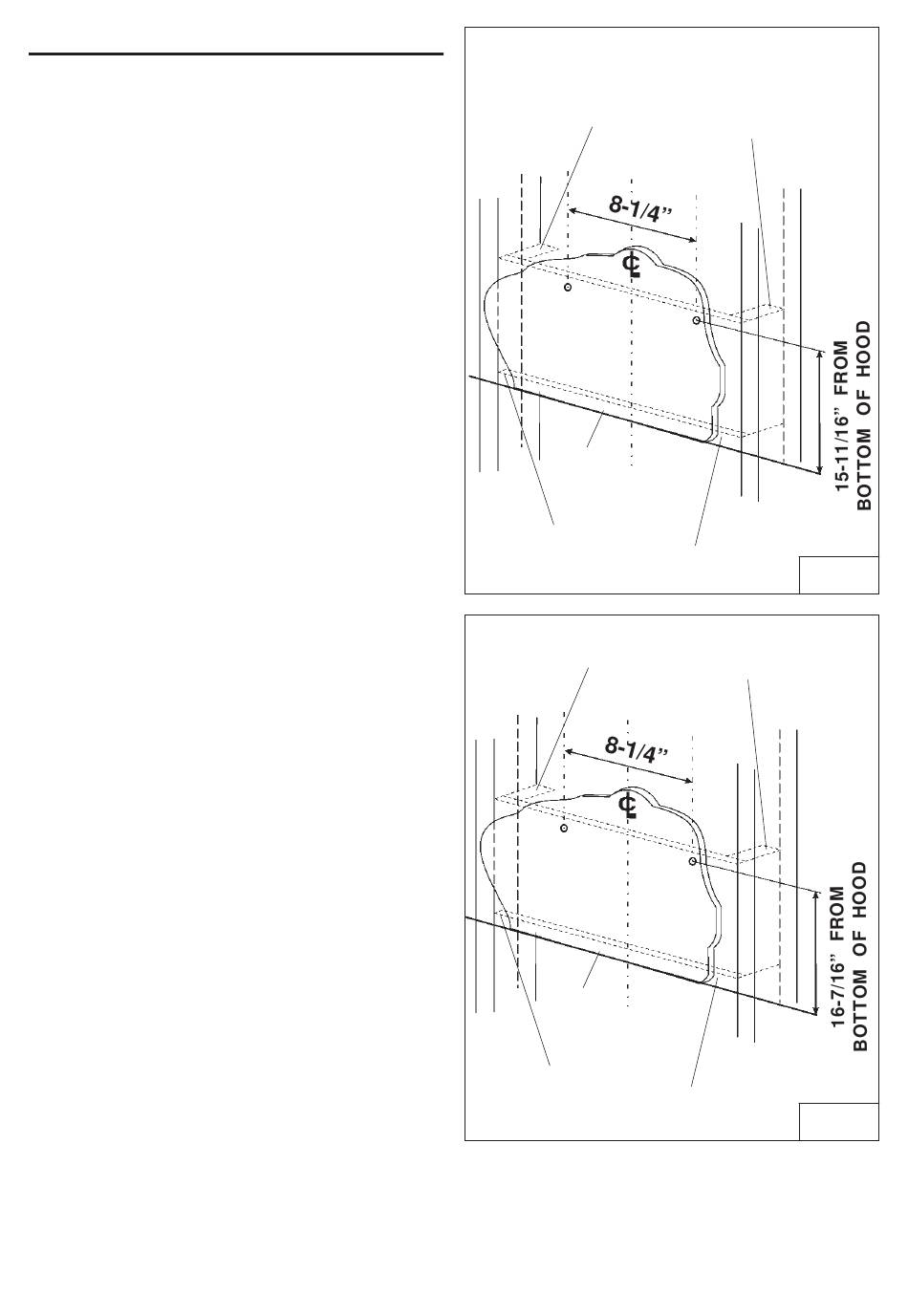

1. Construct wood wall framing that is flush with
interior surface of wall studs (Fig.22/23).
Make sure:
a) the framing is centered over installation
location.
b) the height of the framing will allow the hood to
be secured to the framing within the
dimensions shown.
2. Determine desired height over cook top
and mark hood bottom line. Install drywall
anchors and 4,8x38mm screws per
dimensions shown in Fig. 22/23.
3. Hang the hood onto the screws.
4. Tighten mounting screws. Add additional
screws through hood body as needed for
additional support.
Notes:
a. Minimum hood distance above cook top
must not be less than 24". A maximum of
36" above
recommended for best capture of cooking
impurities. Distances over 36" are at the
installer and the users discretion; and if
ceiling height and flue lenght permit.
cook top is
Model Duo
WOOD CROSS
SUPPORT BEHIND
DRYWALL
highly
Model Layers
WOOD CROSS
SUPPORT BEHIND
DRYWALL
- 22 -
FRAMING BEHIND WOOD
CROSS SUPPORT
HOOD
BOTTOM
DRYWALL
FRAMING BEHIND WOOD
CROSS SUPPORT
HOOD
BOTTOM
DRYWALL
FIG.22
FIG.23
