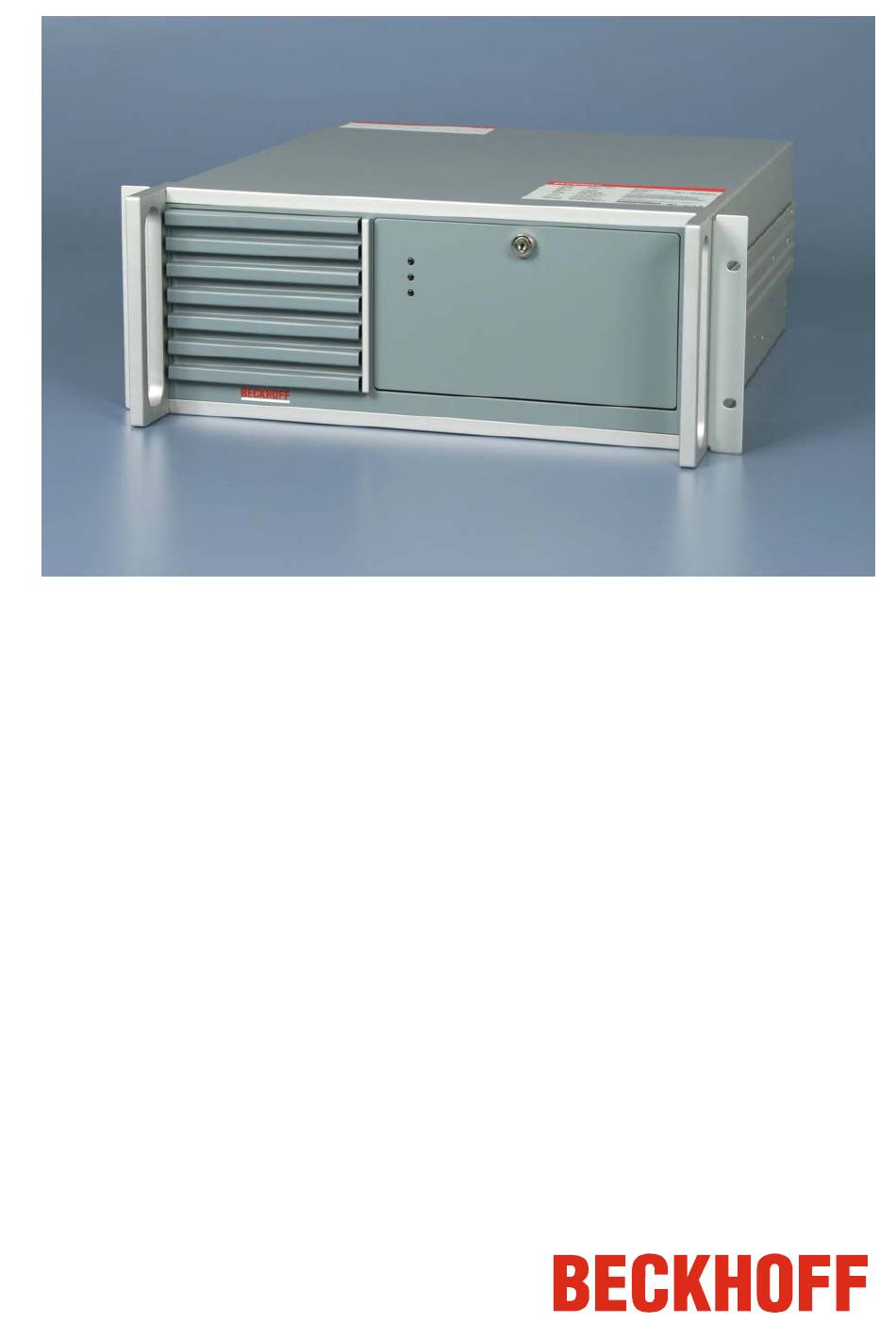

- Page 1 Installation and Operating instructions for 19 Inch Rack Mount Industrial PC C5102 from -0060 Version: 3.0 Date: 2018-02-16...
-
Page 2: Table Of Contents
First switching on and driver installation Servicing and Maintenance Cleaning the Industrial PC Servicing Replacing the battery on the motherboard Changing the filter mat Shutting down Disposal Troubleshooting Fault correction Service and Support Beckhoff's branch offices and representatives Beckhoff headquarters C5102... - Page 3 Foreword Beckhoff Support Beckhoff Service Assembly dimensions Appendix Technical data Approvals FCC: Federal Communications Commission Radio Frequency Interference Statement FCC: Canadian Notice C5102...
-
Page 4: Foreword
All the components are supplied in particular hardware and software configurations appropriate for the application. Modifications to hardware or software configurations other than those described in the documentation are not permitted, and nullify the liability of Beckhoff Automation GmbH & Co.KG. Delivery conditions In addition, the general delivery conditions of the company Beckhoff Automation GmbH &... -
Page 5: Description Of Safety Symbols
Foreword Description of safety symbols The following safety symbols are used in this operating manual. They are intended to alert the reader to the associated safety instructions. Acute risk of injury!! If you do not adhere the safety advise adjoining this symbol, there is DANGER immediate danger to life and health of individuals! Risk of injury! -
Page 6: Basic Safety Measures
Foreword Basic safety measures Only switch the PC off after Before the Industrial PC is switched off, software that is running must closing the software be properly closed. Otherwise it is possible that data on the hard disk is lost. Please read the section Switching the Industrial PC on and off. -
Page 7: Operator's Obligation To Exercise Diligence
Foreword Operator's obligation to exercise diligence The operator must ensure that • the Industrial PC is only used for its intended use (see also Product Description). • the Industrial PC is in a sound condition and in working order during operation (see also chapter Servicing and Maintenance). -
Page 8: Product Description

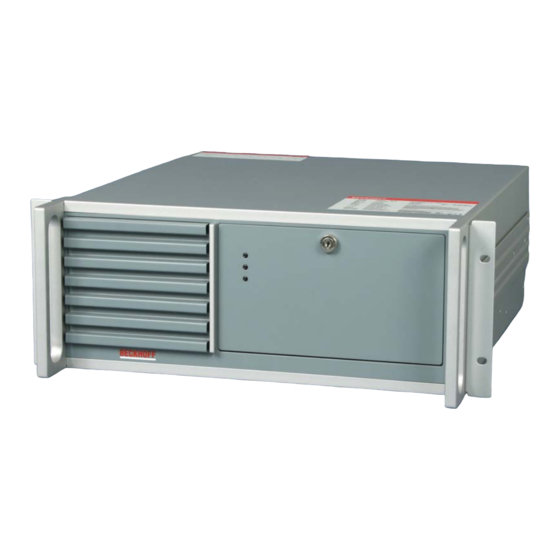

Product Description Product Description Appropriate Use The C5102 Industrial PC has been designed as a rack mount PC for fitting into 19 inch racks used in machine and plant engineering applications. Structure Front view of the C5102 Opening the front flap In order to gain access to the power pushbutton and to the drives, open the flap on the front with the key provided for the purpose (see photo above). - Page 9 Product Description Opening the housing In order to open the PC housing, remove the 4 fastening screws at the side of the housing cover (sea photo Rear view of the C5102) using a cross- head screwdriver. The cover of the housing can then be lifted up, providing access to the hard drive, processor, memory and plug-in cards, sea following photographer.
-
Page 10: Interfaces From C5102-0060
Product Description Interfaces from C5102-0060 ATX motherboard X116 X105 interfaces X104 X117 X115 X112 X113 X103 X118 X109 X111 X114 X119 X108 X110 PS/2 connections PS/2 The upper PS/2 connector (X104) allows a PS/2 mouse to be used, while a PC keyboard can be connected to the lower PS/2 connector (X103). -
Page 11: Interfaces Behind The Front Flap
Product Description Interfaces behind the front flap Interfaces behind the front flap Reset pushbutton Reset-pushbutton The reset pushbutton (1) allows to reboot the PC. Keyboard-Lock Keyboard-Lock The pushbutton KB-LK (2) locks the keyboard. LEDs Power The LED Power (3) indicates correct power supply. The LED HDD (4) indicates HDD access. -
Page 12: Installation Instructions
4. Please keep the associated paperwork. It contains important information for handling the unit. 5. Check the contents for visible shipping damage. 6. If you notice any shipping damage or inconsistencies between the contents and your order, you should notify Beckhoff Service. C5102... -
Page 13: Installation Of The Pc In The Control Cabinet
Installation Instructions Installation of the PC in the control cabinet The C5102 Industrial PC is designed for rack mounting in machine and plant engineering applications. The ambient conditions specified for operation must be observed (see chapter Technical data). Preparation of the control Four holes for the fixing bolts have to be provided in the control cabinet cabinet according to the dimensions of the PC (see chapter... -
Page 14: Power Supply Connection
Installation Instructions Power Supply Connection Supplied mains power unit The Industrial PC is fitted with a 100-240 V/ 3 A max., 50-60 Hz full range power supply unit (with the option of an uninterruptible power supply UPS). Current carrying capacity Output voltages from Current loading the 100-240 V power... -
Page 15: Connecting Devices
Installation Instructions Connecting devices Power supply plug The power supply plug must be withdrawn! Attention Please read the documentation for the external devices prior to connecting them. During thunderstorms, plug connector must neither be inserted nor removed. When disconnecting a plug connector, always handle it at the plug. Do not pull the cable! Connecting cables The connections are located at the top of the Industrial PC and are... -
Page 16: Operating Instructions
Operating Instructions Operating Instructions Please also refer to chapter Foreword. Switching the Industrial PC on and off Switch on The Industrial PC is switched on with the power pushbutton behind the front flap. Shutting down and The Industrial PC is switched off when either of these switches is off. switching off Control software such as is typically used on Industrial PCs permits various users to be given different rights. -
Page 17: Servicing And Maintenance
Operating Instructions Servicing and Maintenance Please also refer to chapter Foreword. Cleaning the Industrial PC Disconnect from power supply Switch off the Industrial PC and all connected devices, and disconnect the Industrial PC from the power supply. Attention The Industrial PC can be cleaned with a soft, damp cloth. Do not use any aggressive cleaning materials, thinners, scouring material or hard objects that could cause scratches. -
Page 18: Changing The Filter Mat
If the Industrial PC is used in an environment where the air is particularly dirty, the fan's filter mat should be examined at regular intervals to see how dirty it is, and should be exchanged, if necessary, for an original Beckhoff filter mat (item number C9900-Z213, filter mat for C510x, 10 per pack). -
Page 19: Troubleshooting
Nothing happens after the Industrial No power supply to the Industrial Check power supply cable PC has been switched on Other cause Call Beckhoff Service The Industrial PC does not boot CD in drive Remove CD and press any fully... -
Page 20: Service And Support
Fax: +49(0)5246/963-198 e-mail: info@beckhoff.com Beckhoff Support Support offers you comprehensive technical assistance, helping you no only with the application of individual Beckhoff products, but also with other, wide-ranging services: • world-wide support • design, programming and commissioning of complex automation systems •... -
Page 21: Assembly Dimensions
Assembly dimensions Assembly dimensions Diagrams of the Industrial PC with dimensions in mm. Assembly orientation The assembly of the unit must take place with the orientation diagrammed here. Attention Front view Industrie-PC C5102 Top view Side view C5102... -
Page 22: Appendix
Appendix Appendix Technical data Dimensions Dimensions (W x H x D): 483 x 177 x 449 (+ 51 with handles) mm Weight: 17.0 kg (basic configuration) Do not use the PC in areas The Industrial PC may not be used in areas of explosive hazard. of explosive hazard The following conditions must be observed during operation: Environmental conditions...
