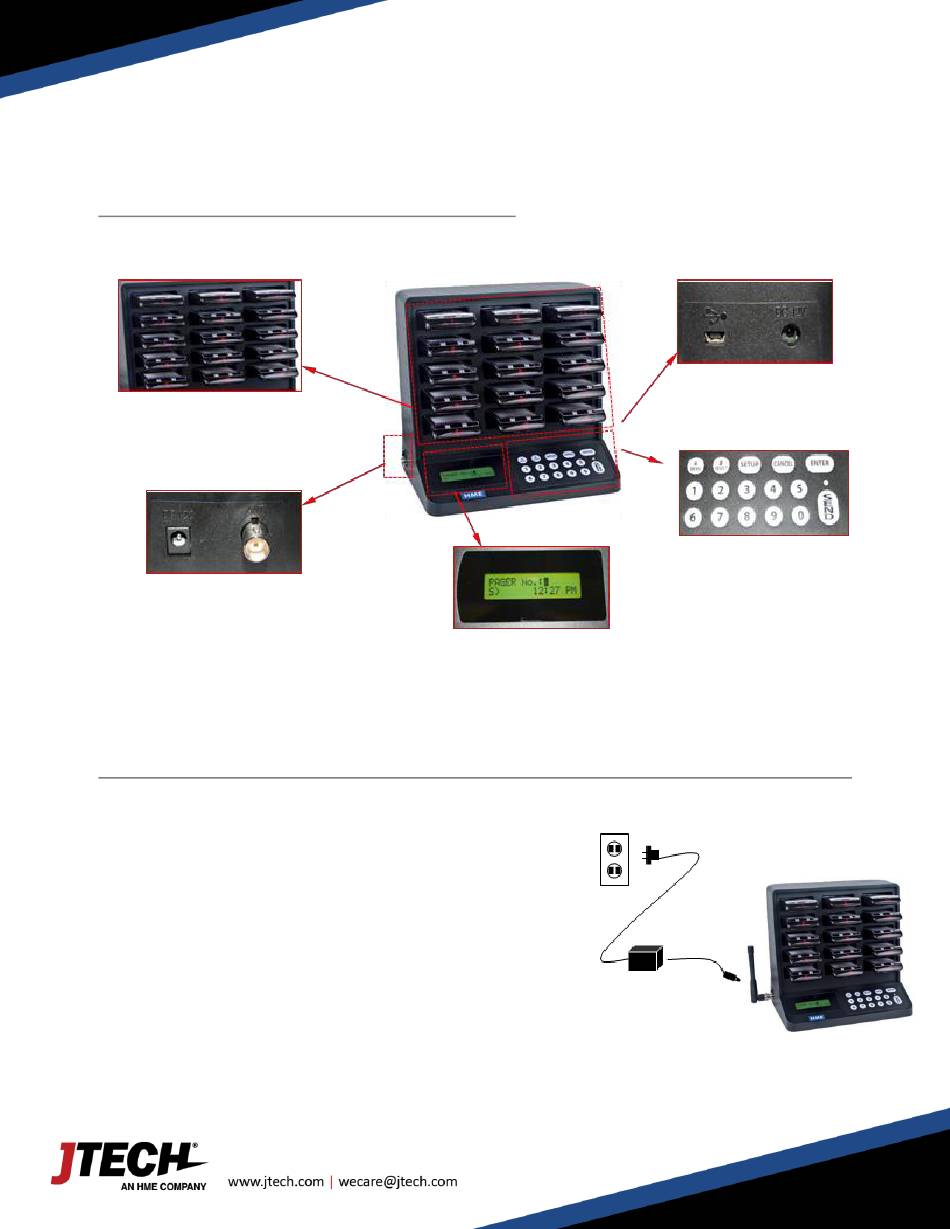

Transmitter Overview

Pager Charging Slots
DC Jack for
BNC Connector for
power supply
Antenna
Paging System Setup
Base Station and Charging Unit Setup
1. Lock the antenna to the lower left corner of the sending unit. Fit
over plug and twist left to lock antenna in place.
2. Plug the GuestCall sending unit A/C adaptor (Large tip power
supply) into left side (near antenna) of the sending unit.
3. Plug the power supply into a standard 110 outlet.
4. Seat the pagers into the charging slots until they "click". Pagers do
not have to be in numerical order. You should see a RED light
appear on each pager. This light indicates that proper charging is taking place. The pager
number LED will illuminate if you're using IQ pagers with a digital display. When you
remove a pager from its charger, it will display a demonstration page for 5 seconds.
NOTE: Only use the AC adaptor supplied with your system! The use of non-approved power supply will invalidate
the warranty. Also, use some type of surge suppressor on all power supplies for protection. Power surges are not
covered under system warranty.
800.321.6221
USB Connector
(Not used on this system)
LCD Display
User Manual
IQ All in One
Model Number: IQAIO
Charging Jack for
additional charging base
