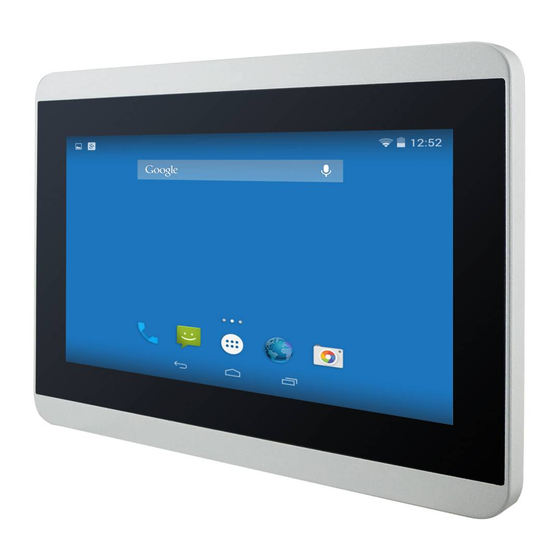

7" S-Series HMI
W07FA3S-PCM1AC-PoE
W07FA3S-PCM1-PoE

Quick Start Guide

V1.0
Document Part Number: 9152070I1001
Please read these instructions carefully before using this product, and save this manual for future use.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the W07FA3S-PCM1AC-PoE and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Winmate W07FA3S-PCM1AC-PoE

  • Page 1: Quick Start Guide

    7” S-Series HMI W07FA3S-PCM1AC-PoE W07FA3S-PCM1-PoE Quick Start Guide V1.0 Document Part Number: 9152070I1001 Please read these instructions carefully before using this product, and save this manual for future use.
  • Page 2: Table Of Contents

    Setting up the Device Home Screen Quick Settings Ethernet AP Configuring Ethernet Checking Ethernet Testing LED Light Bar Winmate® Home Manager (WHM) How to Lock Application How to Unlock Application How to Change Password Using Front Camera Camera Menu Shooting Photos...
  • Page 3 Location Settings Camera Settings Shooting Videos Software Developer Support Winmate Software Development Kit Winmate Download Center Winmate File Share Android Debug Bridge (ADB) Technical Specifications HMI Device Specifications...
  • Page 4: Getting Started

    Getting Started Congratulations on purchasing Winmate® 7” S-Series HMI. Interactive and smart automation systems of intelligent buildings are in a fast growing phase. Winmate® multi-touch S-Series HMI is suitable for home automation and room management systems. Flat surface is easy-to-clean and delivers aesthetically pleasing look for any interior.
  • Page 5: Unpacking

    Unpacking Carefully remove the box and unpack your device. Please check if all the items listed below are inside your package. If any of these items are missing or damaged contact us immediately. Accessories Standard factory shipment list: Quick Start Guide Driver CD &...
  • Page 6: Description Of Parts

    ⑤ 2 x USB 2.0 ⑨ 2MP Camera (optional) ② GIGA LAN/ PoE ⑥ RS-232/422/485 ⑩ *RGB LED Light Bar ③ USB OTG ⑦ 9~24V DC-in ④ RS-232/422/485 ⑧ 1 Watt Speaker *Note: RGB LED light bar only available for the model number W07FA3S-PCM1AC-PoE...
  • Page 7: Dimensions

    Dimensions *Note: Measurements shown in mm. **Note: this is a simplified drawing and some components are not marked in detail. Please read these instructions carefully before using this product, and save this guide for future use.
  • Page 8: Mounting

    Mounting S-series HMI devices come with different mounting options suitable for most of the industrial and commercial applications. VESA Mount Dimensions Screw hole diameter Compatibility 75 x 75 mm VESA M4x5 mm Swing arm mounting kits Flush/ Panel Mount Wall cutout Screw hole diameter 131.4 x 175.4 mm M3x4 mm...
  • Page 9: Connector Description

    Connector Description This section explains how to connect external interfaces to the HMI device. DC Input Connector DC power source input is a 12V DC-in jack connector. Pin № Pin № Name Name DC_IN Serial Port Connector Use COM1 serial port connector to connect your HMI to external devices such as mouse, modem or printer.
  • Page 10: Usb A Type Connector

    USB A Type Connector Use USB A Type (USB2.0) connector to connect your HMI device to other USB2.0 compatible devices. Pin № Pin № Name Name USB_D- USB_D+ USB OTG Connector Use USB OTG connector to connect the HMI device to other USB On-The-Go compliant devices such as flash drives, digital cameras, mice or keyboards.
  • Page 11: Turning On Or Off

    Turning On or Off Turning ON Follow the following steps to turn on your device: 1. Connect the AC adapter to the DC-in jack connector on the back side of the HMI device. 2. Connect the power cord to AC adapter. 3.
  • Page 12: Configuring Serial Port Settings

    Configuring Serial Port Settings Serial COM Port can be configured for RS-232, RS-422 or RS-485. Winmate provide COM port settings application for Android OS. Step 1 Settings > Accessibility Step 2 Accessibility > Comport-Setting...
  • Page 13 Step 3 GO to Comport-Setting > Comport 1/ Comport 2/ Comport 3 * Select Comport 1/ Comport 2/ Comport 3 that you want to configure. Step 4 In COM port settings select Comport 1 > RS232/RS422/RS485 *This example shows how to configure Comport 1 settings Please read these instructions carefully before using this product, and save this guide for future use.
  • Page 14: Brightness Adjustment

    Brightness Adjustment Use can adjust the screen brightness in Android settings. Pull down from the top of the screen to get the notifications area. You can also access display settings in the settings menu. Go to Settings > Display > Brightness Tap the cursor to the left to reduce the screen brightness.
  • Page 15: Operating The Hmi Device

    Operating the HMI Device Winmate® 7” S-Series HMI runs on Android 4.4 operating system. Setting up the Device When you first turn on your HMI device, you will see a Welcome screen. Choose the language you want and touch Start or the Start icon. When prompted, you can sign in with your Google Account to create one at that time.
  • Page 16: Quick Settings

    Quick Settings To open Settings, Swipe down from the top right of the screen and touch the Settings icon.  You can open your device’s Settings app from the All Apps screen or from Quick Settings. For example, to change notification sounds, and volume go to Settings >...
  • Page 17: Configuring Ethernet

    Setting Description Check Ethernet Check Ethernet connection parameters: IP mode, IP address, DNS address and others Configure Enable Ethernet connection and configure its such as Ethernet connection type Advanced Configure advanced parameters of the Ethernet Settings Configuring Ethernet To configure Ethernet settings go to Apps > Ethernet > Configure Ethernet Default settings: Ethernet OFF.
  • Page 18: Checking Ethernet

    Setting Description DHCP The device automatically capture IP-address from the router Static Allows to manually set up IP-address, DNS, Network and Gateway Checking Ethernet To check the Ethernet settings go to APPS > Ethernet > Check Ethernet Ethernet settings menu appears on the top right side of the desktop. Testing LED Light Bar To test LED Light Bar go to APPS >...
  • Page 19: Winmate® Home Manager (Whm)

    Winmate® Home Manager (WHM) Winmate® S-Series HMI running on Android OS comes with preinstalled APP named Winmate® Home Manager (WHM) which let the device manager to lock the launcher then the user can only use one application assigned by the device manager.
  • Page 20 Password Manager is settings WHM password (Default is “0000”). Step 2 Go to “Application Selector”, and choose the app which you want to run up automatically after booting. Step 3 Go back to “Home Selector” and press “Clear and Reset Default Home”.
  • Page 21 Step 4 Select “Restrict Home” and “Always”, and then restart the computer to enable these settings. The system will automatically start the application which you selected and lock it.  Any time user press home key or back key, the system will go back to the same application which you have selected.
  • Page 22: How To Unlock Application

    How to Unlock Application Follow the instruction below to reset WHM and unlock applications. Step 1 If you want to reset the home manager, pull down the left side to open the status bar and open HomeManager service. Step 2 System will request the password to login. Default password is “0000”.
  • Page 23: How To Change Password

    Step 3 Restart the system and you will go back to the normal Launcher. How to Change Password Step 1 Go to Password Manager and set your own password for this APP. Step 2 The default password is “0000”. Enter a new password in New Password field, and then tap Change Password.
  • Page 24: Using Front Camera

    Using Front Camera Your device has a built in camera. Camera Menu To open the camera, open All APPS , and then tap on camera icon Icon Description Action Tap to open location settings. Location setting Tap to immediately capture photos. Make a picture Tap to open camera settings.
  • Page 25: Location Settings

    Icon Description Action Tap to delete the photo and return to the Delete camera screen. Tap to close the preview and return to the Go back camera screen Location Settings Tap location settings icon to open location settings. Icon Description Action Location Tap to change location settings.
  • Page 26: Camera Settings

    Camera Settings to open camera settings. Icon Description Action Exposure Tap to change exposure settings. Tap to open detailed camera settings Detail Camera Settings menu. Shooting Videos Short tap > Tap to make a video.
  • Page 27: Software Developer Support

    Software Developer Support Winmate Software Development Kit The table below lists SDK provided by Winmate for 7” S-Series HMI with Freescale® Cortex® A9 processor: Item Driver Description Android Driver USB Driver Android Driver USB OTG Driver Android SDK Linux SDK...
  • Page 28: Technical Specifications

    Technical Specifications HMI Device Specifications Model Name W07FA3S-PCM1AC-PoE / W07FA3S- PCM1-PoE 7” TFT (Widescreen) Size Resolution 1024 x 600 Brightness 500 (typ.) Display Specifications Contrast Ratio 700 : 1 (typ.) Viewing Angle -75~75 (H);-70~75(V) Max Colors 262K (6bit) Touch PCAP Multi-Touch support 5 points Freescale®...
  • Page 29 Dimensions 189.4 x 145.4 x 37.7 mm (W x L x H) Mounting VESA Mount (75 x 75 mm) Mechanical Specifications Cooling Fanless design System Operating 0°C ~ +55°C Temp. Environmental Humidity 10% ~ 90% (non-condensing, RH) Considerations IP Rating IP65 (Front Side) Please read these instructions carefully before using this product, and save this guide for future use.
  • Page 30 Winmate Inc. 9F, No.111-6, Shing-De Rd., San-Chung District, Taipei 241, Taiwan, R.O.C Tel: 886-2-8511-0288 Fax: 886-2-8511-0211 Email: sales@winmate.com.tw Official website: www.winmate.com...
