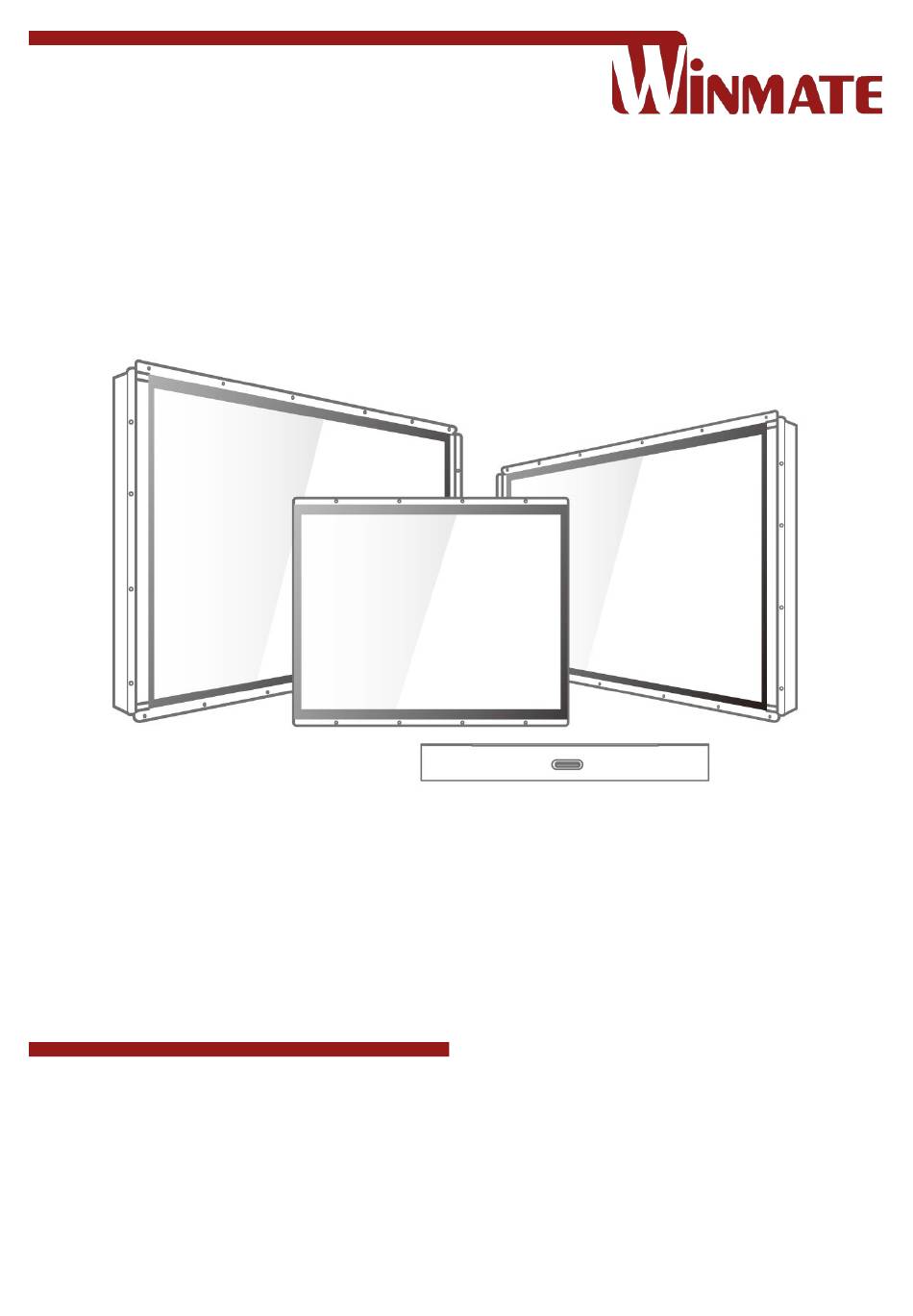

- Page 1 P-Cap Open Frame Type-C Display 7~15” Model No.: W07L100-POT1-C W10L100-POH2-C R10L100-POT2-C R12L100-POM2-C R15L600-POC3-C User Manual Version 1.0 Document Part Number: 91521110102O Please read this instructions before operating the device and retain them for future reference.
-
Page 2: Table Of Contents
Open Frame Type-C Display (7~15") User Manual Contents Preface ........................... 3 About This User Manual ..................... 7 Chapter 1: Introduction ....................8 1.1 About P-Cap Open Frame USB Type-C Display ..........9 1.2 Product Features ....................9 1.3 Package Overview ....................9 1.4 Product Overview .................... -
Page 3: Preface
Preface Preface Copyright Notice No part of this document may be reproduced, copied, translated, or transmitted in any form or by any means, electronic or mechanical, for any purpose, without the prior written permission of the original manufacturer. Trademark Acknowledgement Brand and product names are trademarks or registered trademarks of their respective owners. - Page 4 Open Frame Type-C Display (7~15") User Manual Naming Rule R07LXXX-POXX Item Description Panel Type Panel Size LXXX Product Size Mechanical Type(P-Cap Open Frame) Panel Model Advisory Conventions Four types of advisories are used throughout the user manual to provide helpful information or to alert you to the potential for hardware damage or personal injury.
- Page 5 Preface Safety Information Warning!/ Avertissement! Always completely disconnect the power cord from your chassis whenever you work with the hardware. Do not make connections while the power is on. Sensitive electronic components can be damaged by sudden power surges. Only experienced electronics personnel should open the PC chassis.
- Page 6 Open Frame Type-C Display (7~15") User Manual Safety Precautions For your safety carefully read all the safety instructions before using the device. Keep this user manual for future reference. Always disconnect this equipment from any AC outlet before cleaning. Do not use liquid or spray detergents for cleaning.
-
Page 7: About This User Manual
Preface About This User Manual This User Manual provides information about using the Winmate® Open Frame Type-C Display. The documentation set provides information for specific user needs, and includes: Open Frame Type-C Display User Manual – contains detailed description on how to use the display, its components and features. -
Page 8: Chapter 1: Introduction
Open Frame Type-C Display (7~15") User Manual Chapter 1: Introduction This chapter gives you product overview, describes features and hardware specification. You will find all accessories that come with the display device in the packing list. Mechanical dimensions and drawings included in this chapter. -
Page 9: About P-Cap Open Frame Usb Type-C Display

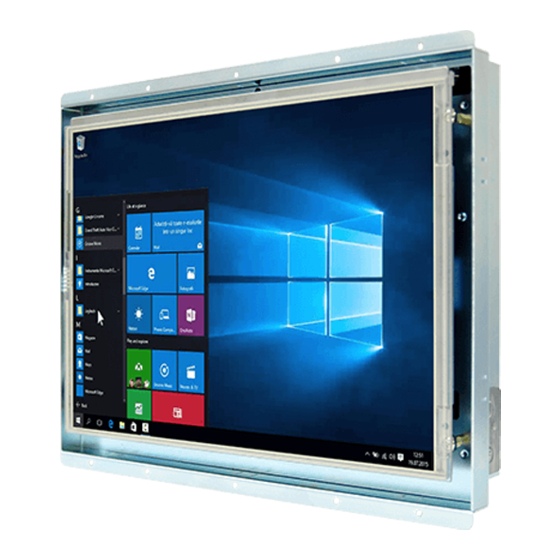

Chapter 1: Introduction 1.1 About P-Cap Open Frame USB Type-C Display Congratulations on purchasing Winmate® P-Cap Open Frame Type-C Display. Versatile display in an open-frame housing designed for rear and VESA mounting with integrated bracket design for KIOSK applications. The industrial grade Open Frame Type-C Display is designed for usability with brilliant true-flat screens, which offer superior readability and Projected Capacitive Multi-Touch (P-CAP) technology, available in 7”, 10.1”, 10.4”, 12.1”... -
Page 10: Product Overview
Open Frame Type-C Display (7~15") User Manual 1.4 Product Overview This section describes physical appearance of the P-Cap Open Frame Type-C Display. All dimensions shown in mm. W07L100-OFT1-C W10L100-OFH2-C... - Page 11 Chapter 1: Introduction R10L100-OFT2-C R12L100-OFM2-C...
-
Page 12: External Connectors
Open Frame Type-C Display (7~15") User Manual R15L600-OFC3-C 1.5 External Connectors Terminal interfaces are located on the bottom side of the display. Item Description USB 3.1 Type C - Connects external devices and provides power to the monitor. -
Page 13: Physical Buttons And Led Indicators
Chapter 1: Introduction 1.6 Physical Buttons and LED Indicators Physical buttons and LED indicators (OSD Control Panel) located on the rear side of the Display. OSD control panel varies by product specifications. Type A Physical Buttons DOWN Press to decrease the value / select up. UP- Press to increase the volume/ select down. - Page 14 Open Frame Type-C Display (7~15") User Manual Type B Physical Buttons DOWN- Press to lower down the volume. UP- Press to increase the volume. ESC/ AUTO- Press to exit the menu. OK/ MENU- Press to confirm the action or to call main OSD menu. Power On/ Off - Press to power on or power off the device.
-
Page 15: Chapter 2: Installation
Chapter 2: Installation Chapter 2: Installation This chapter provides hardware installation instructions and mounting guide for all available mounting options. Pay attention to cautions and warning to avoid any damages... -
Page 16: Wiring Requirements
Open Frame Type-C Display (7~15") User Manual 2.1 Wiring Requirements The following common safety precautions should be observed before installing any electronic device: Strive to use separate, non-intersecting paths to route power and networking wires. If power wiring and device wiring paths must cross make sure the wires are perpendicular at the intersection point. -
Page 17: Panel Mount
The Open Frame Display comes with clamp mounts that enable you to install the unit onto a wall (where space has been cut out to accommodate the rest of the hardware). Winmate provides VESA and Wall Mount Kits by request. -
Page 18: Vesa Mount
Installation Instruction: 1. Screw VESA bracket to the fixture (ex. swing arm) with four VESA screws. 2. Place the device on VESA bracket. Notice that VESA stand and mounting kit are not provided by Winmate. Size VESA Plate 7”, 10.1”, 10.4”, 12.1”... -
Page 19: Connecting Peripherals
Chapter 2: Installation 2.3 Connecting Peripherals This Display comes with USB Type-C interface located on the bottom panel. The connector comes with protective cap. To ensure the waterproof function can work properly, make sure that the protective caps and have been securely tightened whenever the connectors are not used. -
Page 20: Usb Type-C Connector Description
Open Frame Type-C Display (7~15") User Manual Note: For the optimal results, select display native resolution as the external computer’s input resolution. 2.3.1 USB Type-C Connector Description The Display features USB 3.1 Type-C connector for power, video and sound transmission. USB Type-C connector supports Alt mode. -
Page 21: Chapter 3: Operating The Device
Chapter 3: Operating the Device Chapter 3: Operating the Device In this chapter you will find instructions on how to operate the display. -
Page 22: Turning On/ Off The System
Open Frame Type-C Display (7~15") User Manual 3.1 Turning on/ off the System To turn on the system: 1. Connect USB Type-C cable to the connector of your device. Make sure the cable fits to the connector, then tighten the O-ring (by turning clockwise) to secure the connection. 2. - Page 23 Chapter 3: Operating the Device GAMMA OSD icon Sub menu Settings Note GAMMA 0 Select and execute Default GAMMA0 Choose the parameter of GAMMA 0 as default setting. GAMMA 1 Select and execute GAMMA Choose the parameter of GAMMA 1 as default setting. GAMMA 2 Select and execute Choose the parameter of GAMMA 2 as default setting.
-
Page 24: Appendix
Open Frame Type-C Display (7~15") User Manual Appendix This chapter contains additional product information, including troubleshooting guide and frequency table... -
Page 25: Appendix A: Hardware Specifications
Appendix Appendix A: Hardware Specifications Model Name W07L100- W10L100- R10L100- R12L100- R15L600- POT1-C POH2-C POT2-C POM2-C POC3-C Display 10.1” TFT(Wide) 10.4” 12.1” TFT 15” TFT Size/Type 7" TFT (Wide) Resolution 1024 x 600 1024 x 600 1024 x 768 1024 x 768 1024 x 768 420 nits 350 nits... -
Page 26: Appendix B: Troubleshooting
Open Frame Type-C Display (7~15") User Manual Appendix B: Troubleshooting If your monitor fails to operate correctly, check the following chart for possible solution before calling for repairs: Condition Check Point • Check if the signal cable is firmly seated in the socket. The picture does not •... -
Page 27: Appendix C: Frequency Table
For more information about available input signals and OSD navigation, please refer to R6C AD Board Manual included in the package. You can also download R6C AD Board Manual from Winmate Download Center. Appendix D: Cleaning the Monitor Before cleaning: ... - Page 28 Winmate Inc. 9F, No.111-6, Shing-De Rd., San-Chung District, New Taipei City 24158, Taiwan, R.O.C www.winmate.com Copyright © Winmate Inc. All rights reserved.
