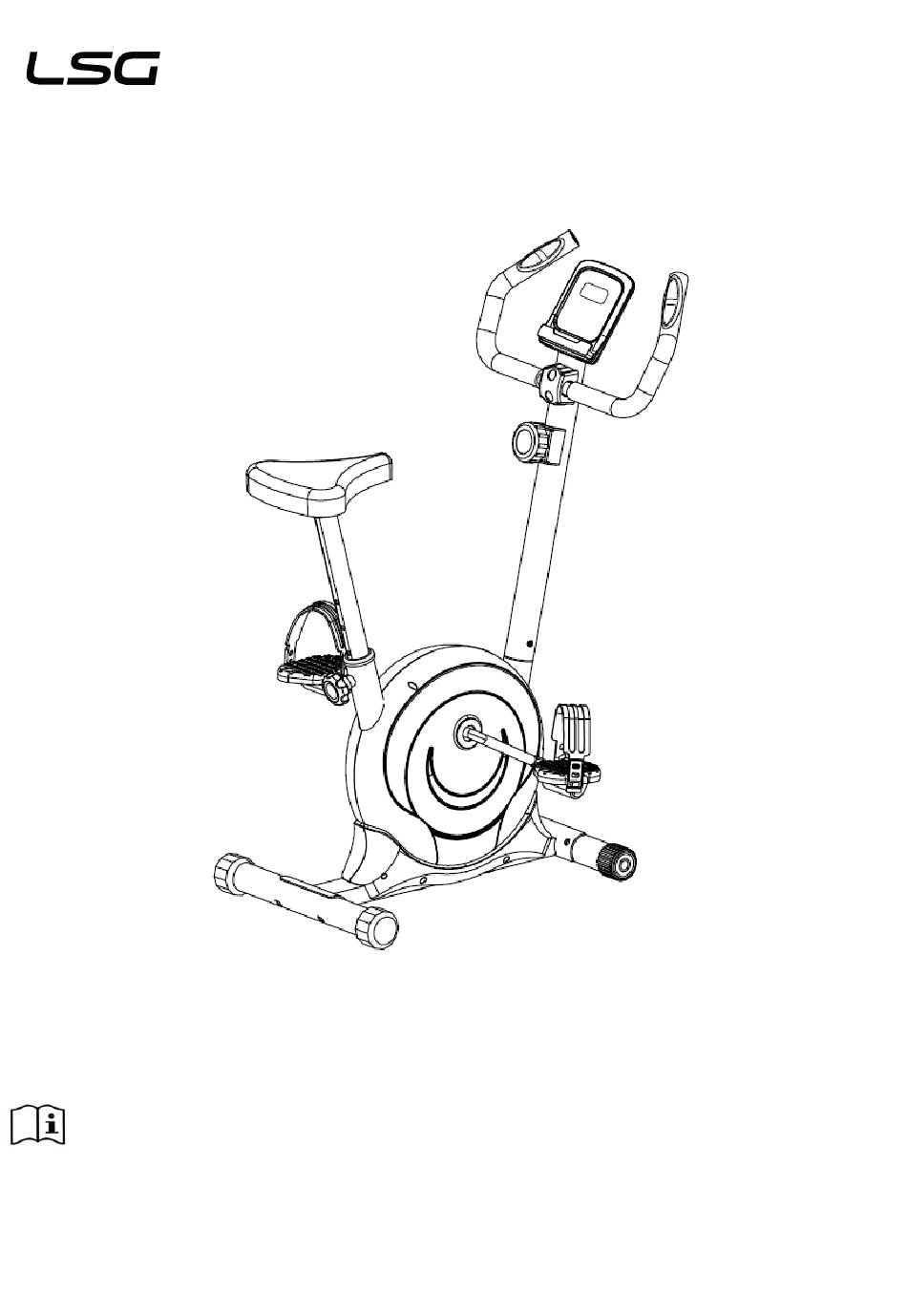

ERG-200 OWNER'S MANUAL

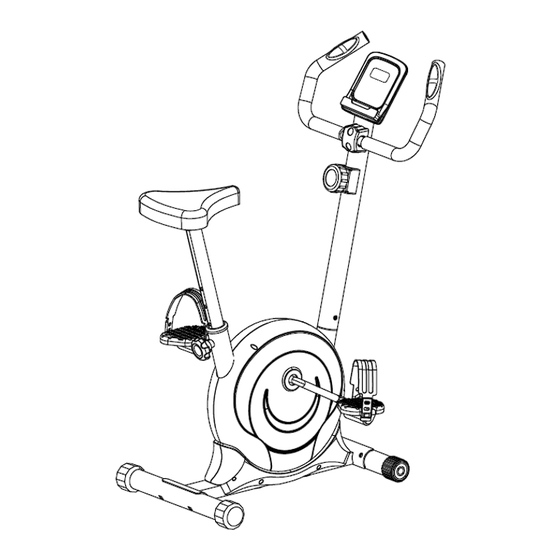

Product may vary slightly from the item pictured due to model upgrades
Read all instructions carefully before using this product. Retain this owner's manual for future
reference.
NOTE: This manual may be subject to updates or changes. Up to date manuals are available through our website at www.lifespanfitness.com.au

Advertisement

loading
Need help?

Need help?

Do you have a question about the ERG-200 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for LSG ERG-200

Summary of Contents for LSG ERG-200

  • Page 1 ERG-200 OWNER’S MANUAL Product may vary slightly from the item pictured due to model upgrades Read all instructions carefully before using this product. Retain this owner’s manual for future reference. NOTE: This manual may be subject to updates or changes. Up to date manuals are available through our website at www.lifespanfitness.com.au...

  • Page 2: Table Of Contents

    TABLE OF CONTENTS IMPORTANT SAFETY INSTRUCTIONS CARE INSTRUCTIONS EXPLODED DIAGRAM PARTS LIST ASSEMBLY INSTRUCTIONS COMPUTER OPERATION EXERCISE GUIDE WARRANTY...

  • Page 3: Important Safety Instructions

    1. IMPORTANT SAFETY INSTRUCTIONS WARNING - Read all instructions before using this machine. It is important your machine receives regular maintenance to prolong its useful life. Failing to regularly maintain your machine may void your warranty. Please keep this manual with you at all times It is important to read this entire manual before assembling and using the equipment.

  • Page 4: Care Instructions

    the equipment or that may restrict or prevent movement. This equipment is designed for indoor and family use only Care must be taken when lifting or moving the equipment so as not to injure your back. Always keep this instruction manual and assembly tools at hand for reference. The equipment is not suitable for therapeutic use.

  • Page 5: Exploded Diagram

    3. EXPLODED DIAGRAM TOOLS--...
  • Page 6 Inner Exploded Drawing:...

  • Page 7: Parts List

    4. PARTS LIST Part No。 Description Q'ty End Caps for Rear Stabilizer (for ф50 tube) Rear Stabilizer ф50*430 Carriage Bolt M10*56*L24 Domed Nut M10 Arc Washer ф20*ф10.5*2.0 6L/6R Pedal Transportation Wheel for Front Stabilizer Front Stabilizer ф50*380 Allen Bolt M8*15 Arc Washer ф16*ф8*1.5 Self-tapping Screw ST4.2*20 Front Post...
  • Page 8 Description Q'ty Part No。 Hex Bolt M8*20 Flat Washer ф24*ф8.4*2.0 Flywheel ф180 Spacer ф21*ф15.2*2.0 Wave Washer ф21*ф15*0.5 Bearing 6002Z Hex Bolt M6*20 Hex Nut M6 Magnet Plastic Holder for Magnet Iron Holder for Magnet Washer ф35*2.0 Inside Bearing Collar Ball Bearing Bearing Housing Outside Bearing Collar Big Washer ф40*2.8...

  • Page 9: Assembly Instructions

    5. ASSEMBLY INSTRUCTIONS NOTE: Before assembly ensure there is enough space around the item. Some nuts and bolts may be already attached to the machine STEP 1 1. Attach front stabilizer (8) to main frame (29), tighten with carriage bolt (3), arc washer (5) and domed nut (4).
  • Page 10 STEP 3 1. Secure handlebar (18) to handlebar post (12) with bolts (65) and spring washers (64), then attach the plastic cover clamp (66). 2. Take out wire plug (67), thread the HP wire to upright (12), then, block the wire plug (67). 3.
  • Page 11 STEP 4 1. Attach Seat (23) to Seat post (24), tighten with three flat washer (25) and three lock nuts (26). Insert the seat post (24) with seat (23) into the main frame (29). Lock it at suitable position with adjust knob (28).

  • Page 12: Computer Operation

    6. COMPUTER OPERATION SPECIFICATIONS: TIME------------------------------------------0:00~99:59MIN SPEED---------------------------------------0.0~999.9ML/H(KM/H) DISTRANCE--------------------------------0.00~9999ML (KM) CALORIE------------------------------------0.0~9999KCAL TOTAL DIST(ODO)----------------------- 0.00~9999ML (KM) PULSE (IF HAVE) ------------------------ 40~240BPM KEY FUNCTION: ITEM DESCRIPTION - This key lets you to select and lock on to a function you want. Pressing and hold for 3 MODE seconds to reset the value to zero (without ODO).

  • Page 13: Exercise Guide

    7. EXERCISE GUIDE PLEASE NOTE: Before beginning any exercise program, consult your physician. This is important especially if you are over the age of 45 or individuals with pre-existing health problems. The pulse sensors are not medical devices. Various factors, including the user’s movement, may affect the accuracy of heart rate readings.
  • Page 14 After warming up, increase the intensity to your desired exercise program. Be sure to maintain your intensity for maximum performance. Breathe regularly and deeply as you exercise. Cool Down Finish each workout with a light jog or walk for at least 1 minute. Then complete 5 to 10 minutes of stretching to cool down.

  • Page 15: Warranty

    8. WARRANTY AUSTRALIAN CONSUMER LAW Many of our products come with a guarantee or warranty from the manufacturer. In addition, they come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and compensation for any other reasonably foreseeable loss or damage.
  • Page 16 Hand Pulse Technology This product comes equipped with hand pulse sensors which are used to pick up tiny EKG/ECG signals that run through the body when your heart beats. These electrical EKG/ECG signals are very small and that they must be amplified 1000 times to make the signal useful for the computer to display your pulse.
