NTI RACKMUX-D17HR-N-SUSBHD4 RACKMOUNT DRAWER WITH QUAD SCREEN MULTIVIEWER
8. Apply four more #10-32 x 3/4" pan-head machine screws (two for each) through the holes in the drawer flanges, through the
holes in the left and right rails, into the cage nuts in the rack supports. Tighten each securely.
Apply two
more screws
on each side
There should
be a total of
six screws at
the front now.
9. Tighten securely the four screws applied to the rear rail flanges in step 4.
10. Make your cable connections according to your RACKMUX Drawer instructions.
Your NTI RACKMUX Drawer is now installed and ready for cable connections.

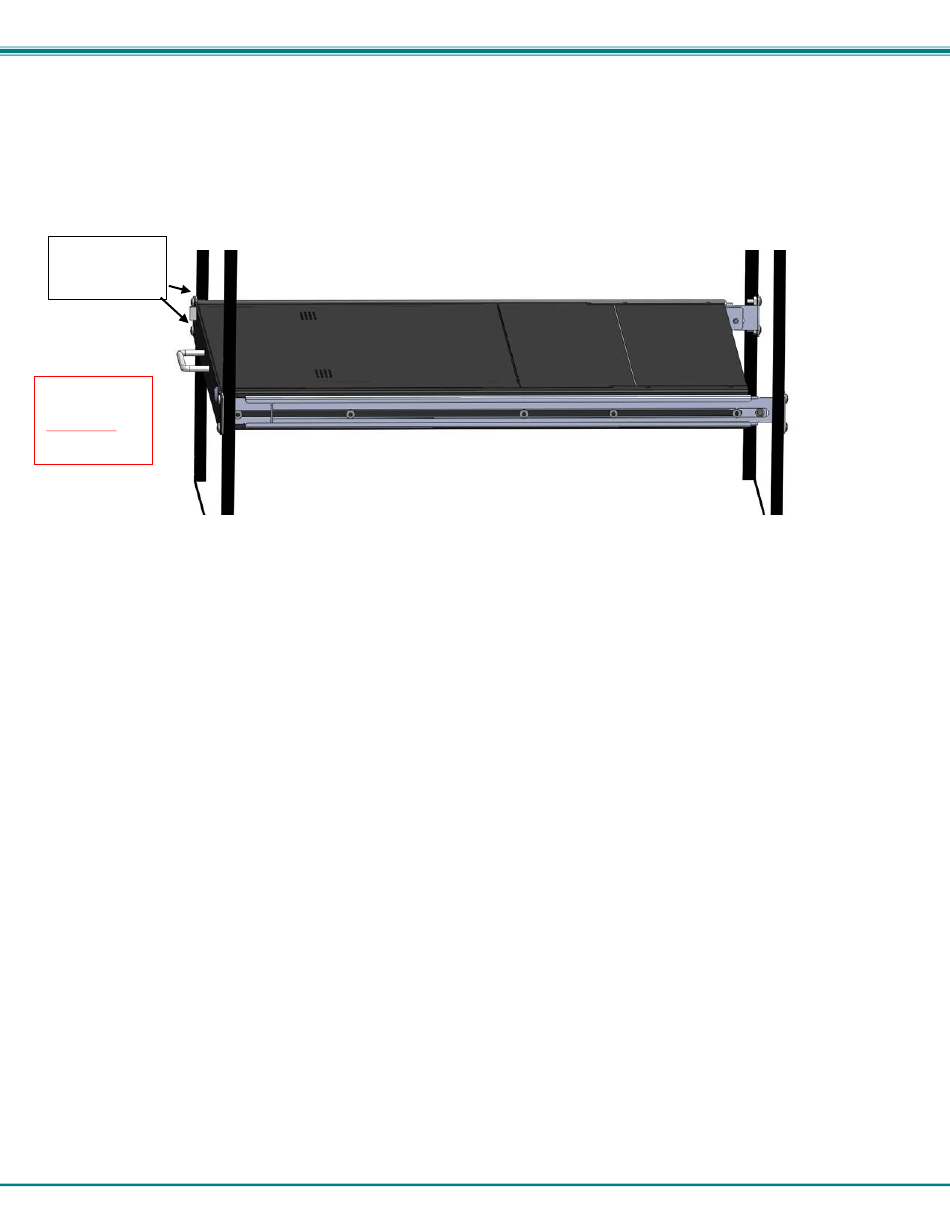

Figure 6- Apply remaining screws to complete installation
