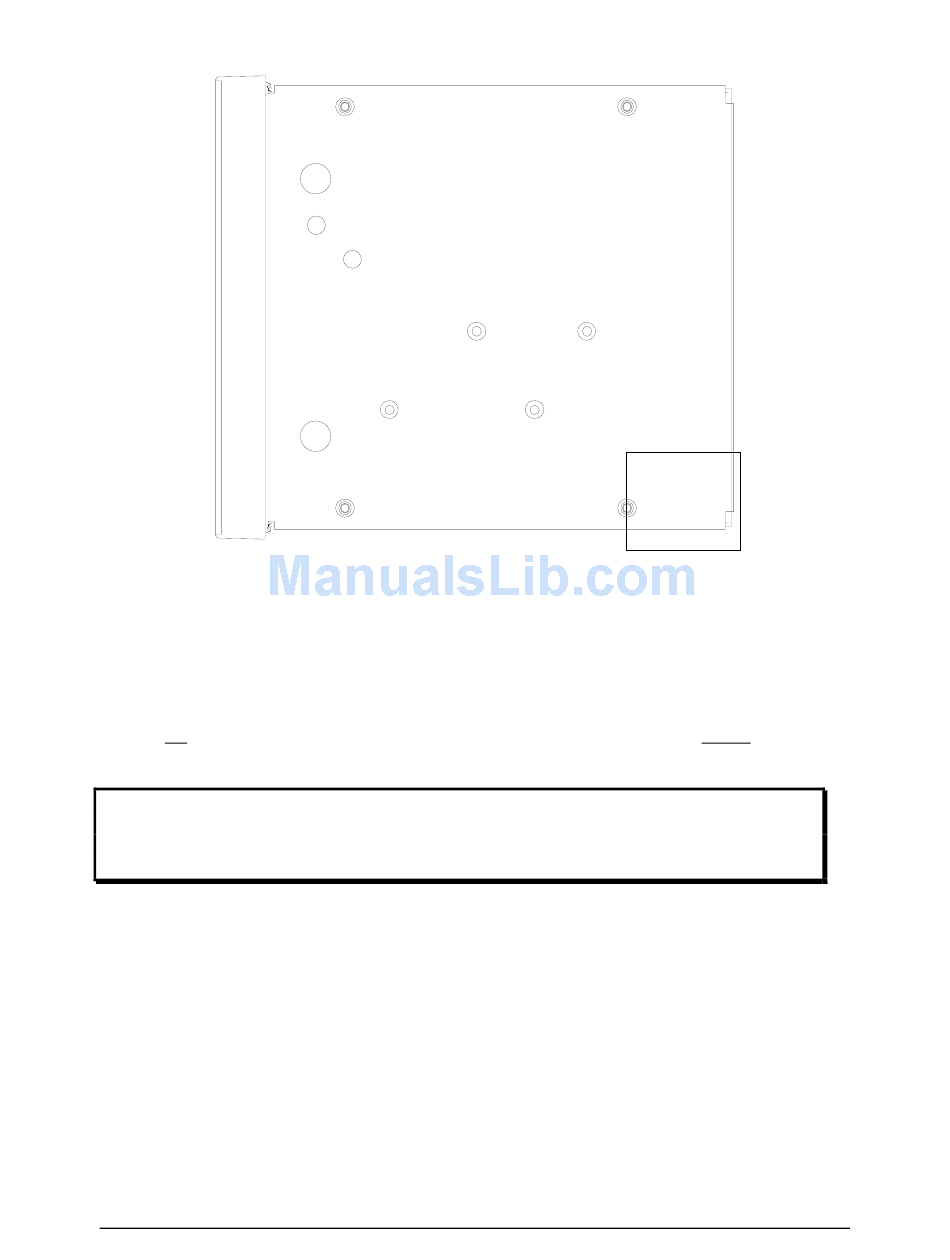

Figure 2-6 Top Cover Adjustments
•
Marker Beacon Volume, turn adjustment counterclockwise to increase marker beacon audio level.
•
Marker Beacon Sensitivity, Clockwise to increase the marker sensitivity.
2.7

Communications Antenna Installation Notes

For best results while in Split Mode, it is recommended that the one VHF communications antenna is lo-
cated on top of the aircraft while the other communications antenna is installed on the bottom. Any antenna
relocation must be accomplished in accordance with AC 43.13-2A, aircraft manufacturers' recommenda-
tions and FAA-approved technical data.
It is probable that radio interference will occur in the split mode when the frequencies of the two air-
craft radios are adjacent, and/or the antennas are physically close together. PS Engineering makes no
expressed or implied warranties regarding the suitability of the PMA8000-SR in Split Mode.
2.7.1

Audio Active Output

Pin 24 on the J1 connector (and PA Mute Pin 12 on J2) should be connected to Apollo CNX80 for audio
message prioritization, refer to CNX80 installation manual for details.
200-880-0000
PS Engineering
Installation and Operator's Manual
MKR
SNS
MKR
VOL
Warning:
Page 2-11
Area for con-
figuration
jumpers inside
Rev. 14, Oct. 2008
