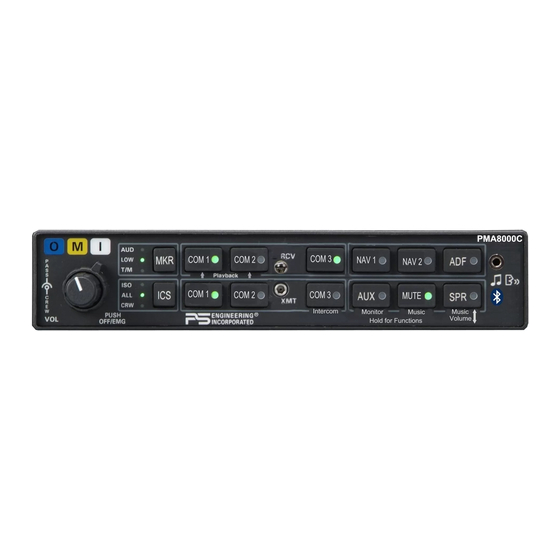

PS Engineering PMA8000C Installation And Operator's Manual

Audio selector panel and intercom system

Hide thumbs Also See for PMA8000C:

Operation manual (21 pages)

Table Of Contents

Table of Contents

Quick Links

Download this manual See also: Operating Manual

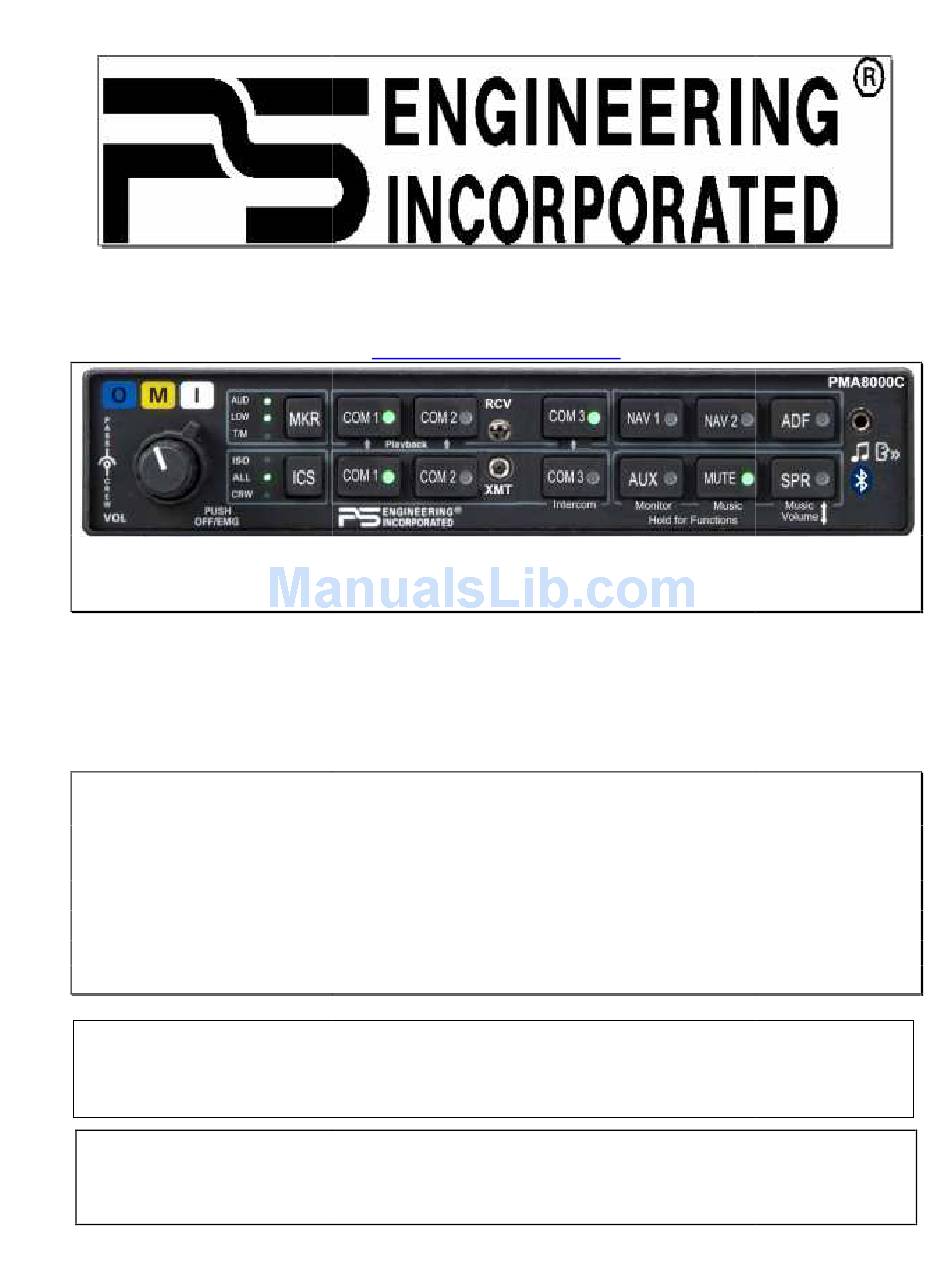

Audio Selector Panel with Marker Beacon Receiver

Patented under one or more of the following;

No. 4,941,187; 5,903,227; 6,160,496 and 6,493,450

In certified aircraft, warranty is not valid unless this product is installed by an

Any reproduction or retransmittal of this publication, or any portion thereof, without the expressed written permission of PS

Engineering, Inc. is strictly prohibited. For further information contact the Publications Manager at PS Engineering, Inc., 9800

Martel Road, Lenoir City, TN 37772. Phone (865) 988-9800, email contact@ps-engineering.com.

9800 Martel Road

Lenoir City, TN 37772

www.ps-engineering.com

Document P/N 200-890-0303

Revision 5, May 2015

For units with Serial Number CC1026 and above

High-fidelity Stereo Intercom

System Installation and Operation Manual

FAA- TSO C50c, C35d

EASA ETSO C50c, 2C35d

Authorized PS Engineering dealer.

Table of Contents

Need help?

Do you have a question about the PMA8000C and is the answer not in the manual?

Questions and answers

Summary of Contents for PS Engineering PMA8000C

Page 1 Any reproduction or retransmittal of this publication, or any portion thereof, without the expressed written permission of PS Engineering, Inc. is strictly prohibited. For further information contact the Publications Manager at PS Engineering, Inc., 9800 Engineering, Inc. is strictly prohibited. For further information contact the Publications Manager at PS Engineering, Inc., 9800 Engineering, Inc.
Page 2: Table Of Contents
ARKER IGHTS 2.6.3 ....................2-9 IDDLE ARKER ENSE ........................... 2-9 DJUSTMENTS ..............2-11 OMMUNICATIONS NTENNA NSTALLATION OTES PMA8000C P ....................... 2-12 IN ASSIGNMENTS 2.10 W ........................2-13 IRING HECKOUT 2.11 U ........................2-13 NSTALLATION 2.12 O ......................2-13 PERATIONAL HECKOUT 2.12.1...
Page 3 Appendix A – External PTT Hook Up............... A Appendix B – PMA8000C Installation Drawings ............B Appendix C – J1 PMA8000C Connector Interconnect ..........C Appendix D – J2 Connector Interconnect ..............D Appendix E – Instructions for FAA Form 337 and continuing airworthiness..E...
Page 4: Section I - General Information
(COM 1, COM 2, COM 3) and six receivers (NAV 1, NAV 2, ADF, AUX (DME) and MKR). A full duplex cellular telephone interface allows the PMA8000C to act as an audio interface between air- craft headphone and microphones and specific aircraft approved (FAA/FCC) cellular telephone equipment, using the Bluetooth®...
Page 5: Approval Basis
14 place intercom (2 crew +12 passenger positions). A 3-light, 75 MHz Marker Beacon receiver is integrated in the PMA8000C. This provides the necessary Marker Beacon lights and audio indications necessary for that portion of an Instrument Landing System (ILS) approach.
Page 6 PS Engineering PMA8000C Audio Selector Panel and Intercom System Installation and Operator’s Manual Audio Selector Specifications Audio selector panel input impedance: 510  Input Isolation: -60 dB (min.) Speaker Muting: -60 dB (min.) Speaker Output (into 4 ) with no clipping 3 Watts (min.)
Page 7: Equipment Supplied
475-632-0012 #6-32 Clip Nut 475-630-0002 EQUIPMENT REQUIRED BUT NOT SUPPLIED Circuit Breaker: 1 ea; 5 amp PULL TYPE REQUIRED for PMA8000C Speaker, 4  Headphone Jacks (Stereo, as Required) Microphone Jacks (as Required) Headphones, 150  (Stereo), up to 6 as required Microphones, up to 6 as required Marker Antenna (75 MHz, VSWR <1:1.5, and appropriate for the airspeed)
Page 8: Section Ii - Installation
Section 1.6 . If any claim is to be made, save the shipping material and contact the freight carrier. Do NOT return units damaged in shipping to PS Engineering. If the unit or ac- cessories show any sign of external shipping damage, contact PS Engineering to arrange for a replacement.
Page 9: Cable Harness Wiring
There must be at least 13.8 VDC present at the connect- or, J2 pins 8 & 9, of the PMA8000C for the power supply to work in its designed regulation. Otherwise, it cannot adequately attenuate power line noise.
Page 10: Existing Gma340 Installation
2.4.3 Power The PMA8000C is compatible with both 14 and 28 Volt DC systems. A five (5) Amp circuit breaker is required for all installations. Power and ground wires should be #22 connected to J2 Pins 8 and 9. Connect airframe ground to J2 Pin 10 and 11 only.
Page 11: Ransmit Nterlock
King Radio KX170-series, require a resistive load to prevent damage if their speaker amplifier is not used. Connect the speaker output from the unit to the COM 2 Speaker load input on the PMA8000C (J1 27 WRT 28). The speaker load is 16 , 3W. Only one speaker per load is available in the PMA8000C.
Page 12: Swap" Mode
2.4.11 Public Address Mode By pressing the Mute and SPR pushbuttons at the same time, the PMA8000C will be placed into public address (PA) mode. In this mode, the pilot will be talking over the cockpit speaker when he presses his PTT switch.
Page 13 PS Engineering PMA8000C Audio Selector Panel and Intercom System Installation and Operator’s Manual Screws Figure 2-1 Screw Locations Move the blue jumper located in the back corner near the sub-D connectors to the inboard two pins of J4. See Figure #2-3.
Page 14: Pa Mute (J2, Pin 12)
MIL-spec cable as shown. Connect the shields at the audio panel end only, and tie to the audio low inputs as shown. NOTE The audio panel harness can be custom made by PS Engineering, Inc. Simply call the factory or www.ps- engineering.com to obtain a wire harness work sheet.
Page 15: Entertainment Muting
Recording System playback. This switch can be located anywhere in cockpit convenient to the pilot's reach. The NO switch should be connected to pin 22 of J2 of the PMA8000C, and ground. When installed, this button will act as in § 3.12. 200-890-0303 Page 2-8 Rev.
Page 16: Arker Eacon Nstallation
Middle Marker Sense A Middle Marker Sense output signal is available from the PMA8000C to certain flight control systems. This function will not operate during the test mode. This output will go to +4.5 VDC ( 1.0 VDC) when a valid Middle Marker signal is received.
Page 17 PS Engineering PS Engineering PS Engineering PMA8000C Audio Selector Panel and Intercom System PMA8000C Audio Selector Panel and Intercom System PMA8000C Audio Selector Panel and Intercom System Installation and Operator’s Manual Installation and Operator’s Manual Installation and Operator’s Manual Front...
Page 18: Note
It is probable that radio interference will occur in the split mode when the frequencies of the two air- craft radios are adjacent, and/or the antennas are physically close together. PS Engineering makes no expressed or implied warranties regarding the suitability of the PMA8000C in Split Mode.
Page 19: Pma8000C Pin Assignments
PS Engineering PMA8000C Audio Selector Panel and Intercom System Installation and Operator’s Manual 2.9 PMA8000C Pin assignments Function Function Mkr Ant Pilot Phones Lo Mkr Ant Lo Copilot Phones Lo Com 3 Audio Hi Copilot Phones (L) COM 3 Audio Lo...
Page 20: Wiring Checkout
2.12 Operational Checkout 2.12.1 Required Test Equipment In order to return an aircraft to service after installation of the PMA8000C, the installer must have access to a Marker Beacon signal generator: IFR NAV401L, NAV402AP, IFR4000 TIC T-30D, T-36C Equivalent test equipment is acceptable as long as the testing requirements can be met.
Page 21: Marker Checkout
Holding down the Com3 & AUX will activate the last configuration annunciation mode, so when you cycle power, it will tell you what configuration the PMA8000C is in. To disable this feature hold down Com3 & AUX for one second after power up.
Page 22: Final Inspection
Complete documentation that may be required, such as a logbook entry, weight and balance computation and FAA Form 337. Sample text for FAA Form 337, and instructions for continuing airworthiness can be found in Appendix F. Return completed warranty registration application to PS Engineering, or complete online at www.ps-engineering.com.
Page 23: Section Iii Operation
In normal (not split) modes, the PMA8000C gives priority to the pilot’s radio Push-To-Talk (PTT). If the In normal (not split) modes, the PMA8000C gives priority to the pilot’s radio Push-To-Talk (PTT). If the In normal (not split) modes, the PMA8000C gives priority to the pilot’s radio Push-To-Talk (PTT). If the copilot it transmitting, and the pilot presses his PTT, the pilot’s microphone will be heard over the selected...
Page 24: Audio Selector (4)
COM with the XMT buttons. The PMA8000C can be configured by the user to either Swap COM 1/COM 2, or COM 1/COM 2/COM 3. To change this function, press and hold the swap switch, and push and release the COM 3 RCV button momentarily.
Page 25: Cell Phone Sidetone
COM 1 or 2, and will transmit on that radio using the PTT. All selected audio is provided to the pilot. There is no provision to have just the copilot or on the phone. If the PMA8000C is in SPLIT Com mode, just the passengers will be connected to the phone.
Page 26: Intercom Operation
Therefore, it may not recognize speech and clip syllables in a quiet cabin, such as in the hangar, or without the engine running. This is normal. For optimum microphone performance, PS Engineering recommends installation of a Microphone Muff Kit from Oregon Aero (1-800-888-6910). This will not only optimize VOX performance, but will improve the overall clarity of all your communications.
Page 27: Intercom Modes (8)
Crew and may listen to entertainment as configured. 3.8 Music Distribution and Music Muting (6) The PMA8000C has two independent music inputs at the rear connector, and a front panel jack. The PMA8000C also has the ability to receive streaming music from a Bluetooth-enabled device.
Page 28: Music In Pilot Iso Mode
Mute mode as described in §3.8. 3.9 This function is not remembered when the audio panel is turned off. Utility Jack The 2.5-millimeter (3/32”) jack on the front of the PMA8000C has two functions:  Advisory audio input ...
Page 29: Smart Function Keys (Sfk)
3.9.1.1 Smart Jack Function When the PMA8000C has a signal on music #1 input coming in from the rear connector, the front panel jack automatically becomes a Priority Advisory input, and is heard in the crew headphones. NOTE The front jack is no substitute for the certified installation of alerts such as the GPS waypoint or autopilot tones.
Page 30: Music Function (C) (Music Distribution Control)
Function “C” controls how music is distributed in your airplane. There are multiple music sources available to the PMA8000C. Music 1 input can be streamed from a Blue- tooth source, input through the front jack, OR the Music 1 input at the rear connector (Pins 23 and 24 J2).
Page 31: Music 1 Volume
In general, we recommend adjusting the entertainment volume at the sources, and only using this as a mas- ter gain control. However, the Music 1 PMA8000C input can be adjusted from the front panel, if desired, by pressing the combinations of keys listed.
Page 32: Luetooth Interface
The device eliminate will be selected at ran- dom by the Bluetooth module. Hint, if your old phone is not recognized by the PMA8000C, you may simply need to re-pair.
Page 33: Power On Announcement
In ISO intercom mode, when the PMA8000C is in the TEL mode, the pilot position is in the "Phone Booth." Only the pilot will hear the telephone, and only he will be heard. He will also have access to COM 1 or 2, and will transmit on that radio using the PTT.
Page 34: Section Iv - Warranty And Service
(3) years from the date of sale. During the first twelve (12) months of the three-year warranty pe- riod, PS Engineering, Inc., at its option, will send a replacement unit at our expense if the unit should be determined to be defective after consultation with a factory technician.
Page 35: Appendix A - External Ptt Hook Up
PS Engineering PMA8000C Audio Selector Panel and Intercom System Installation and Operator’s Manual Appendix A – External PTT Hook Up Part of the installation includes the installation of PTT (Push To Talk) switches that allow the use of your aircraft radio for communications transmissions.
Page 36: Appendix B - Pma8000C Installation Drawings
PS Engineering PMA8000C Audio Selector Panel and Intercom System Installation and Operator’s Manual Appendix B – PMA8000C Installation Drawings Back plate assy Screw 4-40 x 1/4" 475-440-0001 (x2) 475-440-0001 (x2) Screw w/washer Viewed from Back 475-009-0001 ground lug (x2) Ground Lug...
Page 37: Appendix C - J1 Pma8000C Connector Interconnect
PS Engineering PMA8000C Audio Selector Panel and Intercom System Installation and Operator’s Manual Appendix C – J1 PMA8000C Connector Interconnect PMA8000C Connector, J1 (Sub-D 44-pin, male on tray) Com 1 Audio Hi Notes: Communications Com 1 Lo 1. All shields should be grounded at audio panel only.
Page 38: Appendix D - J2 Connector Interconnect
PS Engineering PMA8000C Audio Selector Panel and Intercom System Installation and Operator’s Manual Appendix D – J2 Connector Interconnect PMA8000CJ2 CONNECTOR Pilot Phones (R) Pilot PhonesJack Pilot Phones (L) (Sub-D 44-pin male on tray) Pilot Phones Lo Copilot Phones (R)
Page 39 PS Engineering PMA8000C Audio Selector Panel and Intercom System Installation and Operator’s Manual PMA8000C with Expansion (Unit 050-890-0313 only) PMA8000C J2 Expansion Unit #2 11636R Expansion Audio Input Expansion Lo Expansion Power PMA8000C J1 Expansion Audio Output (L) Ground Lug...
Page 40: Appendix E - Instructions For Faa Form 337 And Continuing Airworthiness
Aircraft equipment list, weights and balance amended. Compass compensation checked. A copy of the operation instruc- tions, contained in PS Engineering document 202-890-( ), revision ( ), dated ( ), is placed in the aircraft records. All work accomplished listed on Work Order 9.2 Instructions for Continuing Airworthiness, Audio System...
Page 41: Appendix F - Rtca Do160D Environmental Qualification Form
PS Engineering PMA8000C Audio Selector Panel and Intercom System Installation and Operator’s Manual Appendix F – RTCA DO160D Environmental Qualification Form Audio Selector Panel/Intercom/Marker Beacon Receiver Part Number: 050-890-( ) FAA TSO Number: C50c, C35d Manufacturer: PS Engineering Incorporated 9800 Martel Road...
