PMA5000EX
PMA5000EX
Audio Selector Panel
Stereo Intercom System
Flying Never Sounded So Good! ™
Operation Manual
Operation Manual
202-550-0100
Covered under one or more of the following Patent
No. 4,941,187, 5,903,227, 6,160,496, 6,493,450
Jan 2010 PMA5000EX Pilot Guide
9800 Martel Road
Lenoir City, TN 37772
www.ps-engineering.com
Pilot's Guide
Pilot's Guide
and
and
New Release
202-550-0100
January 2010
Page 1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PMA5000EX and is the answer not in the manual?

Questions and answers

Summary of Contents for PS Engineering PMA5000EX

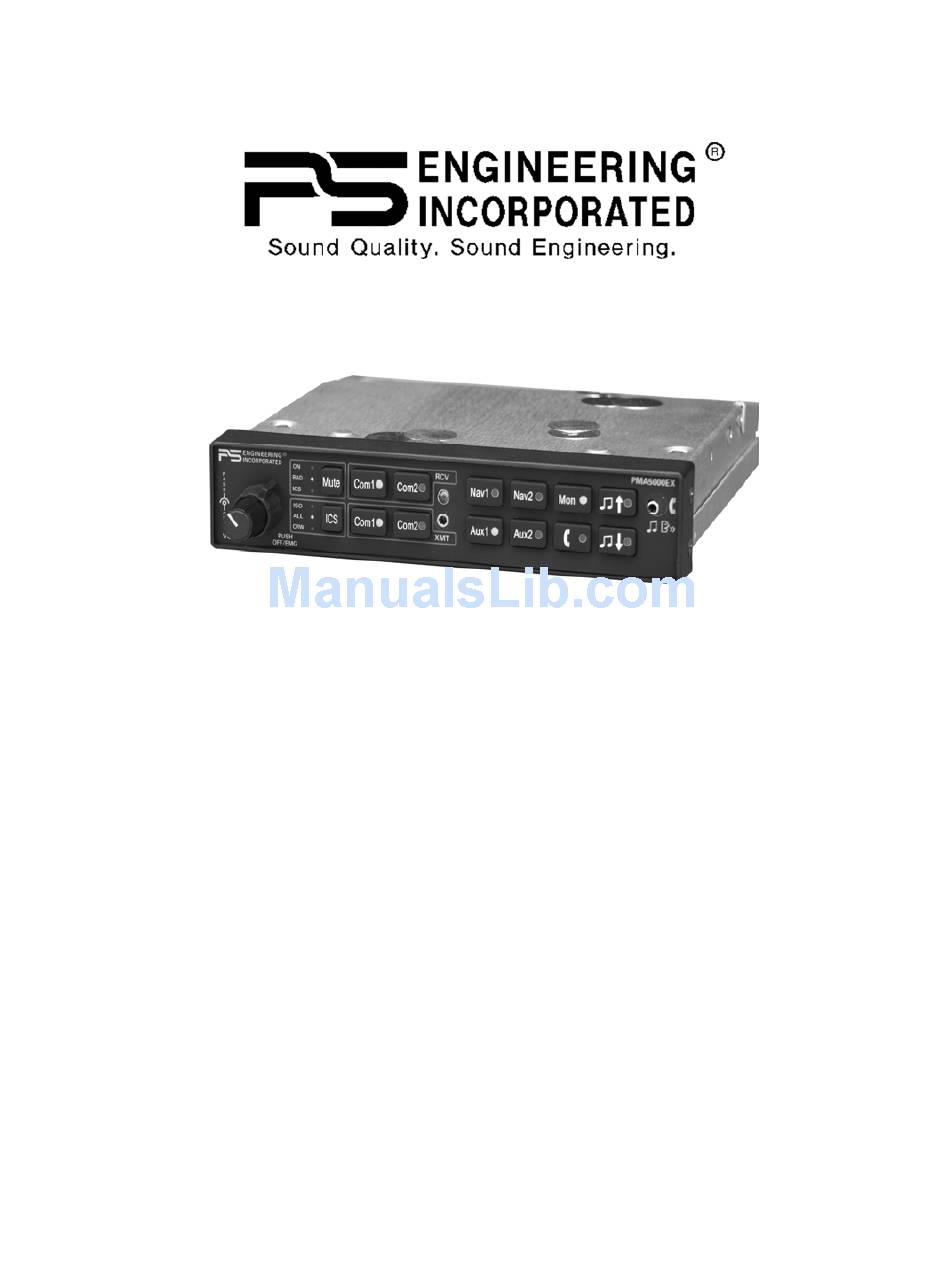

  • Page 1 Flying Never Sounded So Good! ™ Pilot’s Guide Pilot’s Guide Operation Manual Operation Manual 202-550-0100 New Release January 2010 Covered under one or more of the following Patent No. 4,941,187, 5,903,227, 6,160,496, 6,493,450 Jan 2010 PMA5000EX Pilot Guide 202-550-0100 Page 1...
  • Page 2: Communications Transmit (Xmt) Selection

    When the unit is turned off, either by pressing the volume control, or if the breaker is pulled removing power, the PMA5000EX is in Fail- Safe mode. In this mode, the pilot’s headset is connected to COM 1 for transmit and receive, and connected to unswitched input #1 for priority audio alerts.
  • Page 3: Split Mode

    COM receiver audio Unless the audio panel is in “split” mode, the PMA5000EX gives pri- ority to the pilot’s radio Push-To-Talk (PTT). If the copilot it trans- mitting and the pilot presses his Push-To-Talk (PTT), the pilot is then heard over the radio.
  • Page 4: Audio Selector

    ADF, or even an audio alert signal you want to con- trol. The DME input (if present) is also shared with AUX 2. In SPLIT mode, only the pilot will hear selected navigation audio. Page 4 202-550-0100 PMA5000EX Pilot Guide...
  • Page 5 2, and will transmit on that radio using the PTT. All selected audio is provided to the pilot. Note: As shipped from PS Engineering, the PMA5000EX does not provide cellular telephone sidetone (the user’s voice fed back to the headset). Some cell phones do not provide sidetone. However, tele- phone sidetone can be enabled by pressing the holding the TEL button for more than three seconds.
  • Page 6: Intercom Operation

    H10-20, H10-40 90015 H10-13.4, 13X 90015 H20-10X 90015 Lightspeed 90015 Peltor 7003 90010 ANR Pro, 7000 90015 Pilot 11-20, 11-90, 1776, DXL 90015 Sennheiser 90015 Telex Airman 750, AIR4000 90010 AIR3000, Echelon 100 90015 Page 6 202-550-0100 PMA5000EX Pilot Guide...
  • Page 7: Intercom Volume Control

    In All mode, everybody hears everything, including radios, intercom and music. The crew will hear Music 1, and the passengers will hear Music source 1 or 2, depending on the Alternate Distribution method Jan 2010 PMA5000EX Pilot Guide 202-550-0100 Page 7...
  • Page 8: Utility Jack

    ISO mode. The music in ISO mode is indicated by a slow blink of the intercom mode indicator. Utility Jack The 2.5 millimeter (3/32”) jack on the front of the PMA5000EX has three distinct functions: • Cell phone input •...
  • Page 9: Music Input

    “Mute” but- ton, so this audio is not interrupted. We’ve built some intelligence into the PMA5000EX, too. If you do have music 1 playing, the PMA5000EX will then interpret the jack input as a priority audio, and not mute it.
  • Page 10: Music Muting

    Music 1 volume can be adjusted from the front panel, if desired, by pressing Music volume up, and music volume down buttons. The music can be turned completely off, so if you are not hearing Page 10 202-550-0100 PMA5000EX Pilot Guide...
  • Page 11: Warranty And Service

    Email: contact@ps-engineering.com Units that arrive without an RMA number, or telephone number for a responsi- ble contact, will be returned un-repaired. PS Engineering is not responsible for items sent via US Mail. Jan 2010 PMA5000EX Pilot Guide 202-550-0100 Page 11...
  • Page 12 ECORD PMA5000EX Serial Number: ___________________ Date of Purchase: ____________________________ Installed by:_________________________________ PS Engineering, Inc. 2010 © Copyright Notice Copyrighted information in this manual is subject to change without notice. PS Engineering reserves the right to improve or change the products or contents of this manual, without notification of any person or agency.
