PS Engineering PMA7000H-BT System Installation And Operation Manual
  1. Manuals
  2. Brands
  3. PS Engineering Manuals
  4. Intercom System
  5. PMA7000H-BT
  6. System installation and operation manual

PS Engineering PMA7000H-BT System Installation And Operation Manual

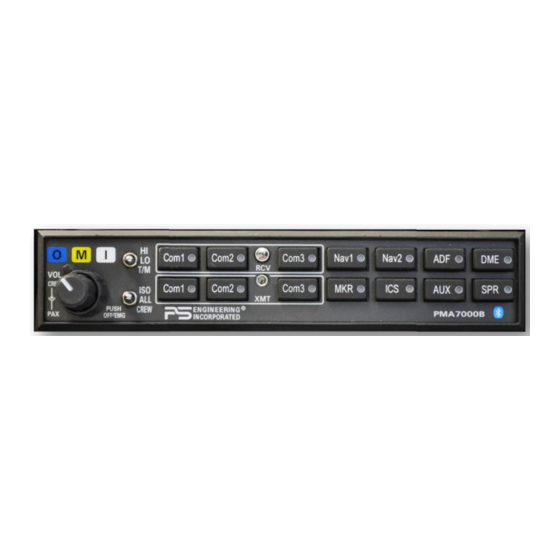

Audio selector panel with marker beacon receiver high-fidelity stereo intercom
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
P
P
P
M
M
M
P
P
P
M
M
M
Audio Selector Panel with Marker Beacon Receiver
Audio Selector Panel with Marker Beacon Receiver
Audio Selector Panel with Marker Beacon Receiver
System Installation and Operation Manual
System Installation and Operation Manual
System Installation and Operation Manual
Patented under one or more of the following; No. 4,941,187; 5,903,277;
Patented under one or more of the following; No. 4,941,187; 5,903,277;
Patented under one or more of the following; No. 4,941,187; 5,903,277;
In certified aircraft, warranty is not valid unless this product is installed by an
In certified aircraft, warranty is not valid unless this product is installed by an
In certified aircraft, warranty is not valid unless this product is installed by an
Any reproduction or retransmittal of this publication, or any portion thereof, without the expressed written permission of PS
Any reproduction or retransmittal of this publication, or any portion thereof, without the expressed written permission of PS
Any reproduction or retransmittal of this publication, or any portion thereof, without the expressed written permission of PS
Engineering, Inc. is strictly prohibited. For further information contact the Publications Manager at PS Engineering, Inc., 9800
Engineering, Inc. is strictly prohibited. For further information contact the Publications Manager at PS Engineering, Inc., 9800
Engineering, Inc. is strictly prohibited. For further information contact the Publications Manager at PS Engineering, Inc., 9800
Martel Road, Lenoir City, TN 37772. Phone (865) 988-9800, email avionics@ps-engineering.com.
Martel Road, Lenoir City, TN 37772. Phone (865) 988-9800, email avionics@ps-engineering.com.
Martel Road, Lenoir City, TN 37772. Phone (865) 988-9800, email avionics@ps-engineering.com.
9800 Martel Road
9800 Martel Road
9800 Martel Road
Lenoir City, TN 37772
Lenoir City, TN 37772
Lenoir City, TN 37772
www.ps-engineering.com
www.ps-engineering.com
www.ps-engineering.com
A
A
A
7
7
7
0
0
0
A
A
A
7
7
7
0
0
0
Document P/N 200-780-0204
Document P/N 200-780-0204
Document P/N 200-780-0204
May 2015
May 2015
May 2015
High-fidelity Stereo Intercom
High-fidelity Stereo Intercom
High-fidelity Stereo Intercom
w
w
w
w
w
w
i
i
i
i
i
i
t
t
t
t
t
t
h
h
h
h
h
h
B
B
B
B
B
B
l
l
l
l
l
l
u
u
u
u
u
u
e
e
e
e
e
e
t
t
t
t
t
t
o
o
o
o
o
o
o
o
o
o
o
o
t
t
t
t
t
t
h
h
h
h
h
h
®
®
®
®
®
®
C
C
C
C
C
C
FAA-Approved TSO C50c, C35d
FAA-Approved TSO C50c, C35d
FAA-Approved TSO C50c, C35d
JAA-Approved JTSO C50c, 2C35d
JAA-Approved JTSO C50c, 2C35d
JAA-Approved JTSO C50c, 2C35d
6,160,496 and 6,493,450
6,160,496 and 6,493,450
6,160,496 and 6,493,450
Authorized PS Engineering dealer.
Authorized PS Engineering dealer.
Authorized PS Engineering dealer.
PS Engineering, Inc. 2015 ©
PS Engineering, Inc. 2015 ©
PS Engineering, Inc. 2015 ©
Copyright Notice
Copyright Notice
Copyright Notice
0
0
0
0
0
0
B
B
B
T
T
T
0
0
0
0
0
0
B
B
B
T
T
T
o
o
o
o
o
o
n
n
n
n
n
n
n
n
n
n
n
n
e
e
e
e
e
e
c
c
c
c
c
c
t
t
t
t
t
t
i
i
i
i
i
i
v
v
v
v
v
v
i
i
i
i
i
i
t
t
t
t
t
t
y
y
y
y
y
y

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PMA7000H-BT and is the answer not in the manual?

Questions and answers

Related Manuals for PS Engineering PMA7000H-BT

Summary of Contents for PS Engineering PMA7000H-BT

  • Page 1 Any reproduction or retransmittal of this publication, or any portion thereof, without the expressed written permission of PS Engineering, Inc. is strictly prohibited. For further information contact the Publications Manager at PS Engineering, Inc., 9800 Engineering, Inc. is strictly prohibited. For further information contact the Publications Manager at PS Engineering, Inc., 9800 Engineering, Inc.

  • Page 2: Table Of Contents

    Table of Contents SECTION I GENERAL INFORMATION ..................1-1 INTRODUCTION..........................1-1 SCOPE .............................. 1-1 ....................1-2 OMPATIBLE EPLACEMENT NITS APPROVAL BASIS ..........................1-2 SPECIFICATIONS.......................... 1-2 EQUIPMENT SUPPLIED ..........................1-3 EQUIPMENT REQUIRED FOR NEW INSTALLATION BUT NOT SUPPLIED WITH UNIT ....1-3 LICENSE REQUIREMENTS......................
  • Page 3 PS Engineering PMA7000BT Series Audio Selector Panel and Intercom System Installation and Operator’s Manual 2.12 ................... 2-13 LUETOOTH NTERFACE HECKOUT 2.13 ........................2-13 INAL NSPECTION SECTION III OPERATION........................ 3-1 SCOPE .............................. 3-1 (EMG-F ) ................3-1 OWER WITCH PERATION (XMT) S )................

  • Page 4: Section I General Information

    Before installing and/or using this product, please read this manual completely. This will ensure that you will take full advantage of all the advanced features in the PMA7000BT. SCOPE This manual provides detailed installation and operation instructions for the PS Engineering PMA7000BT- series of Audio Selector Panel/Intercom Systems. This includes the following units: Model...

  • Page 5: Compatible Replacement Units

    PS Engineering PMA7000BT Series Audio Selector Panel and Intercom System Installation and Operator’s Manual level for the pilot and copilot, while the outer knob controls the passenger intercom volume. Intercom squelch is automatic. An “Alternate Intercom Mode” is incorporated in the PMA7000BT. This allows the passengers and crew to converse, but removes radio traffic from the passengers’...

  • Page 6: Equipment Supplied

    PS Engineering PMA7000BT Series Audio Selector Panel and Intercom System Installation and Operator’s Manual Voltage: 11 to 33 VDC Maximum Current: 2.5 Amp (Externally protected by a 3A pull-type breaker) Audio Selector Specifications 510  Audio selector panel input impedance: Input Isolation: -60 dB (min.)

  • Page 7: License Requirements

    PS Engineering PMA7000BT Series Audio Selector Panel and Intercom System Installation and Operator’s Manual Description Quantity Part Number Bottom Molex Connector Shell w/key, 44 pin, key 7/8 120-425-4400 Gold Plated Crimp Pins 425-001-0002 4 40 X 7/16 screw w/nylon patch...

  • Page 8: Section Ii - Installation

    Section 1.6 (B). If any claim is to be made, save the shipping material and contact the freight carrier. Do NOT return units damaged in shipping to PS Engineering. If the unit or ac- cessories show any sign of external shipping damage, contact PS Engineering to arrange for a replacement.

  • Page 9: Unit Installation

    PS Engineering PMA7000BT Series Audio Selector Panel and Intercom System Installation and Operator’s Manual If stereo music fidelity is not desired, consider purchasing the PMA7000M BT, P/N 050-781-0604, for existing mono installations. No rewiring is required and the installation is plug_and_play.

  • Page 10: Audio Panel Mounting Rack Installation

    PS Engineering PMA7000BT Series Audio Selector Panel and Intercom System Installation and Operator’s Manual 2.4.3 Audio Panel Mounting Rack Installation Remove the unit from the mounting tray by unscrewing the 3/32" hex-head screw that is in the center of the unit.

  • Page 11: Noise

    Refer to FAA Advisory Circular 43.13-2B for more information. Failure to use correct techniques may result in improper operation, electrical noise or unit failure. Damage caused by improper installation will void the PS Engineering warranty. NOTE: PS Engineering can make a custom wiring harness for the intercom. Call 1-800-ICS-AERO or see www.ps-engineering.com for details.

  • Page 12: Audio Panel Interface

    Unauthorized use of unapproved cellular telephone devices in aircraft is subject to FCC enforcement action, which may include a $10,000 fine per incident. PS Engineering, Inc. does not endorse using unapproved cellular telephone equipment in flight, and takes no responsibility for the user’s action.

  • Page 13: Swap" Mode

    PS Engineering PMA7000BT Series Audio Selector Panel and Intercom System Installation and Operator’s Manual 2.5.8 "Swap" Mode When a momentary, normally open, push-button switch is connected between pin 10 on the top connector and aircraft ground, the user can switch between Com 1 and 2 by depressing this switch without having to turn the mic selector switch.

  • Page 14: 2.5.15 Entertainment Input

    NOTE: The top connector harness can be custom made by PS Engineering, Inc. Simply call the factory and obtain a wire harness work-sheet. The harness will be made to your specifications and fully functionally tested.

  • Page 15: Pma7000Bt Intercom Expansion (J2, Pins P, S, And C)

    The PMA7000BT contains a 6-place intercom. In applications where more intercom positions are needed, PS Engineering can provide intercom expansion units, such as the IntelliPAX, part number 11606, 11606R, etc. These can add up to six additional stereo intercom stations, plus independent music input. Interface to the expansion unit is through J2, pins P (audio input from expansion unit), S (audio output to expansion unit) and C (9 VDC expansion power).
  • Page 16 PS Engineering PMA7000BT Series Audio Selector Panel and Intercom System Installation and Operator’s Manual Com 3 Volume- Must remove ESD Sheet Marker Speaker Volume Volume Marker Gain- Marker Gain LO Figure 2-3- PMA7000BT Adjustments Unsw # 3 Volume- Must remove ESD...

  • Page 17: Communications Antenna Installation Notes

    It is probable that radio interference will occur in the split mode when the frequencies of the two air- craft radios are adjacent, and/or the antennas are physically close together. PS Engineering makes no expressed or implied warranties regarding the suitability of the PMA7000BT in Split Mode.

  • Page 18: Pma7000Bt Pin Assignments

    PS Engineering PMA7000BT Series Audio Selector Panel and Intercom System Installation and Operator’s Manual PMA7000BT Pin assignments J2 Top Connector J1 Bottom Connector Chassis Ground Pilot Phone Audio Hi (Left) AUX Control Out MKR Coax Shield Copilot Phone Audio (Lt)

  • Page 19: Post Installation Checkout

    PS Engineering PMA7000BT Series Audio Selector Panel and Intercom System Installation and Operator’s Manual 2.10 Post Installation Checkout After wiring is complete, verify power is ONLY on pin 20 of the J1 (bottom connector), and airframe ground on bottom connector pin Z. Failure to do so will cause serious internal damage and void PS Engi- neering's warranty.

  • Page 20: 2.11.3 Receiver Sensitivity

    Complete logbook entry, and other documentation as required such as FAA Form 337, weight and balance computation. Sample text for FAA Form 337, and instructions for continuing airworthiness can be found in Appendix F. Return completed warranty registration application to PS Engineering, or register online at www.ps- engineering.com/support.shtml . 200-780-0204...

  • Page 21: Section Iii Operation

    Section III OPERATION GENERAL INFORMATION SCOPE This section provides detailed operating instructions for the PS Engineering PMA7000BT, Audio Selector Panel/Intercom Systems. Please read it carefully before using the equipment so that you can take full ad- vantage of its capabilities.

  • Page 22: Swap Mode (Switch From Com 1 To Com 2 Remotely)

    PS Engineering PMA7000BT Audio Selector Panel and Intercom System Installation and Operator’s Manual When the duplex enable, or SATELLITE TELEPHONE mode is implemented during installation, Com 3 becomes the “SAT TEL” position. This is the pilot’s “hook” switch, when the system is interfaced to an appropriate approved wireless telecommunication system, such as the AirCell system.

  • Page 23: Split Mode Ics

    Split mode, particularly on adjacent frequencies. PS Engineering makes no warranty about the suitability of Split Mode in all air- craft conditions. Note: Split Mode does not turn off other (Nav, ADF, etc.) selected audio to pilot. However, the copilot will only hear the selected communications receiver.

  • Page 24: Intercom Volume Control

    PS Engineering PMA7000BT Audio Selector Panel and Intercom System Installation and Operator’s Manual Table 3-1 Mic Muff ™ Part Numbers Manufacturer Model Mic Muff™ Part Number Bose Dynamic 90010 Electret 90015 M87 Dynamic 90020 David Clark H10-30 90010 H10-20, H10-40 90015 H10-13.4...

  • Page 25: Entertainment Input

    PS Engineering PMA7000BT Audio Selector Panel and Intercom System Installation and Operator’s Manual 3.6.3.1 Alternate Intercom Mode If an external switch is installed, the PMA7000BT can be placed into “Alternate Intercom Mode.” In this mode, the passengers will not hear aircraft radio in the ALL intercom mode. In addition, the passengers’...

  • Page 26: Satellite Telephone Mode

    PS Engineering PMA7000BT Audio Selector Panel and Intercom System Installation and Operator’s Manual Satellite Telephone Mode The Com 3 mode can serve as a full duplex interface for satellite telephone systems such as AirCell. When interfaced with an approved airborne telecommunications system, the PMA7000BT can serve as a audio control and distribution center.

  • Page 27: Bluetooth Telephone Mode

    3.8.2.1 Cellular telephone sidetone As shipped from PS Engineering, the PMA7000BT provides cellular telephone sidetone (the user’s voice fed back to the headset). Some cell phones provide sidetone. In PMA7000BT Telephone sidetone can be enabled/disabled by an internal modification. Contact PS Engineering for information.
  • Page 28 PS Engineering PMA7000BT Audio Selector Panel and Intercom System Installation and Operator’s Manual The Blue lamp, labeled "O," is the Outer Marker lamp and has an associated 400 Hertz 'dash' tone. The lamp and tone will be keyed at a rate of two tones/flashes per second when the aircraft is in the range of the Outer Marker Beacon.

  • Page 29: Section Iv- Warranty And Service

    (2) years from the date of purchase. During the first twelve (12) months of the two-year warranty period, PS Engineering, Inc., at its option, will send a replacement unit at our expense if the unit should be determined to be defective after consultation with a factory technician. For the remaining twelve (12) months of the two-year warranty period, the unit must be returned to PS Engineering, Inc., or an authorized...

  • Page 30: Appendix A - Pma7000Bt Installation Drawing

    PS Engineering PMA7000BT Audio Selector Panel and Intercom System Installation and Operator’s Manual Appendix A – PMA7000BT Installation Drawing 1.315 in Cutout size for front mount installation (33.4 mm) 6.31in (160.3 mm) 6.65 in (167 mm) Side View 0.60 in (15.25 mm) 1.31 in...

  • Page 31: Appendix B Bottom Connector Interconnect

    PS Engineering PMA7000BT Audio Selector Panel and Intercom System Installation and Operator’s Manual Appendix B Bottom Connector Interconnect Bottom Connector, J1 Com 1 Audio Hi Communications Com 1 Lo Transceiver #1 Com 1 Mic Audio Hi Com 1 Mic Key...

  • Page 32: Appendix C Top Connector Interconnect

    PS Engineering PMA7000BT Audio Selector Panel and Intercom System Installation and Operator’s Manual Appendix C Top Connector Interconnect PMA7000B J2 TOP CONNECTOR Pilot Phones (L) -see bottom connector. Copilot Phones (L) Copilot PhonesJack Copilot Phones (R) Copilot Phones Lo Pass. Phones (L) Pass.

  • Page 33: Appendix D- Instructions For Faa Form 337 And Continuing Airworthiness

    Aircraft equipment list, weights and balance amended. Compass compensation checked. A copy of the operation instruc- tions, contained in PS Engineering document 200-780-( ), revision ( ), dated ( ), is placed in the aircraft records. All work accomplished listed on Work Order...

  • Page 34: Appendix E Rtca Do160C (Eurocae Ed-14) Environmental Qualification Form

    Appendix E RTCA DO160C (EUROCAE ED-14) Environmental Quali- fication Form Audio Selector Panel/Intercom/Marker Beacon Receiver 9Part Number: 7000( ) FAA TSO Number: C50c, C35d Class A, JTSO 2C35d and JTSO C50c Manufacturer: PS Engineering Incorporated 9800 Martel Road Lenoir City TN 37772 Conditions Section Conducted Tests Temperature and Altitude Equipment tested to CAT A1 &...

This manual is also suitable for:

Pma7000bPma7000bt

Table of Contents
