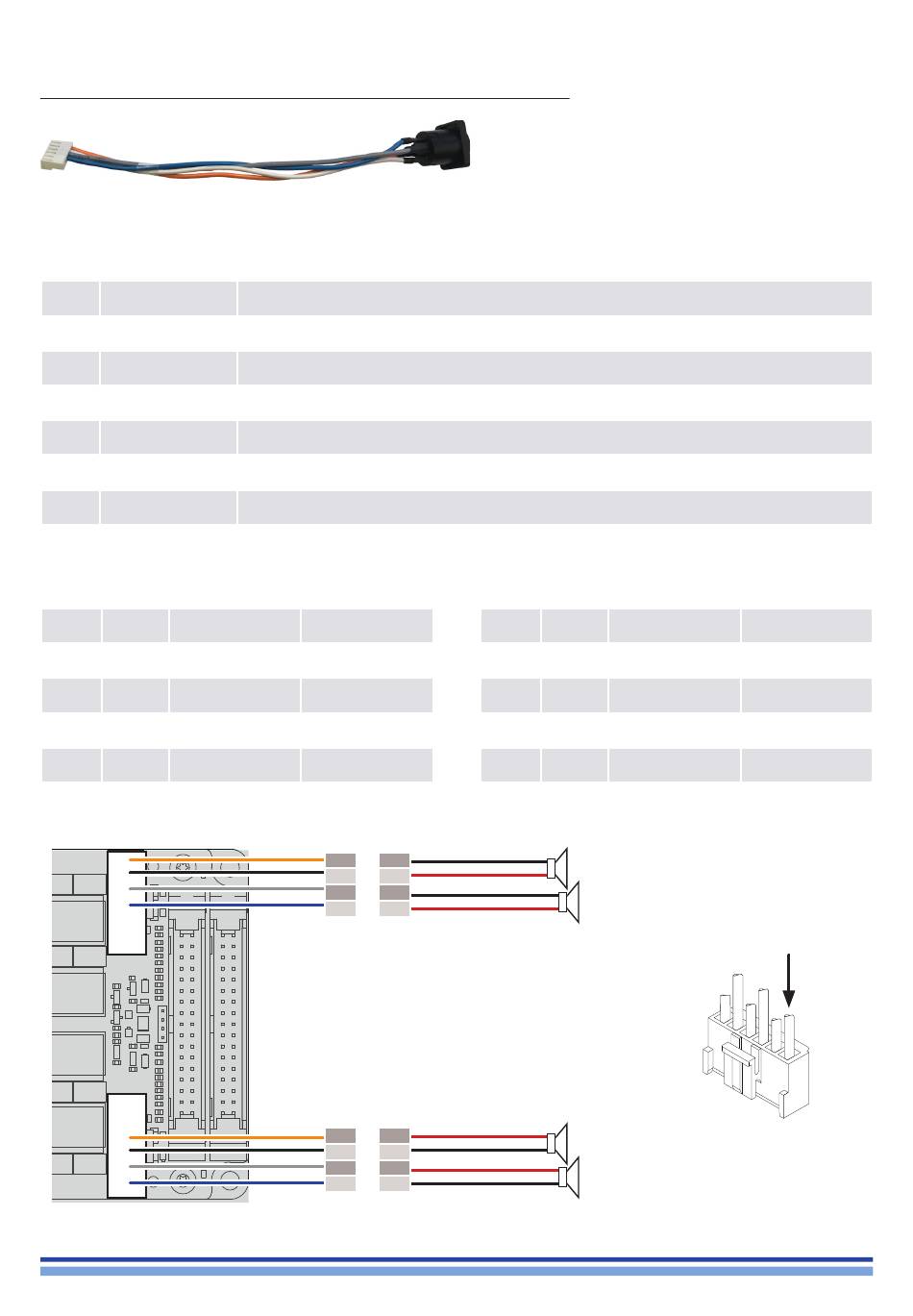

13 : 2.Output cable, 4 x SE configuration – CB000731
Bill of Materials
Q Part Description
1 Speakon
1 JST Connector
4 JST Contacts
1 White Cable
1 Blue Cable
1 Orange Cable
1 Grey Cable
Pin Out CH 1-3
JST Pin Cable Speakon Pin
1 ORANGE
2 WHITE
3 GREY
4 BLUE
5 N.U.
6 N.U.
CH 1 - 3
CH 2 - 4
SVH-21T-P1.1 (22 ~ 18 AWG), SVH-41T-P1-1 (20 ~ 16 AWG)
Speaker Pin
1- +
1+ -
2- +
2+ -
N.U. N.U.
N.U. N.U.
1- -
1+ +
2- -
2+ +
1- +
1+ -
2- +
2+ -
MPN / Specs
NL4MP-UC
VHR-6N
16 AWG
16 AWG
16 AWG
16 AWG
Pin Out CH 2-4
JST Pin Cable Speakon Pin
1 ORANGE
2 WHITE
3 GREY
4 BLUE
5 N.U.
6 N.U.
Speaker Pin
1- +
1+ -
2- +
2+ -
N.U. N.U.
N.U. N.U.
PIN 1
Cable Kit - KT000349 | 15
