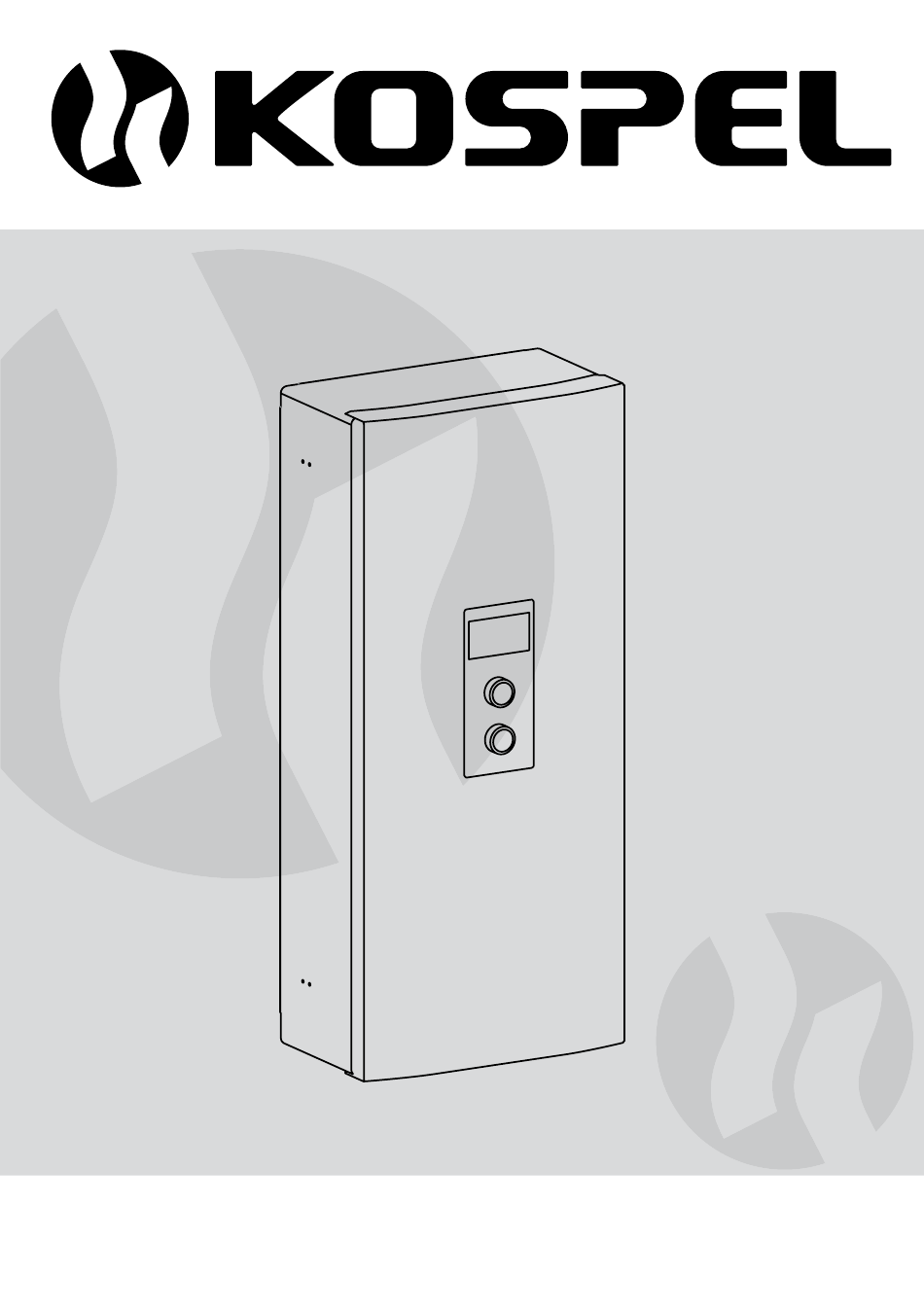

- Page 1 Electric Central Heating Flow Boiler EKCO.M3 EKCO.MN3 Assembly and operating instructions...
- Page 2 This appliance can be used by children aged from 3 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
-
Page 3: Safety Instructions
Safety instructions Read and strictly follow this installation and operating instructions to ensure a long life and reliable boiler operation. An efficient electrical installation which has been completed in accordance with the binding norm of electric installation. Central heating system equipped with an appropriate expansion vessel completed in accordance with binding norm of hydraulic installation. -
Page 4: Installation Notes
Installation notes EKCO.MN3 boilers are equipped with an expansion vessel (capacity: 5l, pressure: 1,5 bar). The expansion vessel is sufficient for following capacities of the heating system at given temperatures of the medium and central heating system pressure. Temperature of heating medium Capacity of central Pressure in central (feed and return) - Page 5 Tcyl The filter should be installed that the heating medium flow direction matches the arrow cast on the hull, and the cover was at the bottom of the filter. Filters can be mounted on horizontal and vertical pipelines. It is recommended that using shut-off valves immediately behind and ahead of the filter, which will make it easy cleaning the filter insert or replacing it.
-
Page 6: Assembly And Installation
Assembly and installation Hang the boiler up in a vertical position on fixing screws with the inlet and outlet pipes to the bottom, maintaining clearances from the walls and the ceiling. Connect the boiler to the central heating system equipped with a cut-off valves. Fill the central heating system with treated water or non-freezing liquid what influences on the durability of immersion... - Page 7 Connection to one-phase electrical system (for boilers of 2kW, 4kW, 6kW and 8kW) PNL - connection points of neutral, protective and phase conductors [1] - temperature limiter [2] - additional conductors (for one-phase system only) Connection to the three-phase electrical system (for boilers of 4, 6, 8kW, you should delete conductors (2) and switch no.
- Page 8 Selecting the type of power supply installation three-phase Type of electrical installation - switch no. 3 one-phase RS 485 terminator- switch no. 4 (safety switched on instruction of module connected to the remote boiler control socket) switched off- default setting Note: switches 1, 2 must not be adjusted! - save the factory settings.
- Page 9 PUMP M.SUPPLY PUMP.C PUMP AZV 642 Do not connect any voltage into FN, MA, RT, Tcyl, Tos, Tr entries! This can result in permanent controller damage. GB-090B_f.1158...
- Page 10 8 and the manual of valve and servomotor. Note: In case of activation DHW cylinder you should follow Service / Configuration - cylinder. Valves can be purchased in KOSPEL.
-
Page 11: Control Panel
Control panel Use the operating dial [3] to set one of the modes: winter / summer / off . By turning the navigation dial [2] (left or right), with winter or summer mode active, 9:37 THU 14.04.2020 9:37 THU 14.04.2020 change between function screens on the 5.1°... - Page 12 MAIN SCREEN 1 - heat reception signalling 2 - executing of a heating program 9:37 THU 14.04.2020 9:37 THU 14.04.2020 3 -temperature settings for the room 4 - room temperature 5.1° 5.1° 5 - outside temperature 6 - storage temperature 60°...
- Page 13 Device’s error indication Circulation pump operation indication (pulsating means that minimum flow is not activated) Heating on indication SETTINGS: Adjusting boiler parameters to user preferences. 8:38 THU 14.04.2020 8:38 THU 14.04.2020 SETTINGS SETTINGS ● BOILER TEMPERATURE: Target CH temperature (only available in basic mode and setting the constant parameters of CH [CONFIGURATION>...
- Page 14 WEEKLY: assigning for each week day one of the previously set daily programs. ● BUFFER LOAD PROGRAM (only available in buffer’s mode). 1 - the number of the time interval (max.5) BUFFER LOAD PROGRAM BUFFER LOAD PROGRAM No.1 No.1 2 - buffer charging start time 3 - buffer charging finish time 1 6:00 - 8:00 2 18:30 - 23:00...
- Page 15 No. 1 ... No. 8> setting of 8 daily programs in each daily program. There are 5 adjustable time intervals in which it will work circulation pump The procedure for setting daily programs is described in the Daily schedule. WEEKLY: assign one for each day of the week from set daily programs. ●...
- Page 16 SERVICE / CONFIGURATION PREVIEW OF PARAMETERS: 8:38 THU 14.04.2020 8:38 THU 14.04.2020 Preview of input and output signals of the boiler. CONFIGURATION: adaptation of the boiler to the heating system in the facility. SERVICE/CONFIGURATION SERVICE/CONFIGURATION * Changes in the configuration menu are possible after entering an access code. When prompted for an access code, turn the navigation dial to the required code and confirm the code by pressing the dial.
- Page 17 ● DHW CYLINDER: HW COIL TEMPERATURE: the setting of coil’s power temperature. REGULATION: DHW cylinder temperature control - INSIDE> according to Tcyl sensor/ OUTSIDE> according to external thermostat (not available when OUTSIDE there are items in the menu: DHW CYLINDER TEMPERATURE, DHW CYLINDER PROGRAM, DISINFECTION and MANUAL mode).
- Page 18 H MAX- pump’s raising height. ● MAX RATED POWER: setting heater’s rated power. ● COMMUNICATION: DEVICE NUMBER: device’s number on the mains. ● ENTRY FN: selection of reaction to closing FN inlet: either setting economy temperature or frost protection. ● PRESSURE SENSOR : no ->...
-
Page 19: Daily Schedule
Start-up With the start-up of the boiler or after the restoration of the factory settings it is necessary to select MENU’s language and boiler’s rated power. Boiler is ready to work properly only after selection of these parameters. Daily schedule: 1 - time period panel 2 - no. -
Page 20: Turbo Function
If there are no defined time frames, then after CH PROGRAM CH PROGRAM No.3 No.3 selecting „new” the time frame 00:00am to 23:59pm will be set , which should be edited in 1 0:00 - 23:59 accordance with user’s needs. The daily program will be saved to the boiler’s settings by pressing the command „END”. -
Page 21: Heating Curve
Heating curve Boiler’s controller is responsible for maintaining proper temperature in central heating installation depending on the outside temperature. While the temperature outside the facility is low, heat demand within the facility is higher, whereas while the temperature outside is high, analogically, there’s no need to maintain high temperature within the installation. -
Page 22: Technical Data
Outlet flow temperature °C 20 ÷ 85 Max. temperature °C EKCO.MN3 716 x 316 x 235 Dimensions (height x width x depth) EKCO.M3 716 x 316 x 191 EKCO.MN3 ~20,5 Weight EKCO.M3 ~15,8 Boiler’s connections G 3/4" (inside thread) Expansion vessel EKCO.MN3... - Page 23 Boiler 4 / 6 / 8 Rated power 230V~ 400V 3N~ Rated voltage Rated current 17,4 26,1 34,8 3x5,8 3x8,7 3x11,6 Min. power supply cable 3x2,5 5x2,5 cross-section Max. power supply cable 5 x 16 cross-section Max. allowed network Ω 0,27 0,17 0,15...
- Page 24 KOSPEL S.A. 75-136 Koszalin, ul. Olchowa 1 tel. +48 94 31 70 565 serwis@kospel.pl www.kospel.pl...
