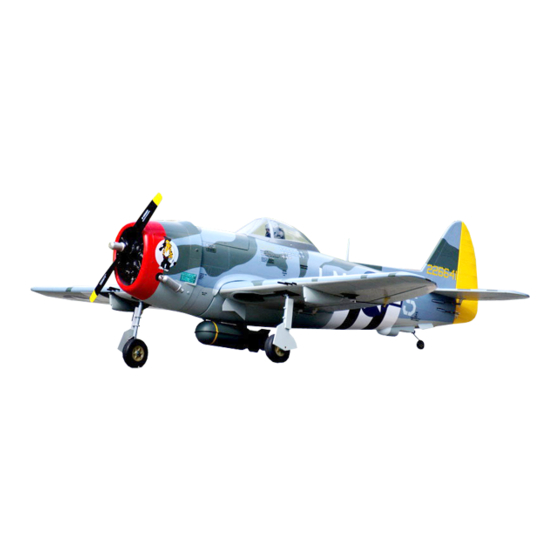

Radio control model p-47b/d thunderbolt
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
P-47B/D THUNDERBOLT
VQ No: VQA142DC
VQ No: VQA142DT
VQ No: VQA142BT
Instruction manual / Montageanleitung
SPECIFICATIONS
Wingspan:......................................1480mm
Length:...........................................1215mm
Electric Motor:.....................See next pager
Glow Engine:.................... .46 2-T / .70 4-T
RTF Weight: 3.1Kg (will vary with equipment
use)
Radio:....................7 Channel / 7 Servos
Function: Ailerons-Elevator-Rudder-Throttle
Flaps.
WARNING! This radio controlled model is NOT a toy. If modified or flown carelessly it could go out of controll and
cause serious human injury or property damage. Before flying your airplane, ensure the air field is spacious enough.
Always fly it outdoors in safe areas and seek professional advice if you are unexperienced.
ACHTUNG! Dieses ferngesteuerte Modell ist KEIN Spielzeug! Es ist für fortgeschrittene Modellflugpiloten bestimmt,
die ausreichende Erfahrung im Umgang mit derartigen Modellen besitzen. Bei unsachgemässer Verwendung kann
hoher Personen- und/oder Sachschaden entstehen. Fragen Sie in einem Modellbauverein in Ihrer Nähe um
professionelle Unterstätzung, wenn Sie Hilfe im Bau und Betrieb benötigen. Der Zusammenbau dieses Modells ist
durch die vielen Abbildungen selbsterklärend und ist für fortgeschrittene, erfahrene Modellbauer bestimmt.
Radio control model / Flugmodel
ALL BALSA, PLYWOOD CONSTRUCTION AND ALMOST READY TO FLY
TECHNISCHE DATEN
Spannweite:...................................1480mm
Lange:............................................1215mm
Elektroantrieb.............(siehe nächste Seite)
Verbrennerantrieb:...............7.45cc - 11.5cc
Fluggewicht:.......................................3.1Kg
Fernsteuerung..........7 Kanal / 7 Servos
VQA142DC

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VQA142DC and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for VQ VQA142DC

Summary of Contents for VQ VQA142DC

  • Page 1 Radio control model / Flugmodel P-47B/D THUNDERBOLT VQA142DC VQ No: VQA142DC VQ No: VQA142DT VQ No: VQA142BT ALL BALSA, PLYWOOD CONSTRUCTION AND ALMOST READY TO FLY Instruction manual / Montageanleitung TECHNISCHE DATEN SPECIFICATIONS Wingspan:........1480mm Spannweite:........1480mm Length:...........1215mm Lange:..........1215mm Electric Motor:.....See next pager Elektroantrieb.....(siehe nächste Seite)
  • Page 2 REQUIRED FOR OPERATION (Purchase separately) Flap: “Y” x2 pcs Aileron: 50cmx2 pcs Aileron: “Y”x1pcs Flap: 30cmx2 pcs Rx battery pack: 20cmx1 pcs 700-800W Brushless Motor Standard Mini .72 ~.82 - 4 cycle .46 ~ .50 - 2 cycle Minimum 7 channel radio Elevator : 1 standard servo Rudder: 1 standard servo Aileron: 2 mini servo...

  • Page 3: Engine Mount

    P-47 THUNDERBOLT 1- ENGINE MOUNT Attach the engine mount beams onto the fire-wall so the distance between of two engine mount beams is “A”,and B=B’ as show. Secure the engine mount beams onto the fire-wall with litter CA glue (1B) ! Align the mark on both engine mount Push left (or right) the magnetic fuel tank hatch beams with the mark on the fuselage...
  • Page 4 P-47 THUNDERBOLT 2- ENGINE 125mm FUSELAGE SIDE-VIEW ! Engine thrust on balk head is already adjust at factory C=125mm 3x25mm screw ..4 Washer ..4 Position the engine to the engine mounts so the distance from the prop hub to the fire-wall is 125mm. Mark the engine mounting plate where the four holes are to be drilled (2A) 3x25mm Reposition the engine on the engine mount beams, aligning...

  • Page 5: Electric Motor

    P-47 THUNDERBOLT 3- ELECTRIC MOTOR Using a aluminum motor mounting plate as a template, mark the plywood motor mounting plate where the four holes are to be drilled. Remove the aluminum motor mounting plate and drill a 1/8”(3mm) hole through the plywood at each of the four marks marked .
  • Page 6 P-47 THUNDERBOLT 4- WING: SERVO AND LINKAGES Plastic control horn ....2 set Secure the plastic control horn in place using the thin CA glue. Thin CA Cut away only Plastic control horn the covering ....2 set 2x20mm screw ..4 2 mm Using the thread (pre-installed at factory) to slide the aileron and flap extension cord (not include) into the wing half.
  • Page 7 P-47 THUNDERBOLT 5- JOINNING THE WING Draw the center line on the wing joiner Without using Epoxy yet, trial fit the wing joiner into one of the wing panels. Next, slide the other wing half onto the dihedral brace until the wing panels meet.

  • Page 8: Fixed Gear Installation

    P-47 THUNDERBOLT 6- FIXED GEAR ASSEMBLY Main gear (left) 3x20mm Main gear (right) Main landing gear Nylon gear strap Ply gear mount flat Plastic strap Gear mount Square plastic Gear mount 3x20mm screw..16 (plywood) 3x20mm Ply gear mount plate Square plastic P-47 THUNDERBOLT 7- FIXED GEAR INSTALLATION 3x10mm screw...
  • Page 9 P-47 THUNDERBOLT 8- GEAR DOOR In case of fixed gear using 1.5mm plastic strap 2x6mm screw Plywood gear cover Plastic strap Do the same way with ..2 1.5mm second wing half. P-47 THUNDERBOLT 9- ELECTRIC RETRACT GEAR INSTALLATION GEAR SWITCH EXTENDED RETRACTED Important: When you “on”...
  • Page 10 P-47 THUNDERBOLT 10- STRUT AND GEAR DOOR ASSEMBLY Wheel Cover Parts 3mm plywood Adjust the GP2 and GP1 Glue the G2A to the Strut and Glue the G3 to the G2A before glue them to the G1. G2, But do not glue the GP2 Glue the GP2 and GP1to and GP1 to the Strut in this time.

  • Page 11: Wing Installation

    P-47 THUNDERBOLT 12- WING INSTALLATION 6x50mm nylon bolt ..2 P-47 THUNDERBOLT 13- STABILIZER INSTALLATION Push the horizontal stabilizer into the slot on the fuselage Cut away only Using a sharp hobby knife, carefully cut away as show. Check the alignment of the horizontal stabilizer the covering the covering around of all slots for the horizontal by measuring from a fixed point along the center line of...
  • Page 12 P-47 THUNDERBOLT 14- STABILIZER INSTALLATION B=B’ Apply thin CA glue into the slot where B’ the fuselage meet the horizontal stabilizer. Install the horizontal stabilizer onto the fuselage and adjust the alignment as described in steep 13A. Apply CA glue Note: it is important to ensure that the horizontal stabilizer is both sides.
  • Page 13 P-47 THUNDERBOLT 15- ELEVATOR AND CONTROL HORN Without using glue yet, push the elevator and its hinges into the hinge slots in trailing edge of the horizontal stabilizer. Apply thin CA glue both side TOP-SIDE HORIZONTAL STABILIZER Apply a thin layer of petroleum jelly Apply thin CA glue on the top of the hinge...
  • Page 14 P-47 THUNDERBOLT 16- RUDDER AND CONTROL HORN Without using glue yet, push the rudder and its hinges into the hinge slots in trailing edge of the vertical stabilizer. Apply thin CA glue both side Vertical Vertical Stabilizer Stabilizer Apply thin CA glue on the left and right of the hinge...

  • Page 15: Tail Gear Installation

    P-47 THUNDERBOLT 17- TAIL GEAR INSTALLATION 1- Insert the tail wheel pushrod into the hole on the tail gear control horn (as show). 2- Install the tail wheel control horn in place. 3- Instal the tail wheel gear in place. 4- Secure the tail wheel control horn in place using a 5/64”(2mm) screw set, Ensure smooth non-binding movement.
  • Page 16 P-47 THUNDERBOLT 18- SERVO AND LINKAGES Insert the rudder push-rod from the rear of the fuselage. Screw the clevis mid-thread, then connect to the rudder control horn. Insert the two elevator push-rod from the rear of the fuselage. Screw the clevis mid-thread, then connect to the elevator control horn. Steel clevis ..3 2x950mm rod...
  • Page 17 P-47 THUNDERBOLT 19- FIBERGLASS COWL AND DUMMY ENGINE 2x6mm screw 2x6mm screw ..6 2.5x10mm screw ..5 2,5X10mm...

  • Page 18: Bottom Cover

    P-47 THUNDERBOLT 20- BOTTOM COVER 2x6mm self tapping screw 2x6mm screw ..10...
  • Page 19 P-47 THUNDERBOLT 21- BOMB ASSEMBLY Sander...
  • Page 20 Sticker Black Sticker Nose Art Sticker for P-47-B “Touch of Texas” P-47B “TOUCH OF TEXAS” DECAL - VQ MODELS Red Sticker IMPORTANT: Please do not clean your model with strong solvent or pure alcohol to keep the colour of your model not fade.
  • Page 21 P-47 THUNDERBOLT 23- STICKER P-47D Camo. LM-Z Sticker BOLTS IN EXHAUST MANIFOLD CLAMPS SHOULD BE TIGHTENED JUST BEYOND FINGER TIGHTNESS AS FOLLOWS: 1- DRAW UP BOLTS FULL TIGHT WITH WRENCH. 2- BACK OF TILL LOOSE. 3- DRAW UP FINGER TIGHT AND THEN TAKE ABOUT ONE FULL TURN WITH WRENCH.
  • Page 22 P-47 THUNDERBOLT 24- STICKER P-47D “Tarheel Hal” IA-N P-47 THUNDERBOLT 25- BALANCE Note: Adjust the location of the battery pack to achieve this C.G location. (88 ~ 93mm) DO NOT try to fly an out-of balance model! Wing center section Lead How to add nose weight To get the correct C.G., Several strips of lead weight were...
