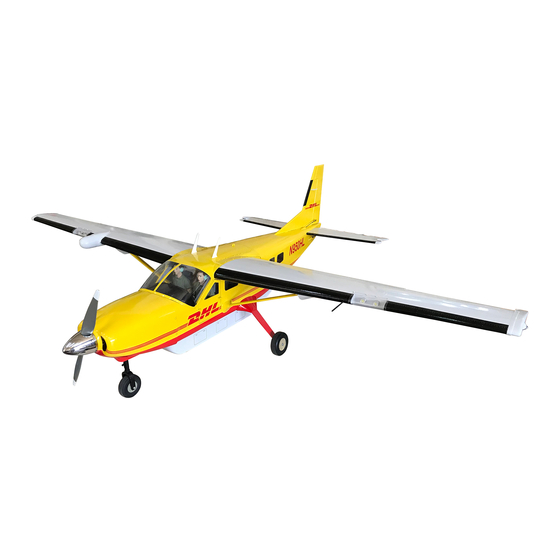

VQ CESSNA 208 Instruction Manual

Radio control model
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
CESSNA 208
Instruction manual / Montageanleitung
SPECIFICATIONS
Wingspan:.....................................1700mm
Length:...........................................1175mm
Electric Motor:.....................See next pager
Glow Engine:.................... .46 2-T / .70 4-T
RTF Weight: 3.2Kg / 7.05lbs (Will vary with
Equipment Used).
Radio:......................6 Channel / 6-7 Servos
Function: Ailerons-Elevator-Rudder-Throttle
Flaps.
WARNING! This radio controlled model is NOT a toy. If modified or flown carelessly it could go out of controll and
cause serious human injury or property damage. Before flying your airplane, ensure the air field is spacious enough.
Always fly it outdoors in safe areas and seek professional advice if you are unexperienced.
ACHTUNG! Dieses ferngesteuerte Modell ist KEIN Spielzeug! Es ist für fortgeschrittene Modellflugpiloten bestimmt,
die ausreichende Erfahrung im Umgang mit derartigen Modellen besitzen. Bei unsachgemässer Verwendung kann
hoher Personen- und/oder Sachschaden entstehen. Fragen Sie in einem Modellbauverein in Ihrer Nähe um
professionelle Unterstätzung, wenn Sie Hilfe im Bau und Betrieb benötigen. Der Zusammenbau dieses Modells ist
durch die vielen Abbildungen selbsterklärend und ist für fortgeschrittene, erfahrene Modellbauer bestimmt.
Radio control model / Flugmodel
ALL BALSA, PLYWOOD CONSTRUCTION AND ALMOST READY TO FLY
TECHNISCHE DATEN
Spannweite:...................................1700mm
Lange:............................................1175mm
Elektroantrieb.............(siehe nächste Seite)
Verbrennerantrieb:...............7.45cc - 11.5cc
Fluggewicht:.......................................3.2Kg
Fernsteuerung.............6 Kanal / 6-7 Servos

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CESSNA 208 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for VQ CESSNA 208

Summary of Contents for VQ CESSNA 208

  • Page 1 Radio control model / Flugmodel CESSNA 208 ALL BALSA, PLYWOOD CONSTRUCTION AND ALMOST READY TO FLY Instruction manual / Montageanleitung TECHNISCHE DATEN SPECIFICATIONS Wingspan:........1700mm Spannweite:........1700mm Length:...........1175mm Lange:..........1175mm Electric Motor:.....See next pager Elektroantrieb.....(siehe nächste Seite) Glow Engine:.....46 2-T / .70 4-T Verbrennerantrieb:....7.45cc - 11.5cc...

  • Page 2: Conversion Table

    REQUIRED FOR OPERATION (Purchase separately) More info: www.pichler-modellbau.de 11x6 for .46 - 2 cycle engine 12x6 for .60 - 4 cycle engine 12x7 for .70 - 4 cycle engine Extension for aileron 13x7 for electric motor servo, retract servo and Rx battery pack. .60 ~.70 - 4 cycle .46 ~ .50 - 2 cycle 700Watt...
  • Page 3 1-Nose gear CESSNA 208 3x20mm screw ...4...

  • Page 4: Engine Mount

    2-Nose gear CESSNA 208 3-Engine mount CESSNA 208 ! Align the mark on both engine mount Attach the engine mount beams onto the fire-wall beams with the mark on the fuselage so the distance between of two engine mount beams is “A”,and B=B’...
  • Page 5 4-Engine mount CESSNA 208 Insert the blind-nut onto each of the four holes make above. Reposition the engine mount beams on to the fire-wall and secure them with four 4x25mm screws. 4x25mm screw - washer ....4 Blind-nut ....4 Position the engine to the engine mounts so the distance from the prop hub to the fire-wall is 130mm.

  • Page 6: Engine Installation

    4-Engine installation CESSNA 208 Reposition the engine on the engine mount beams, aligning it with the holes. Secure the engine to the engine mount using four 3x25mm screws. Note: Apply Silicon sealer to each of the 3x25mm screw and nut.
  • Page 7 6-Electric motor mount CESSNA 208 Using a wooden motor mounting plate as a template, mark the fire-wall where the four holes are to be drilled. ! Align the mark on wooden motor mounting plate with the mark on the fire-wall.

  • Page 8: Main Landing Gear

    6-Electric motor mount CESSNA 208 Adjust the wooden motor mount so the distance from the prop hub to the fire-wall is 130mm. Secure the Motor to the wooden 130mm motor mounting plate using the 3mm bolt / nut...4 four 3mm bolts.
  • Page 9 8-Main landing gear CESSNA 208 3x15mm screw ....4 4x20mm nylon bolt ..2 4x20mm nylon bolt...

  • Page 10: Main Wheel

    9-Main landing gear CESSNA 208 2x8mm screw 10-Main wheel CESSNA 208 4mm nut 4mm nut 75mm wheel ...2 4x45mm screw 4X45mm screw ...2 Aluminum landing gear 4mm nut ....4 4mm washer ....6...

  • Page 11: Horizontal Stabilizer

    11-Horizontal stabilizer CESSNA 208 Using a sharp hobby knife, carefully cut away the covering around of all slots for the horizontal stabilizer and vertical fin installation. Pull the left and right elevator out of the horizontal Cut away only stabilizer.
  • Page 12 12-Horizontal stabilizer CESSNA 208 Install the horizontal stabilizer onto the fuselage and adjust the alignment as described in section 11. Note: it is important to ensure that the horizontal stabilizer is also level in regards to the fuselage. Apply the thin CA along the area where the covering was removed in the previous step and to the fuselage where the horizontal stabilizer mounts .
  • Page 13 13-Horizontal stabilizer CESSNA 208 B’ B=B’ STEP 13A Trial fit the vertical fin in position. Using a 90 degree triangle or adjust the vertical stabilizer ensure that the B=B’ as shown, the vertical stabilizer is perpendicular to the horizontal stabilizer.
  • Page 14 14-Horizontal stabilizer CESSNA 208 RIGHT-SIDE LEFT-SIDE Apply thin CA Apply thin CA glue on the right glue on the LEFT of the hinge of the hinge ! Securely glue together. If coming off during fly, you lose control of your air plane.
  • Page 15 15-Wing: Flap and Aileron servo CESSNA 208 FLAP SERVO HATCH - BOTTOM VIEW FLAP SERVO HATCH - TOP VIEW 1.5mm Using the thread (pre-installed at factory) to slide the aileron extension cord into the wing half. Flap servo hatch 30cm Extension cord...
  • Page 16 16-Wing: Flap and Aileron linkages CESSNA 208 cut away only the covering The rectangular holes were cut out at the factory. cut away only the covering Thin CA Securely glue together. If coming off during flight, you lose control of your air plane.
  • Page 17 17-Wing: wing brace CESSNA 208 3X12mm screw ..2 1.mm 1.mm 2x8mm screw ..6...
  • Page 18 18-Wing: CESSNA 208 Piece A for top of the wing. Piece B for bottom of the wing. Adhesive tape 2X8mm screw 1.mm 2x8mm screw ..6...
  • Page 19 19-Wing: Lights CESSNA 208 Not included. These parts must be purchased separately 1.mm 2x8mm screw ..6 Plastic wing tip...
  • Page 20 20-Wing: Lights CESSNA 208 Not included. These parts must be purchased separately...
  • Page 21 21-Elevator&Rudder servo - linkages CESSNA 208 Elevator linkages 2x950mm Elevator pushrod Connector 2x100mm rod Elevator servo Rudder&Nose gear linkages Connector Nose gear pushrod Rudder pushrod Rudder servo Nose gear pushrod Elevator servo Rudder servo FUSELAGE - FRONT - TOP VIEW...
  • Page 22 22-Joining the wings CESSNA 208 The blind nut inside the fuselage may be move up and down so that the wing brace install easily. 3mm blind nut ..2 3x15mm screw ..2...
  • Page 23 23-Joining the wings CESSNA 208 1.mm 2x8mm screw ..6 24-Cowling CESSNA 208 Secure the mufer to the cowl with thin CA glue. Fix the mufer in place using 5 min. epoxy (inside the cowl). Out side In side 1.5mm 2.5x10mm screw...
  • Page 24 25-Strut&nose wheel CESSNA 208 Clear epoxy 4x40mm screw ...1 4mm washer ...2 4mm nut ...3...
  • Page 25 26-Pilot gure&Plastic cover CESSNA 208 2x8mm screw...
  • Page 26 27-Hatch CESSNA 208 Magnetic hatch 28-Cargo drilling CESSNA 208 4x20mm nylon bolt ..1...
  • Page 27 29-Decal CESSNA 208 Note: Cut out the stickers and apply them in the proper area. Do not peel the backing paper off all at once. Peel off one corner of the backing and cut off with scissors. Arrange sticker on model and when satisfied adhere the corner without backing.

  • Page 28: Control Surface

    IMPORTANT: Flying your model at these throws will provide you with the greatest chance for successful first flights. If, after you have become accustomed to the way the Cessna 208 flies, you would like to change the throws to suit your taste that is fine.
