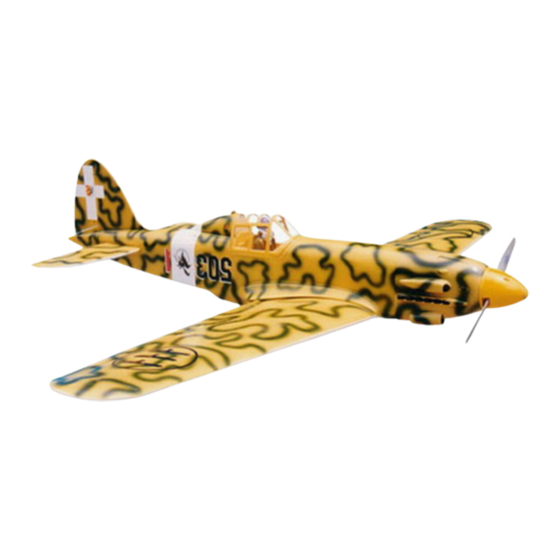

VQ FIAT G-59 Instruction Manual

45 class 2-cycle engine; 70 class 4-cycle engine
Hide thumbs

Advertisement

Quick Links

Download this manual
45 Class
2-cycle engine
70 Class
4-cycle engine
TECHNISCHE DATEN
Spannweiter
Lange
Elektroantrieb
870 Watt (PULSAR 60)
Verbrennerantrieb
7.5cc 2-T / 8.5cc 4-T
Fernsteuerung
5 Kanal / 5-6 Servos
SPECIFICATIONS
Wingspan
Length
Electric Motor
870 Watt (PULSAR 60)
Glow Engine
7.5cc 2-T / 8.5cc 4-T
Radio
5 Channel / 5-6 Servos
WARNING! This radio controlled model is NOT a toy. If modified or flown carelessly it could go out of controll and
cause serious human injury or property damage. Before flying your airplane, ensure the air field is spacious enough.
Always fly it outdoors in safe areas and seek professional advice if you are unexperienced.
ACHTUNG! Dieses ferngesteuerte Modell ist KEIN Spielzeug! Es ist für fortgeschrittene Modellflugpiloten bestimmt,
die ausreichende Erfahrung im Umgang mit derartigen Modellen besitzen Bei unsachgemäßer Verwendung kann
hoher Personen- und/oder Sachschaden entstehen. Fragen Sie in einem Modellbauverein in Ihrer Nähe um
professionelle Unterstützung, wenn Sie Hilfe im Bau und Betrieb benötigen. Der Zusammenbau dieses Modells ist
durch die vielen Abbildungen selbsterklärend und ist für fortgeschrittene, erfahrene Modellbauer bestimmt.
FIAT G-59
1580mm
1180mm
1580mm
1180mm
C
4
O
A
S
C
T
C
O
I
R
A
M
O
