HURRICANE
Almost ready to fly
SPECIFICATIONS
Wingspan.......63 in. / 161cm
Length............50 in. / 129cm
Engine.............50~60 2T / 70~90 4T
Or Electric equivalent.
RC Functions:
Motor - Rudder - Aileron - elevator
Flap - Retract landing gear
INSTRUCTION MANUAL
WARNING!
This radio control model is not a toy. If modified or flow carelessly it could go out of control
and cause serious bodily injury or property damage.
Before flying your airplane, ensure the air field is spacious enough.
Always fly it outdoors in safe areas with no debris or obstacles.
RADIO CONTROL MODEL
VQAA040G
VQAA040B
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for VQ VQAA040G
Summary of Contents for VQ VQAA040G
-
Page 1: Specifications

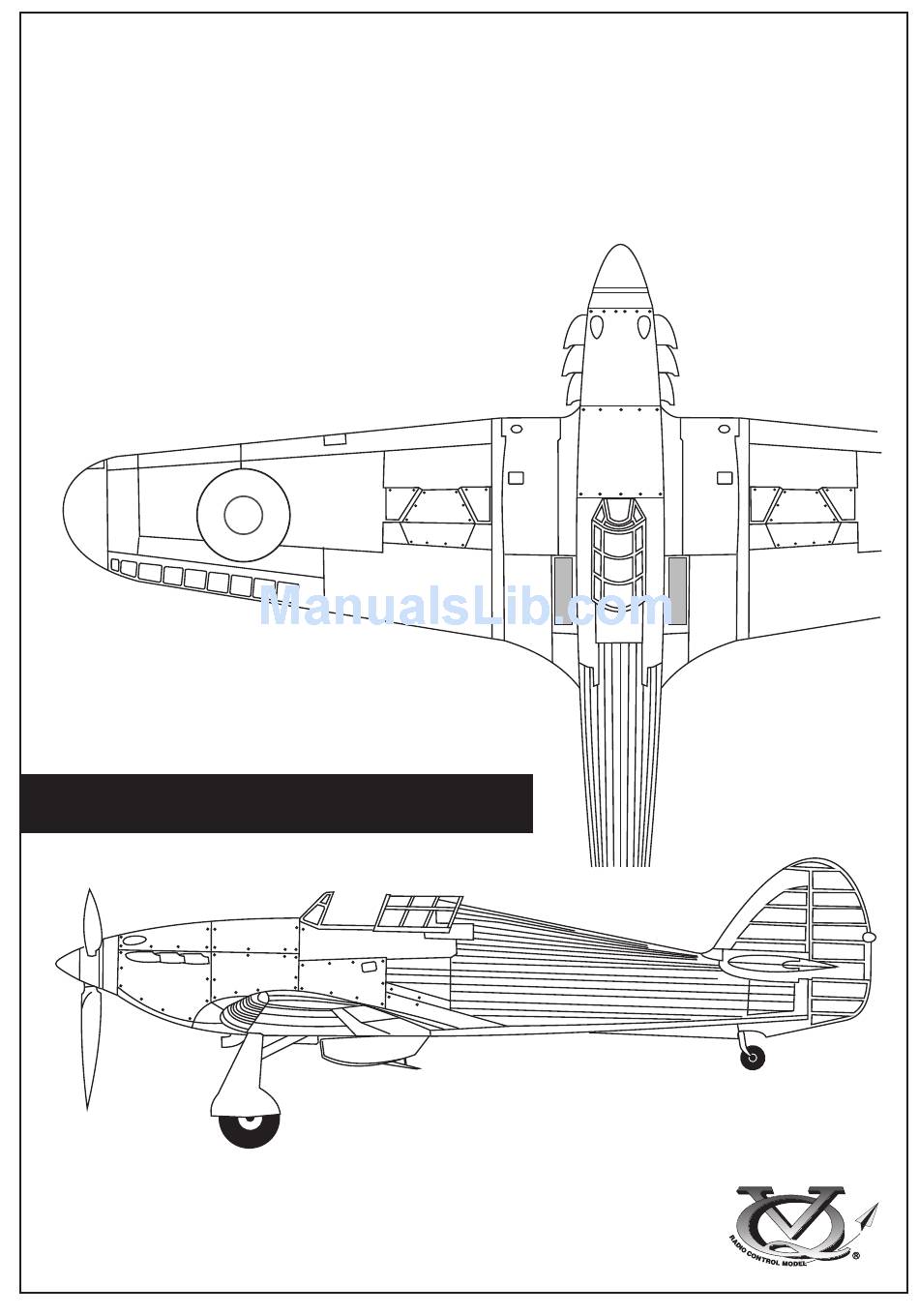

VQAA040G RADIO CONTROL MODEL VQAA040B HURRICANE Almost ready to fly SPECIFICATIONS Wingspan..63 in. / 161cm Length....50 in. / 129cm Engine.....50~60 2T / 70~90 4T Or Electric equivalent. RC Functions: Motor - Rudder - Aileron - elevator Flap - Retract landing gear... - Page 2 REQUIRED FOR OPERATION (Purchase separately) 12x6 for .60 - 2 cycle engine Extension for aileron 13x6 for .70 - 4 cycle engine servo, retract servo. 14x6 for .90 - 4 cycle engine 14x8 ~ 15x8 - Brushless Motor Brushless Motor Control Retract landing gear VQAR06 Retract servo...
- Page 3 1- Retract / Flap servo Included with the radio set. Flap servo Retract servo 5/64 CENTER WING - TOP VIEW CENTER WING - BOTTOM VIEW 2- Retract landing gear 3x12mm screw ..8 Bend wire for smooth retracting Trial fit the push rod into the wing.
-
Page 4: Aileron Servo
4-Center wing - Fix gear 3x10mm Plastic strap Gear mount (hard wood) 2x3mm screw Ply gear mount plate Square plastic 3x10mm Main landing gear ABS gear cover 5/64 2x12mm 1/16 ABS gear strap Main landing gear FIX GEAR INSTALLATION CENTER WING - BOTTOM VIEW CENTER WING - BOTTOM VIEW 5- Center wing - Flap Ensure smooth non-binding... -
Page 5: Joining The Wing
7- Aileron servo Assemble left and right wings the same way WING - BOTTOM VIEW Dowel 8- Joining the wing Dowel WING - TOP VIEW Aileron servo !Securely glue together, If coming extension (N.I) off during flights, you lose control of your airplane which leads to accidents ! CENTER-WING... -
Page 6: Tail Wheel
NOTE: Insert the tail gear 2mm tail gear horn 10- Tail wheel pushrod into the tail gear ....1 horn before insert the tail Tail gear mount gear horn on to the tail gear mount (step 2) Four nuts are installed at factory....1 3x15mm screw ....4... -
Page 7: Servo Installation
12- Servo installation BOTTOM VIEW Rudder servo Throttle servo NOTE: Place of throttle servos may be change depend of engine (Four-stoke or two-stroke engine) Elevator servo 13- Push rod BOTTOM VIEW Rudder push rod Connector Elevator push rod ....2 Tail wheel push rod Connector Rudder servo ....2... -
Page 8: Engine Mounts
Engine thrust on balk head is 14- Engine mounts already adjust at factory 13/64 3mm ply wood (A) Plywood template(B) 13/64 Insert the plywood template into the fire wall and Attach the plywood (A) to the plywood template(B) drill four 13/64”(5mm) holes through the fire wall Secure them together with one 3x10mm screw, ensure that these parts move freely. -
Page 9: Fuel Tank Installation
16- Fuel tank installation To muffler Filler tube Rubber stopper Stopper To engine After confirming the direction . Insert this assembly, clunk end first, into 3x35 mm screw the fuel tank and tighten and screw the fuel tank cap on firmly. 17- Electric Motor mount Using a aluminum motor mounting plate as a template, mark the plywood motor mounting... - Page 10 18- Cowling 1~2mm 2.5x10mm..5 Attach the board or transparent plastic on the side of the fuselage with the adhesive as show. Using a pencil or felt tipped pen trace around the engine head where it meet the cowl. Cut the opening the board Adhesive Board or transparent plastic for the engine head as marked...
-
Page 11: Air Scoop
20- Canopy Sticker 2x6mm screw Instrument panel sticker 21- Air scoop ABS air scoop ABS cover Cut away only the film Cut away only the film BOTTOM VIEW 22- Light Do not use CA glue to much or it will make the ABS light cover white ABS cover (clear) ABS cover... -
Page 12: Control Surface
23- Balance 3.3 ~ 3.5 in. (85 ~ 90mm) Wing center section DO NOT try to fly an out-of-balance model ! Add weight to nose (as show) until the correct balance is achieved. Stick-on weights are available at your local hobby shop and work well for this purpose.
