Solving Problems
172
Using the Measurement Log to Identify Problems
Measurement Logs are saved as CSV (comma separated variable) files.
Follow the steps below to view results in a measurement log file:
1 Copy the measurement log file from the analyzer to your PC. By
default, log files are saved in the folder C:\N4906B\log.
2 Open a spreadsheet application on your PC.
3 Import the measurement log file. If your application has an import
wizard, you may need to indicate that data is delimited with
commas.
4 Once the file has been imported, you may need to resize columns.

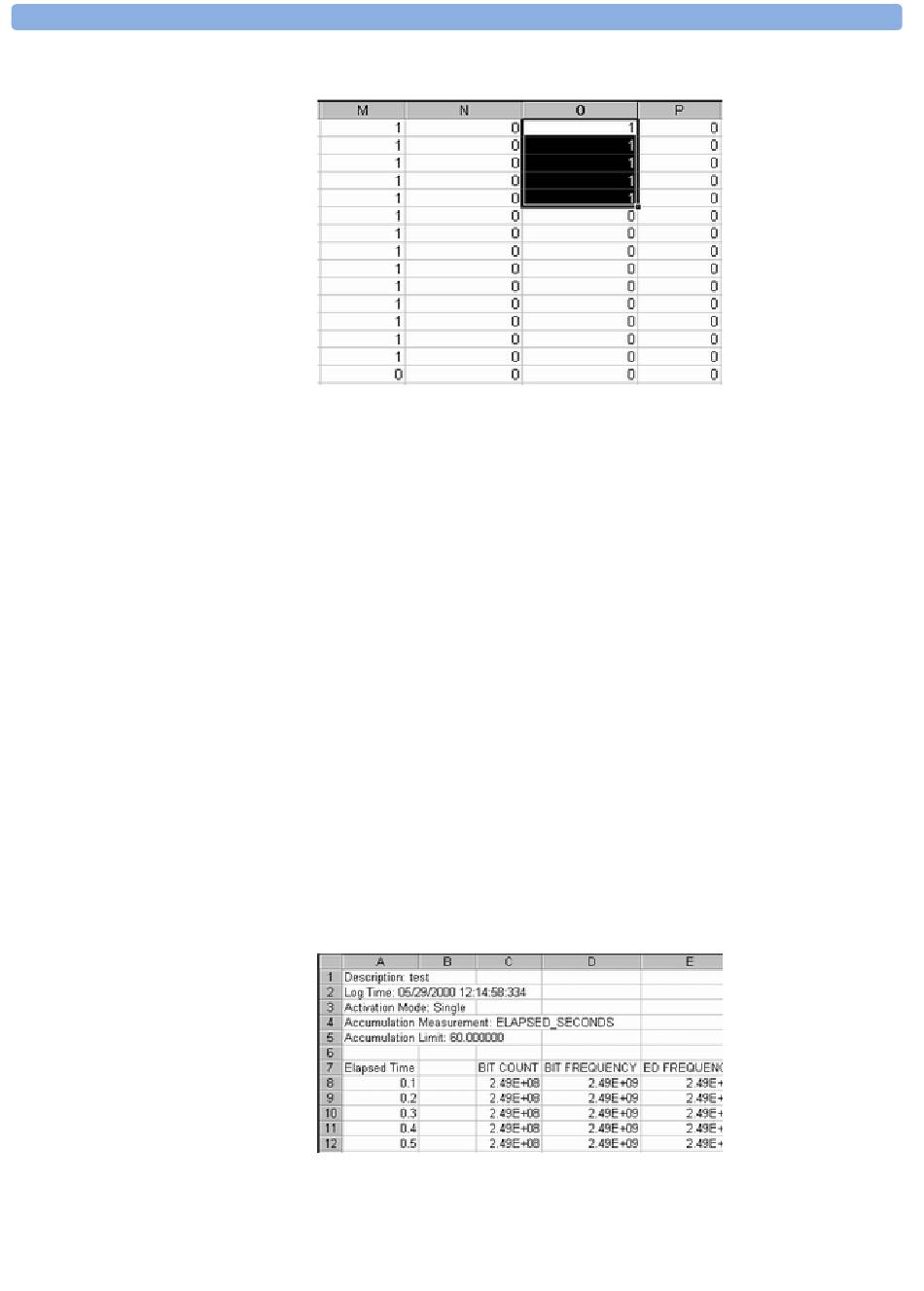

The imported log file should appear similar to the following
example.
NO TE During measurement logging, the Serial BERT logs data in ten-second
intervals. Your log file may be missing up to the last ten seconds of
data. To avoid this condition, accumulate for 10 seconds longer than
desired.
You can view and analyze the following information in the
measurement log file:
Agilent N4906B Serial BERT, User's Guide, October 2005
Measurement Problems
