– Pass/Fail tab
On the Pass/Fail tab, you can specify the conditions that must be
met by the DUT to pass a test. Changes here do not require a new
test run. The data will be newly calculated and the results will be
displayed.
– View tab and Color tab
With the functions on these tabs, you can modify the graphical
display of the results at any time without rerunning the
measurement. This allows you to analyze the results with
different preferences.
3 After you have made your changes on the various tabs, press Apply
to employ the settings without leaving the Properties dialog box. Or
press OK to confirm the modifications and close the Properties
dialog box.
How to Change the Colors
You can customize the colors of the display. This function is common
to all measurements:

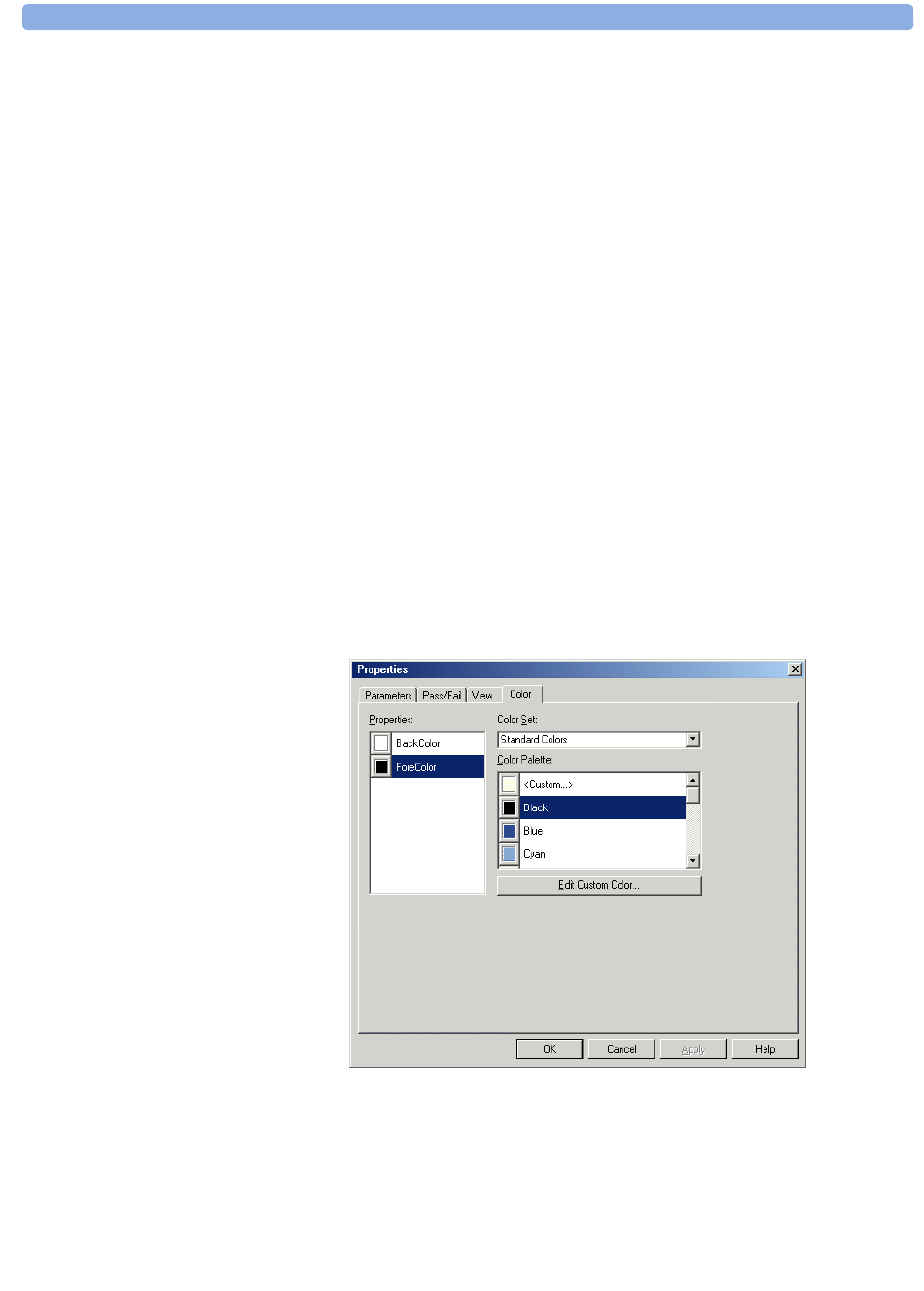

1 In the Properties dialog box, switch to the Colors tab.
Depending on the current measurement type, you can change:
– BackColor: The background color of the display (default is white)
– ForeColor: The foreground color of the numbers and the table
grid (default is black)
