Connecting the DUT
Agilent N4906B Serial BERT, User's Guide, October 2005

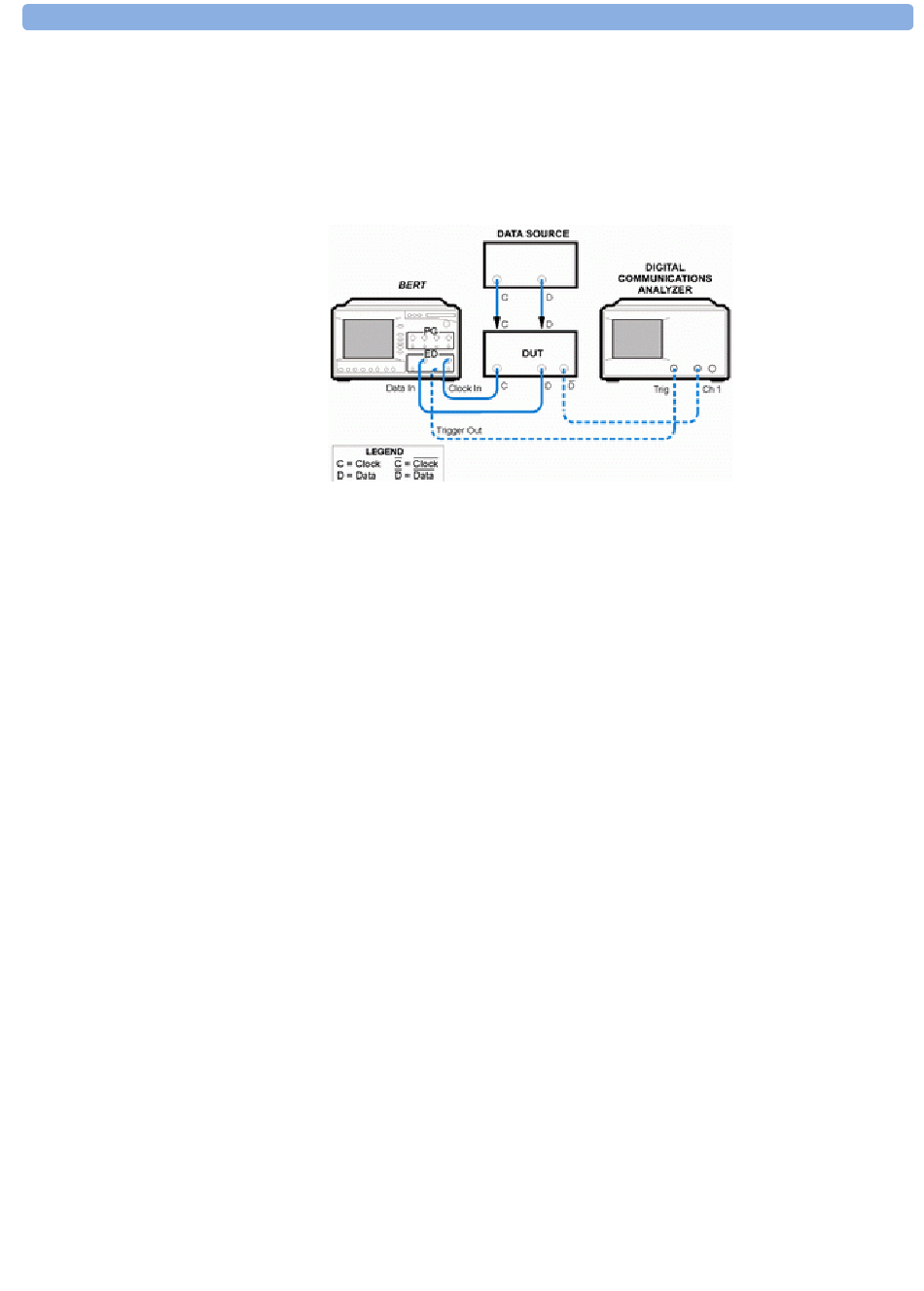

Diagram 8. Connections for an External Data Source
(ED only)
Used when the device is stimulated by another data source. Illustrates
the use of an oscilloscope in addition to the error detector.
NOT E
As in all setups, the pattern sent to the error detector must be the
same as the internal reference pattern of the error detector. Dynamic
patterns and/or patterns with live payloads cannot be used.
NOT E
Diagrams 1 through 8 can use an external clock reference connected to
the Clock In port of the pattern generator, if desired.
Planning the Test
