3 Open the Edit menu (or context menu) once more and select Paste.

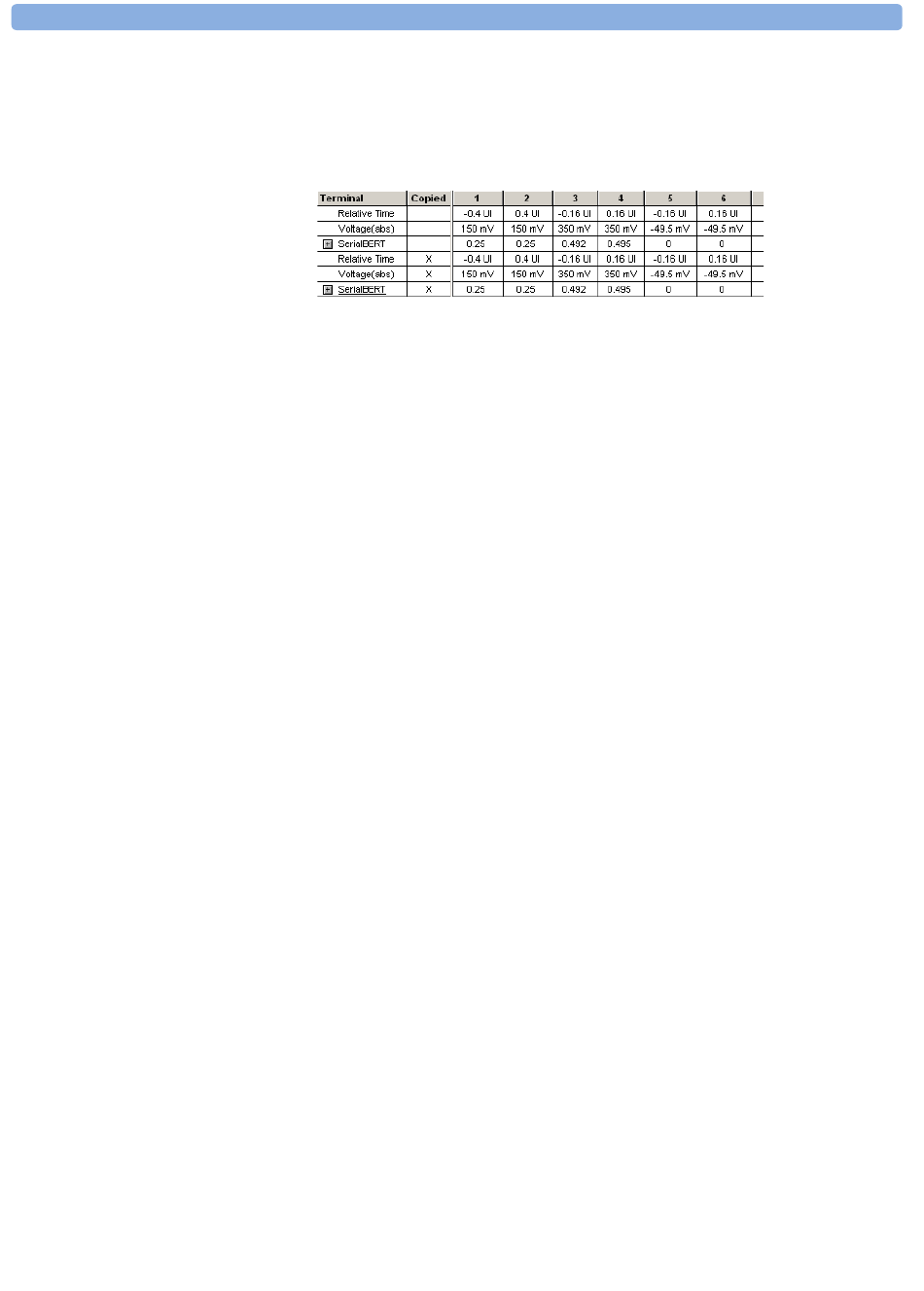

This inserts a copy of the chosen measurement results. For a Fast
Eye Mask measurement, this looks as shown below:
4 Repeat the measurement with modified parameters and observe the
new results.
How to Rename Copied Measurements
To rename a copied measurement for easy distinction:
1 Highlight the copied measurement.
2 Press Enter (or choose Rename from the context menu).
3 Change the name and press Enter.
How to Load Measurements
To load previously saved measurements:
1 Select Load Measurement from the Analysis menu.
2 Use the file dialog box to locate the desired .mcp file and press Open
to load the measurement.
The Analysis panel opens and you can view the measurement.
How to Change Measurement Properties and the
Graphical Display
The various tabs in the Properties dialog box allow you to specify the
parameters for the measurement. See the Reference information for
details.
To modify the measurement properties:
1 Press the Properties button to open the Properties dialog box.
2 Use the different tabs in this dialog box to make the required
settings:
– Parameters tab
The settings made on the Parameters tab define how the data is
collected. If you make changes here, you need to run the
measurement again.
