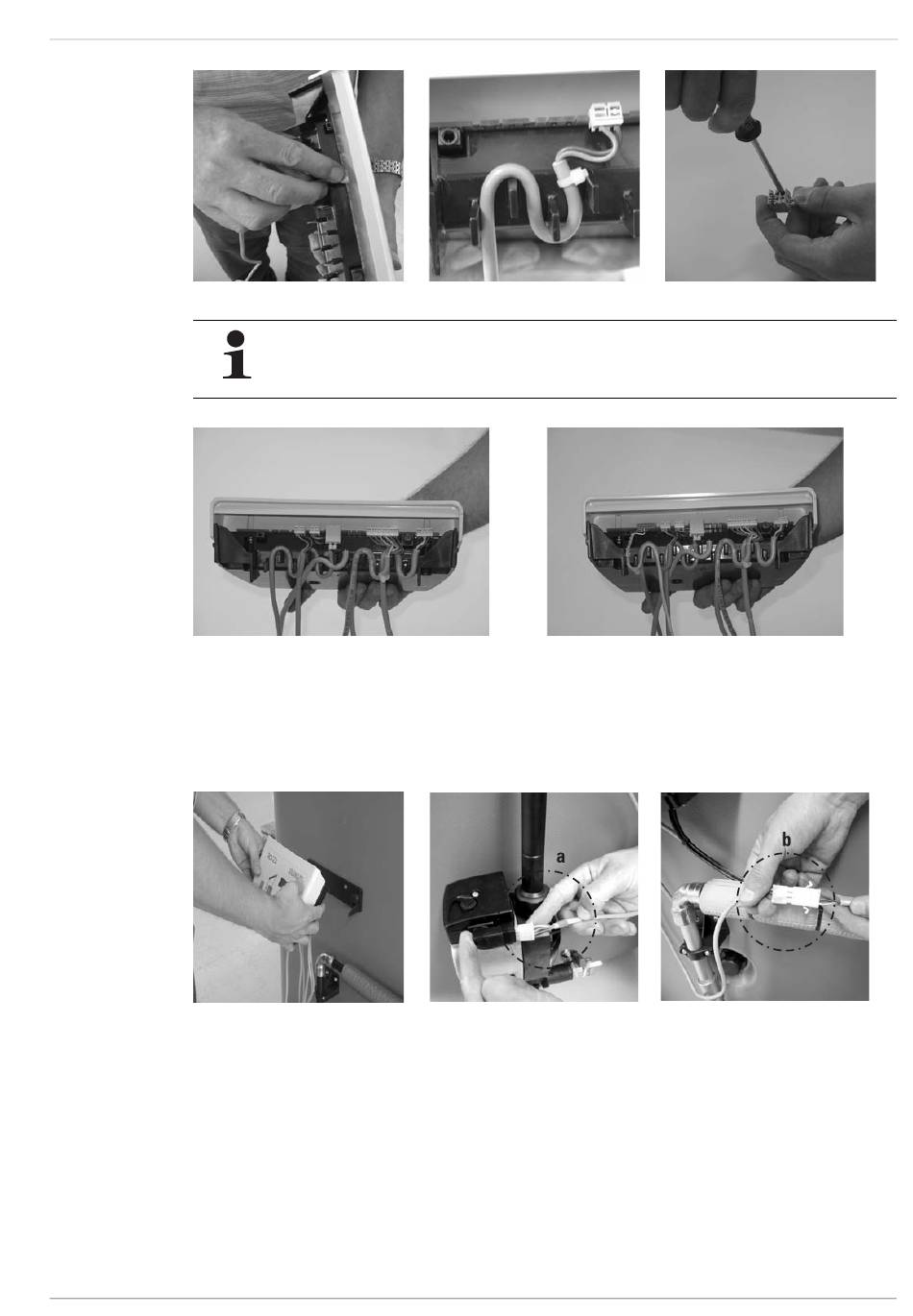

4. Place the control system in the control system retaining brackets from above.
5. Connect the tank circulation pump to the control systems with the cable with the red mark.
6. Connect the control line coming from the solar panel circulation pump to the control systems with the unmarked cable.
Fig. 3-27
7. Lay the cable for the control system along the return line and fix using cable ties.
8. Slide on casing front and align. Slide the casing front under the control system housing to form an even join all around the
control systems.
9. Screw front of casing on both sides to the control systems housing with countersunk screws.
FA ROTEX Solaris RPS3 P2 - 06/2012
Work step 1
Automatic speed control of the Solaris RPS3 P2 control and pump unit only works if a FlowSensor has been
integrated into the system. Otherwise the tank circulation pump will operate at 100 %.
Basic cabling: Storage tank, return flow, solar panel
sensor, pump and mains lines
Work step 4
Fig. 3-23 Work step 2
Fig. 3-26
Fig. 3-28 Work step 5
(see also image 3-17)
3 x
Fig. 3-24 Work step 3
Extended cabling additionally with FlowSensor
Fig. 3-29 Work step 6
(see also image 3-17)
