Hydraulic system connection
Fig. 7-1
FA ROTEX Solaris RPS3 P2 - 06/2012
WARNING!
High temperatures can occur in the solar storage tank. Therefore, sufficient scalding protection must be
included when the hot water system is installed (automatic hot water mixing device).
CAUTION!
ROTEX units can optionally also be fitted with plastic gravity brakes (
maximum operating temperatures of 95 °C. If a heat exchanger is operated at temperatures greater than
95 °C, another gravity brake must be installed in the building.
A selection of diagrams of the most common systems is shown below. The arrangements shown are only
examples, and are no substitute for careful system planning. For more diagrams see the ROTEX home page.

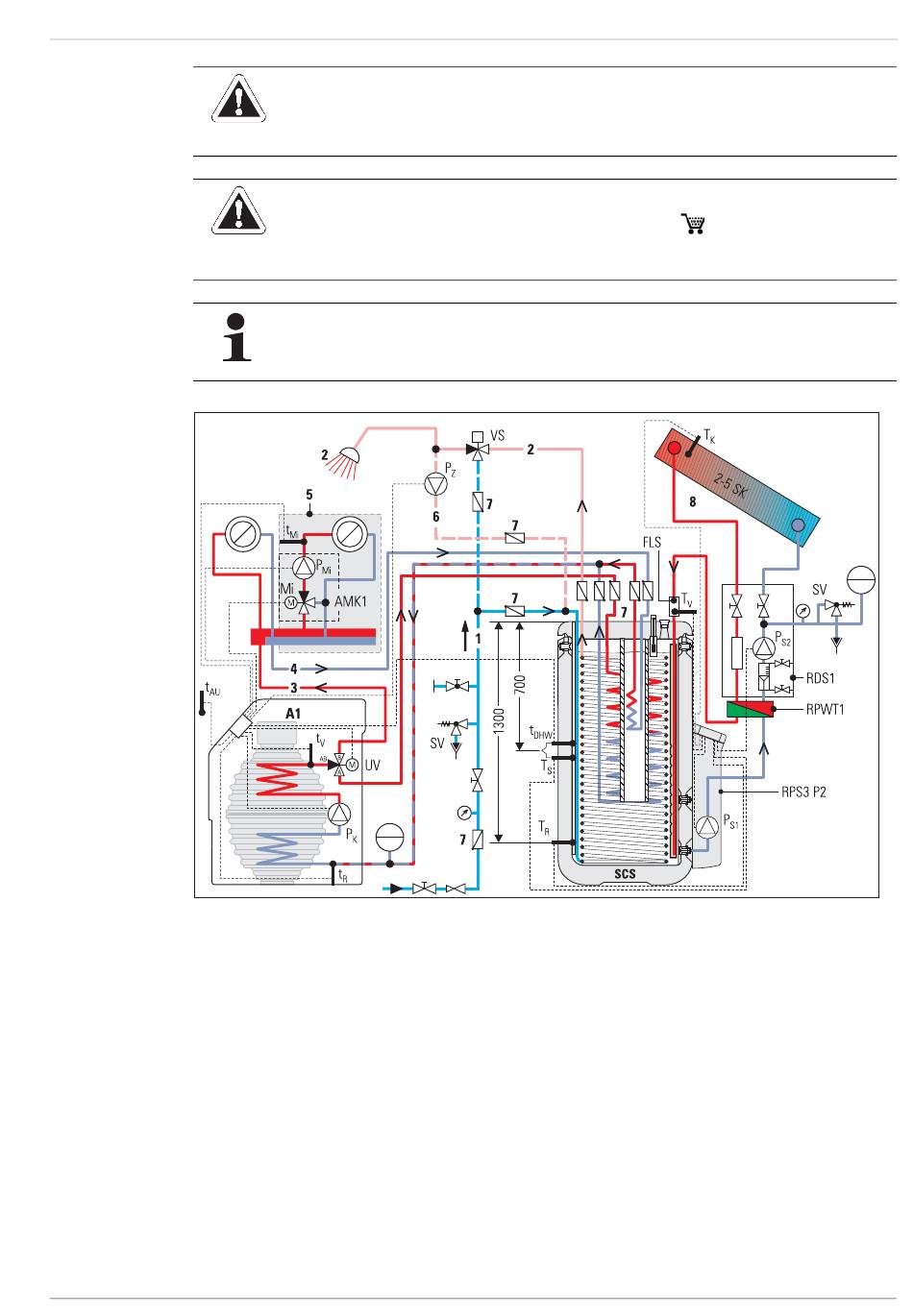

Pressurised solar system with Sanicube Solaris SCS 538/16/0
7
x
Hydraulic system connection
16 50 70). They are suitable for
45
