2.1

Design and components of the solar system

2

Product description

1 Cold water connection pipe
2 Drinking water (hot) distributor
3 Stainless steel corrugated heat exchanger for
domestic water (hot)
4 Corrugated stainless steel pipe for heat exchanger
to heat generator (storage tank charging)
5 Immersion sleeve for storage tank temperature
sensor
6 Fill level display
7 Filling and draining cock (customer)
(accessory 16 41 17)
8 Differential temperature control
9 Solar return line (bottom of the solar panel)
10 Solar panel field
11 Solar flow line (top of solar panel)
12 Thermostatic mixer valve (consumer-side
scalding protection)

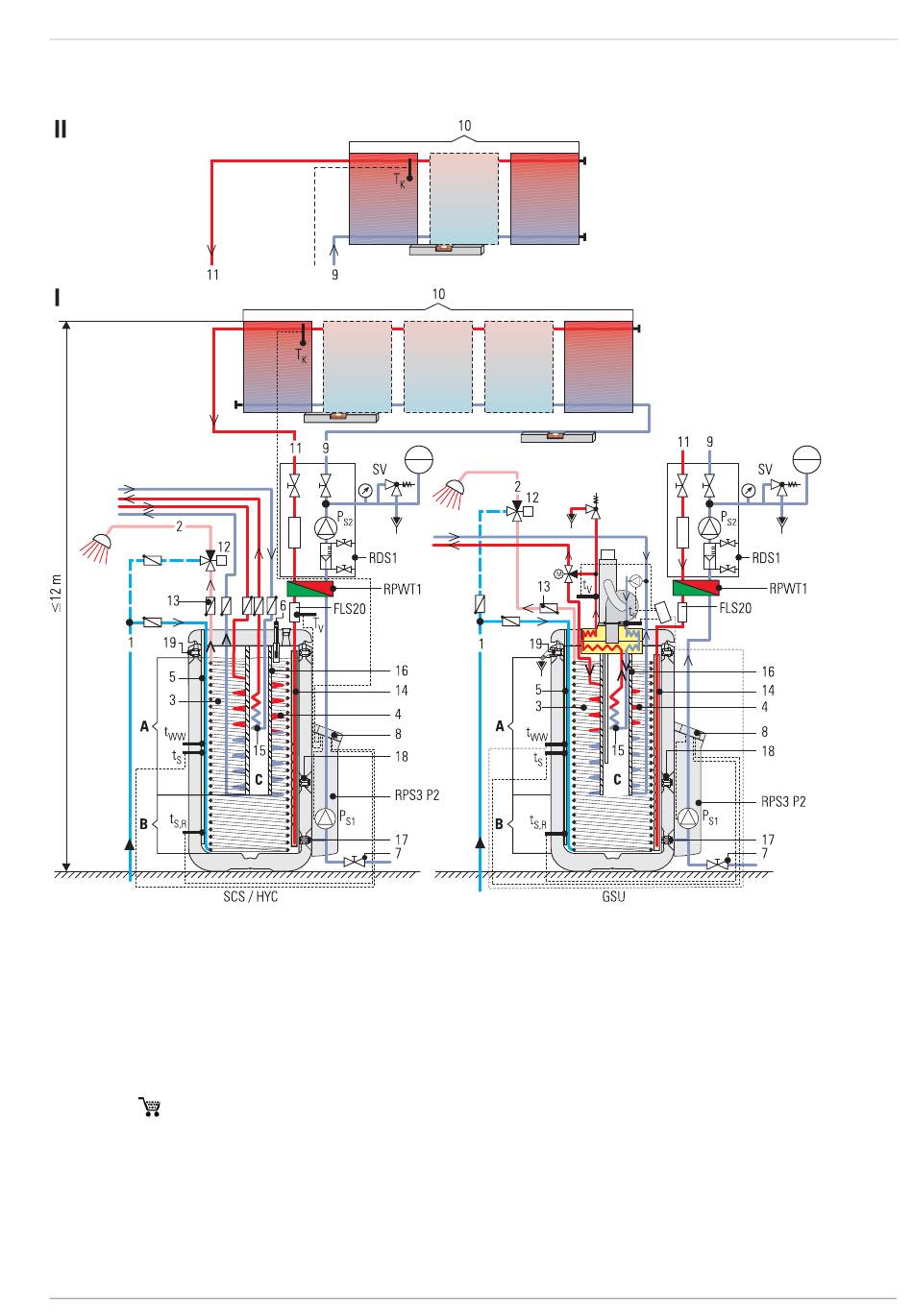

Fig. 2-1 Standard installation of a ROTEX solar system (ROTEX recommends the two-way connection)
FA ROTEX Solaris RPS3 P2 - 06/2012
13 Gravity break*
14 Solar flow layered pipe
15 Corrugated stainless steel heat exchanger for
heating support
16 Thermal insulation of stainless steel heat
exchanger for heating support
17 Connection solar return flow
18 Immersion sleeve for solar return flow
temperature sensor
19 Safety overflow connection
I Double-sided connection for 2 to 5 solar panels
II Same-side connection for 2 or max. 3 solar
panels (not for inroof)
A Zone with water for domestic use
B Solar zone
2 x Product description
C Heating support zone
FLS20
Solaris FlowSensor (flow metering)*
P Tank circulation pump
S1
P Solar panel circulation pump
S2
RDS1 Pressure station
RPS3 P2
Control and pump unit
RPWT1
Plate heat exchanger
t Solar panel temperature sensor
K
t Solar flow temperature sensor
V
t Solar return flow temperature sensor
S,R
t Domestic hot water temperature sensor
WW
* Accessories
