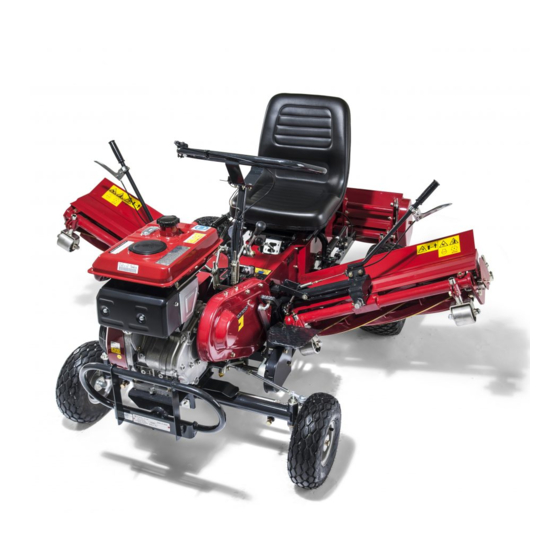

Baroness LM180C Owner's Operating Manual

3-unit reel mower
Hide thumbs Also See for LM180C:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Owner's Manual

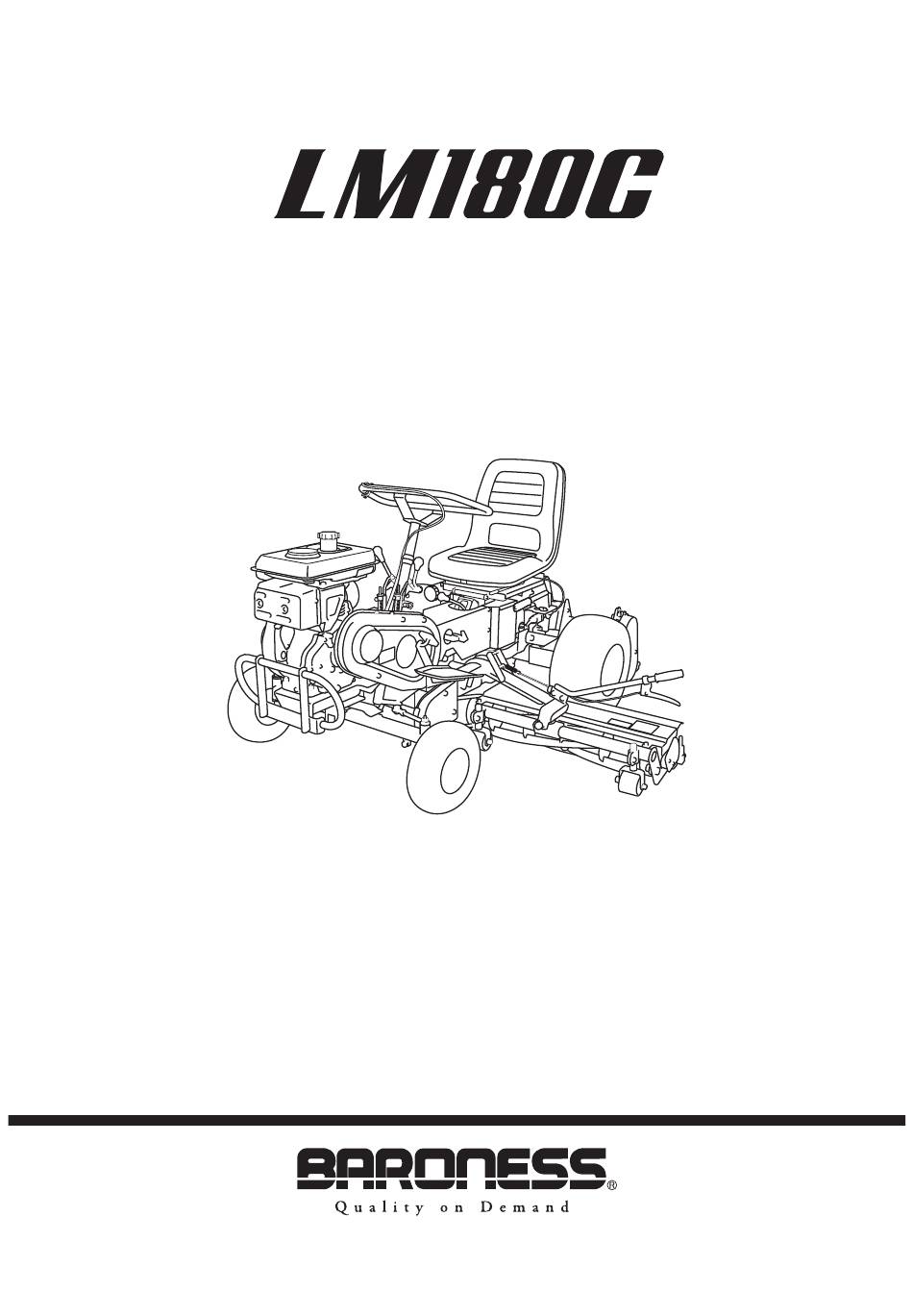

3-Unit Reel Mower
Owner's Operating Manual
Serial No.
LM180C：20001-
"Required reading"
Read this manual and the Owner's Manual for the engine before using the machine.
Original Instructions Ver.1.4

Advertisement

Table of Contents
loading

Related Manuals for Baroness LM180C

Summary of Contents for Baroness LM180C

  • Page 1 3-Unit Reel Mower Owner's Operating Manual Serial No. LM180C：20001- "Required reading" Read this manual and the Owner's Manual for the engine before using the machine. Original Instructions Ver.1.4...
  • Page 2 LM180C Greeting Thank you for purchasing the Baroness machine. This manual explains proper handling, adjustment, and inspection of your machine. Prior to use, carefully read this manual to thoroughly understand the contents for safe and correct operation. We hope you will use the machine safely, and take advantage of its best performance.
  • Page 3 The information described in this manual is subject to change for improvement without prior notice. When replacing parts, be sure to use genuine Baroness parts or parts designated by Kyoeisha. Note that the Baroness product warranty may not apply to defects caused by the use of parts from other companies.
  • Page 4 LM180C Introduction Purpose This machine is intended for cutting turf grass at golf courses. Do not use this machine in any way other than its intended purpose, and do not modify the machine. Operating this machine for other purposes and modifying it may be very dangerous and may cause damage to the machine.

  • Page 5: Table Of Contents

    LM180C Contents Safety .............. Page 1-1 Safe Operating Practices .......Page 1-2 Disposal ............Page 2-1 Recycle and Waste Disposal ......Page 2-2 Product Overview .......... Page 3-1 Specifications ..........Page 3-2 Names of Each Section ......... Page 3-3 Safety Signs and Instruction Signs ....Page 3-5 Handling Instructions ........
  • Page 6 LM180C Contents...

  • Page 7: Safety

    LM180C Safety Safe Operating Practices ...... Page 1-2 Training ..........Page 1-2 Preparation ..........Page 1-2 Operation ..........Page 1-3 Maintenance and storage ...... Page 1-4 Page 1-1...

  • Page 8: Safe Operating Practices

    LM180C Safety Failure to adequately follow these safety Never allow children or people unfamiliar precautions may cause an accident resulting in with these instructions to use or service the injury or death. machine. Local regulations may restrict the age of the...
  • Page 9 LM180C Safety If fuel is spilled, do not attempt to start the Never drive the machine on a slope with engine but move the machine away from an angle of gradient that is greater than the area of spillage and avoid creating any...
  • Page 10 LM180C Safety When using any attachments, never direct Never store the equipment with fuel in the discharge of material toward bystanders nor tank inside a building where fumes may allow anyone near the machine while in reach an open flame or spark.

  • Page 11: Disposal

    LM180C Disposal Recycle and Waste Disposal ....Page 2-2 About Recycle ........Page 2-2 About the Waste disposal ...... Page 2-2 Page 2-1...

  • Page 12: Recycle And Waste Disposal

    LM180C Disposal Recycle and Waste Disposal About Recycle Recycling battery etc. is recommended for environmental conservation and economical use of resources. It may be required by local laws. About the Waste disposal Make sure that waste generated when servicing or repairing the machine is disposed of in accordance with local regulations.

  • Page 13: Product Overview

    LM180C Product Overview Specifications ........Page 3-2 Specifications .........Page 3-2 Sound pressure level ......Page 3-3 Sound power level ......... Page 3-3 Vibration level ........Page 3-3 Names of Each Section ......Page 3-3 Serial Number Plate .......Page 3-4 Specification Decal ........ Page 3-4 Noise Emission Decal ......Page 3-4...

  • Page 14: Specifications

    LM180C Product Overview Specifications Specifications Type LM180C Total length 215 cm 　 During 208 cm operation Total width Dimensions During 185 cm transport Seat 107 cm Total height Steering wheel 102 cm Total weight (empty fuel tank) 383 kg Minimum turning radius...

  • Page 15: Names Of Each Section

    LM180C Product Overview Sound pressure level Names of Each Section Sound pressure level This machine was confirmed to have a continuous A-weighted sound pressure level of 93dB by measuring identical machines in accordance with the procedure specified in ISO 5395-1:2013.

  • Page 16: Serial Number Plate

    LM180C Product Overview Serial Number Plate Year of Manufacture Decal The serial number plate indicates the model (For Europe) and serial number of the machine. The year of manufacture decal indicates the year when this machine was manufactured. YEAR OF...

  • Page 17: Safety Signs And Instruction Signs

    If they are damaged, become dirty, or peel off, replace them with new ones. Part numbers for decals that need to be replaced are listed in the parts catalog. Order them from a Baroness dealer or Kyoeisha. Positions of Safety Decals and Instruction Decals...

  • Page 18: Safety Signs And Instruction Signs

    LM180C Product Overview Explanation about Safety Decals and Instruction Decals LM180C-1001Z0 Sticker, operation 　 Warning Read the manual. 　 Danger Danger Flying objects - All persons other than the operator must keep a safe distance from the machine. 　 qigqnx-009...
  • Page 19 LM180C Product Overview R073-20057-60 Decal, engine alert Read the manual. Exhaust gas is poisonous. Do not operate in an unventilated room or enclosed area. CHECK FOR LEAKAGE FROM HOSES AND FITTINGS. Stop the engine before refueling. SHUT OFF FUEL VALVE WHEN ENGINE IS NOT IN USE.
  • Page 20 LM180C Product Overview Page 3-8 Safety Signs and Instruction Signs...

  • Page 21: Handling Instructions

    LM180C Handling Instructions Inspection Before Use ......Page 4-2 Parking Brake Lever ......Page 4-16 Travel of Machine ........ Page 4-16 Reel Cutter (Cutting Cylinder) and Bed Knife (Bottom Blade) ...... Page 4-2 Moving the Machine ......Page 4-16 Cover ............. Page 4-2 Cutting Work ........

  • Page 22: Inspection Before Use

    LM180C Handling Instructions Make sure that there is no wear or Inspection Before Use deterioration of the reel cover and all other covers. Be sure to perform an inspection before you Make sure that there is no damage to the start using the machine so that you will be able reel cover and all other covers.

  • Page 23: Roller

    LM180C Handling Instructions Roller Cleaning of Air Cleaner For details on handling the engine, please Inspection of Rollers refer to the separate Engine Handling Manual. Bearing wear due to frequent use or bearing A contaminated air cleaner element may damage caused by water infiltration may cause malfunction of the engine.

  • Page 24: Wire

    LM180C Handling Instructions Wire Engine Oil Inspection of Wire Inspection of Engine Oil Make sure that the wire is not cracked or For details on handling the engine, please damaged. refer to the Engine's Owner's Manual. If the wire is cracked or damaged, replace it Important with a new one immediately.
  • Page 25 LM180C Handling Instructions Filling of Engine Oil Change of Engine Oil For details on handling the engine, please For details on handling the engine, please refer to the Engine's Owner's Manual. refer to the separate Engine Operating Manual. Important Warning Do not fill too much engine oil.

  • Page 26: Transmission

    LM180C Handling Instructions Screw the oil level gauge firmly. Through the oil filling port, fill the transmission oil. Check the oil level again 10 to 20 minutes after filling the oil. gui678-004 Change of Engine Oil_001 Oil level gauge 4sr81t-001...

  • Page 27: Fuel

    LM180C Handling Instructions Pour new transmission oil through the oil Warning filling port. Keep fire away while refueling. The transmission oil quantity is 2.0 dm (2.0 Do not smoke while refueling. liters). Make sure that the transmission oil level is filled up to the tip of the oil level opening.

  • Page 28: Tightening Torques

    LM180C Handling Instructions Tightening torques Standard tightening torques Bolts and Nuts Important A number of bolts are used in each part of this machine. Be sure to re-tighten the bolts and nuts, because they may be loosened at the earlier stage of the use.
  • Page 29 LM180C Handling Instructions Heat-treated bolt Strength classification 8.8 Strength classification 10.9 Nominal diameter 10.9 tib3yb-002 tib3yb-003 kgf-cm lb-in kgf-cm lb-in 5 - 7 50.99 - 71.38 44.26 - 61.96 7 - 10 71.38 - 101.97 61.96 - 88.51 8 - 11 81.58 - 112.17...

  • Page 30: Principal Tightening Torques

    LM180C Handling Instructions Principal tightening torques Tightening Torque by Model LM180C Tighten the following bolts and nuts at the torque specified in the table. For thread locking adhesive, apply a mild to high-strength thread locker (ThreeBond 1322 or equivalent anaerobic sealant).

  • Page 31: Adjustment Before Operating

    LM180C Handling Instructions Insert two or three strips of newspaper into Adjustment Before Operating the space between the reel cutter (cutting cylinder) and the bed knife (bottom blade) at Adjustment of Seat an angle of 90 degrees. Then, rotate the reel...

  • Page 32: Procedure To Start / Stop Engine

    LM180C Handling Instructions Make sure that the parking brake is applied. Adjustment of Cutting Height Make sure that the traveling clutch lever and reel rotation lever are set to the "OFF" Important position. The front wheel is provided to prevent the reel...

  • Page 33: Operation Of Each Section

    LM180C Handling Instructions Safety Mechanisms Diff-lock pedal Brake pedal This machine has the safety device for Traveling clutch lever starting / stopping engine. Traveling clutch "OFF" As for starting the engine, the safety device Traveling clutch "ON" prevents the engine from starting unless it...

  • Page 34: Lifting Lever

    LM180C Handling Instructions Lifting lever Rear Mower Unit Left and Right Mower Units Caution Before raising or lowering the mower units, Caution make sure that there are no people around Before raising or lowering the mower units, the machine. make sure that there are no people around the machine.

  • Page 35: Operation Of Change Lever

    LM180C Handling Instructions Operation of Change Lever Caution Do not change the lever position during traveling. Otherwise, the transmission may be damaged. The change lever is a transmission device. It was adapted from a direct change system. To change the speed, park the machine on...

  • Page 36: Travel Of Machine

    LM180C Handling Instructions Parking Brake Lever Cutting Work Cutting Operation Caution Be sure to release the parking brake before Caution driving. Cutting work must be performed at an It may result in the brakes malfunctioning. appropriate speed for the site and location.

  • Page 37: Maintenance

    LM180C Maintenance Maintenance Precautions ..... Page 5-2 Maintenance Schedule ......Page 5-3 Specified Values ........Page 5-4 Jacking up the machine ......Page 5-5 About the Jacking up the machine ..Page 5-5 Jack-up Portion ........Page 5-5 Greasing ..........Page 5-6 About Greasing ........Page 5-6...

  • Page 38: Maintenance Precautions

    Use tools appropriate for each maintenance operation. Caution For the safe and best performance of your machine, use Baroness genuine parts for replacement and accessories. Please note that our product warranty may be void if you use non-genuine parts for replacement or accessories.

  • Page 39: Maintenance Schedule

    LM180C Maintenance Maintenance Schedule Follow the maintenance schedule below. ○・・・Inspect, adjust, supply, clean ●・・・Replace (first time) △・・・Replace Maintenance Item Remarks Tightening the parts ○ 　 　 　 　 　 　 　 　 　 　 　 　 　 　 Fuel ○ 　 　 　 　 　 　 　 　 　 　 　 　 　...

  • Page 40: Specified Values

    LM180C Maintenance Maintenance Item Remarks Oil leakage ○ 　 　 　 　 　 　 　 　 　 　 　 　 　 　 Transmission oil 50hrs (first time) ○ 　 　 　 ● 　 　 　 　 　 △ 　 　 　...

  • Page 41: Jacking Up The Machine

    LM180C Maintenance Jacking up the machine Jack-up Portion 　 Front axle, center About the Jacking up the machine Front axle, right Front axle, left Warning Transmission case, lower When replacing a tire or beginning any other Transmission axle case, left...

  • Page 42: Greasing

    LM180C Maintenance Transmission case, lower Greasing Points Grease nipples are installed in the following locations. Add grease every 50 hours of operation. rwyt62-015 Jack-up Portion_005 Transmission axle case, left rwyt62-016 Jack-up Portion_006 Transmission axle case, right 8bq62b-055 Greasing Points_001 No. of 　...
  • Page 43 LM180C Maintenance Front wheels Mower frame There is one point each on the left and the There is one point each on the left and the right wheel. right mower units. 8bq62b-056 8bq62b-059 Greasing Points_002 Greasing Points_005 Front wheel front pin...
  • Page 44 LM180C Maintenance Handle tension Rear roller Supply automobile transmission gear oil #90 There is one point each on the left and the every 50 hours of operation. right of each unit. 8bq62b-062 8bq62b-066 Greasing Points_008 Greasing Points_012 Mower tension 8bq62b-063...

  • Page 45: Back Lapping Of Reel Cutter (Cutting Cylinder)

    (when you face the mower unit from the left) newspaper, Abrasive [Back lapping powder by hand to check the sharpness. mixed with oil; or gel compound (Baroness Check the sharpness at entire range (three genuine abrasive)], Brush, Socket (opposite or four points from left edge to right one) of side 27).

  • Page 46: Maintenance (Main Body)

    (Never apply to Refer to the Tightening Torque table. blunt areas.) Note that the Baroness product warranty may not apply to defects caused by incorrect or Idle the machine for a while, and then switch overtorque tightening.

  • Page 47: Adjustment Of Belt Tension

    Caution Traveling clutch Reel rotation lever Refer to the Tightening Torque table. Left and Right Mower Units Note that the Baroness product warranty may Transmission not apply to defects caused by incorrect or overtorque tightening. Rear mower tension Rear Mower Unit...
  • Page 48 LM180C Maintenance Reel Rotation Lever 1 mm Loosen the adjustment bolt, then change the length of the rod. Adjust the clearance between the rod- tension metal fitting and the collar to be 5mm, when the traveling clutch lever is engaged.
  • Page 49 LM180C Maintenance Tighten adjusting nut A and make sure that Rear Mower Tension the rod is fixed securely. Loosen adjusting nut A. Tighten adjusting nut B, then change the length of the rod. Lower the rear mower unit on a level...

  • Page 50: Adjustment Of Parking Brake

    LM180C Maintenance Adjustment of Parking Brake Adjustment of Brake If the parking brake is not effective enough If the brake is not applied effectively even if when you pull the parking brake lever, adjust you depress the pedal up to the stopper, adjust the brake wire.

  • Page 51: Adjustment Of Diff-Lock Wire

    LM180C Maintenance Adjustment of Mower Stopper Brake pedal Pedal stopper Lower the left and right mower units, then Parking brake lever engage the reel rotation lever. Lock nut Loosen the nut, then adjust the position of Brake rod (front) the wire adjustment bracket so that the...

  • Page 52: Long-Term Storage

    LM180C Maintenance Adjustment of Wire to Hook Mower Wire to hook the left / right mower Loosen the nuts and move the wire adjustment metal fitting toward the outside of the machine to increase the wire tension. Without gripping the lever, raise the right...
  • Page 56 Head Office 1-26, Miyuki-cho, Toyokawa, Tel : (0533) 84 - 1390 Fax : (0533) 89 - 3623 Aichi-Pref. 442-8530 Japan. LM180C--UM--GBZ/18E-00-S.K E02[LM180_EU02]...
