3.5 Workpiece carrier

1. Check that the springs of the pins located under the carrier are working properly.
2. Check that no part goes over the lower surface of the workpiece carrier.

4 MAINTENANCE

General visual check
Approximately every 500 hours, check the following points to ensure the proper functioning of the
transfer system:

4.1 Belts wear

Regularly verify visually the state of the belt and especially the welding area.

4.2 Passageways of workpiece carriers

The friction of the pins while operating can make some marks appear. Those marks may over the
long term require the part replacement.

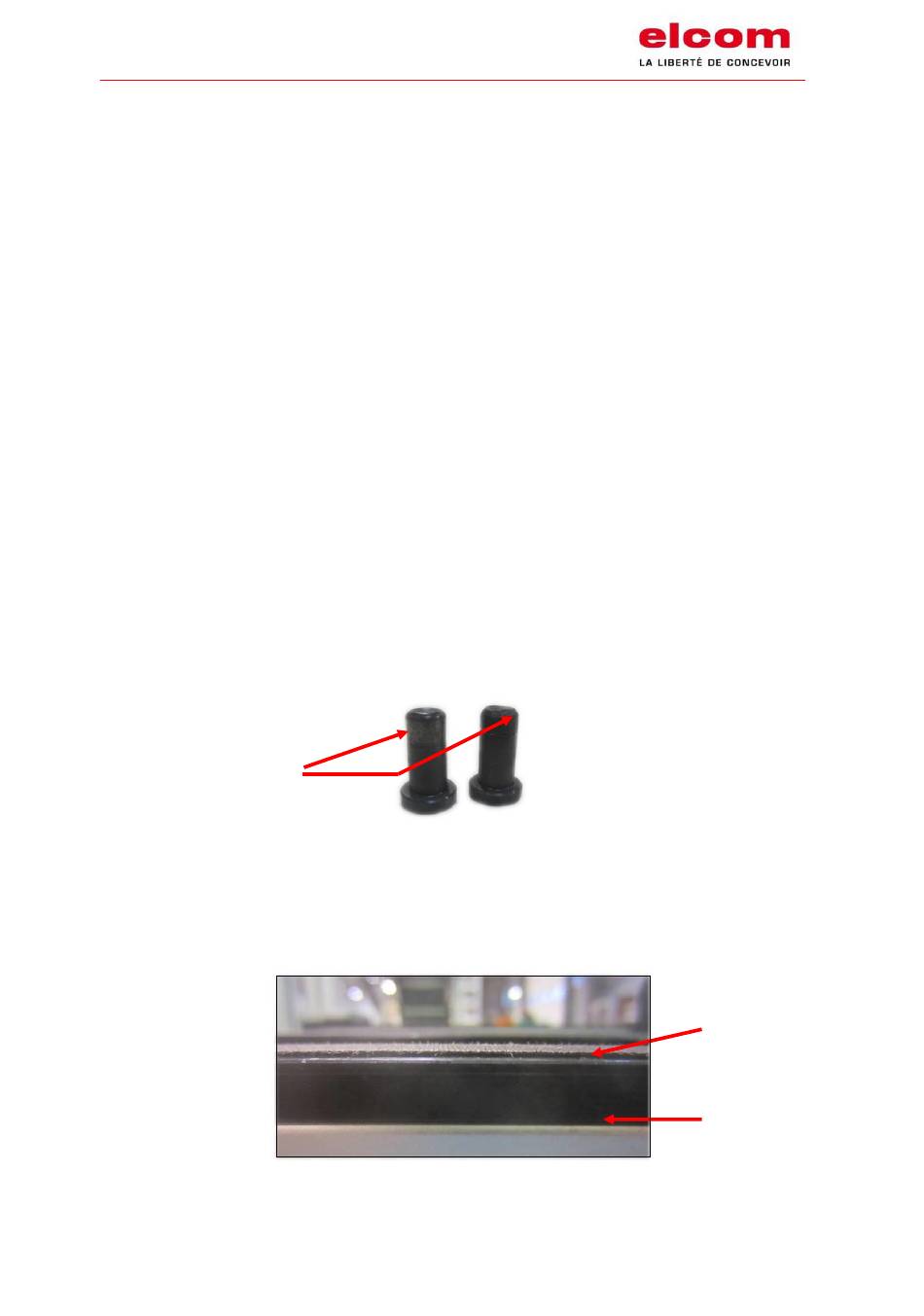

4.3 Pins

Pins are sensitive to wear, especially if the load is heavy. Wear can be noticed as soon as a loss of
efficiency in the guiding of the workpiece carrier occurs.
Wear area of the pins

4.4 Wear of the belt guide

Belt guide must be replaced as soon as wear marks or friction on the belt start to appear.
I02-118 User manual & maintenance guide
of TLM 1000
Belt
Belt guide
Version 04
(translation of the original manual)
Page 5 sur 25
